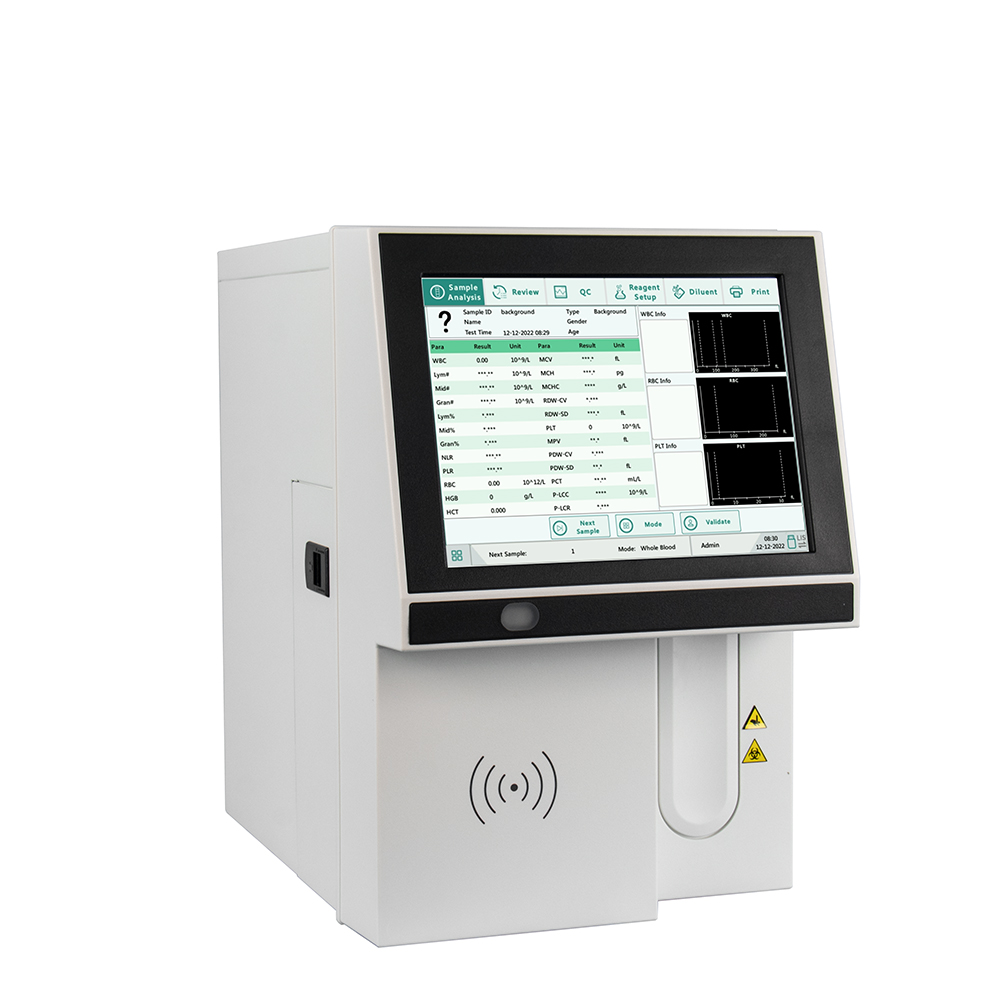

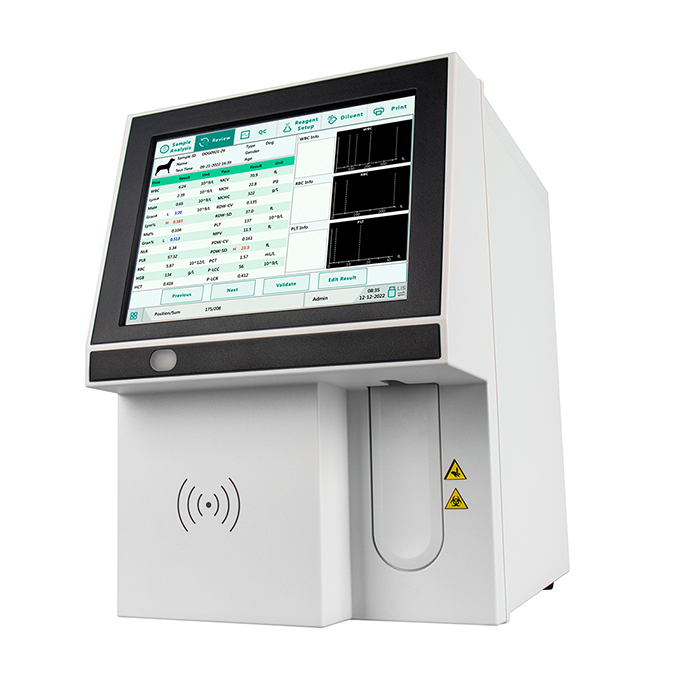

Parameter Document for MSLHAS01 Fully Auto 3-Part Veterinary Hematology Analyzer
I. Basic Information
- Product Model: MSLHAS01
- Product Type: Fully Auto 3-Part Veterinary Hematology Analyzer
II. Core Testing Parameters
- Number of Testing Parameters: 24 parameters + 3 histograms
- Specific Testing Parameters: White Blood Cell (WBC), Neutrophil Count (Neu#), Lymphocyte Count (Lym#), Granulocyte Count (Gran#), Neutrophil Percentage (Neu%), Lymphocyte Percentage (Lym%), Granulocyte Percentage (Gran%), Red Blood Cell (RBC), Hemoglobin (HGB), Hematocrit (HCT), Mean Corpuscular Volume (MCV), Mean Corpuscular Hemoglobin (MCH), Mean Corpuscular Hemoglobin Concentration (MCHC), Red Blood Cell Distribution Width - Standard Deviation (RDW-SD), Red Blood Cell Distribution Width - Coefficient of Variation (RDW-CV), Platelet (PLT), Mean Platelet Volume (MPV), Platelet Distribution Width - Standard Deviation (PDW-SD), Platelet Distribution Width - Coefficient of Variation (PDW-CV), Plateletcrit (PCT), Platelet Large Cell Ratio (P-LCR), Platelet Large Cell Count (P-LCC), Neutrophil-to-Lymphocyte Ratio (NLR), Platelet-to-Lymphocyte Ratio (PLR)
III. Performance Indicators
(I) Precision (CV)
| Parameter |
Precision Range (Including Reference Interval) |
| WBC |
≤3.0% (Reference Interval: 6.0-15.0) ×10³/L |
| RBC |
≤3.0% (Reference Interval: 3.5-10.0) ×10¹²/L |
| HGB |
≤2.0% (Reference Interval: 110.0-180.0) g/L |
| MCV |
≤1.0% (Reference Interval: 60.0-95.0) FL |
| PLT |
≤4.0% (Reference Interval: 150.0-500.0) ×10⁹/L |
(II) Linearity Range
| Parameter |
Linearity Range |
| WBC |
(1.00-200.0) ×10⁹/L |
| RBC |
(0.30-17.00) ×10¹²/L |
| HGB |
(20.0-250.0) g/L |
| PLT |
(20-5000) ×10⁹/L |
IV. Testing Efficiency
- Testing Throughput: 60 samples per hour
V. Calibration and Quality Control
- Calibration Method: Manual calibration + Auto calibration
- Quality Control: 3-level QC, supporting LJ graph and XB graph
VI. Applicable Species
Supports 19 animal species: Cat, Dog, Rabbit, Sheep, Goat, Cattle, Horse, Rat, Mouse, Llama, Deer, Musk deer, Monkey, Tiger, Dolphin, Pig, Camel, Ferret, Panda
VII. Reagent Configuration

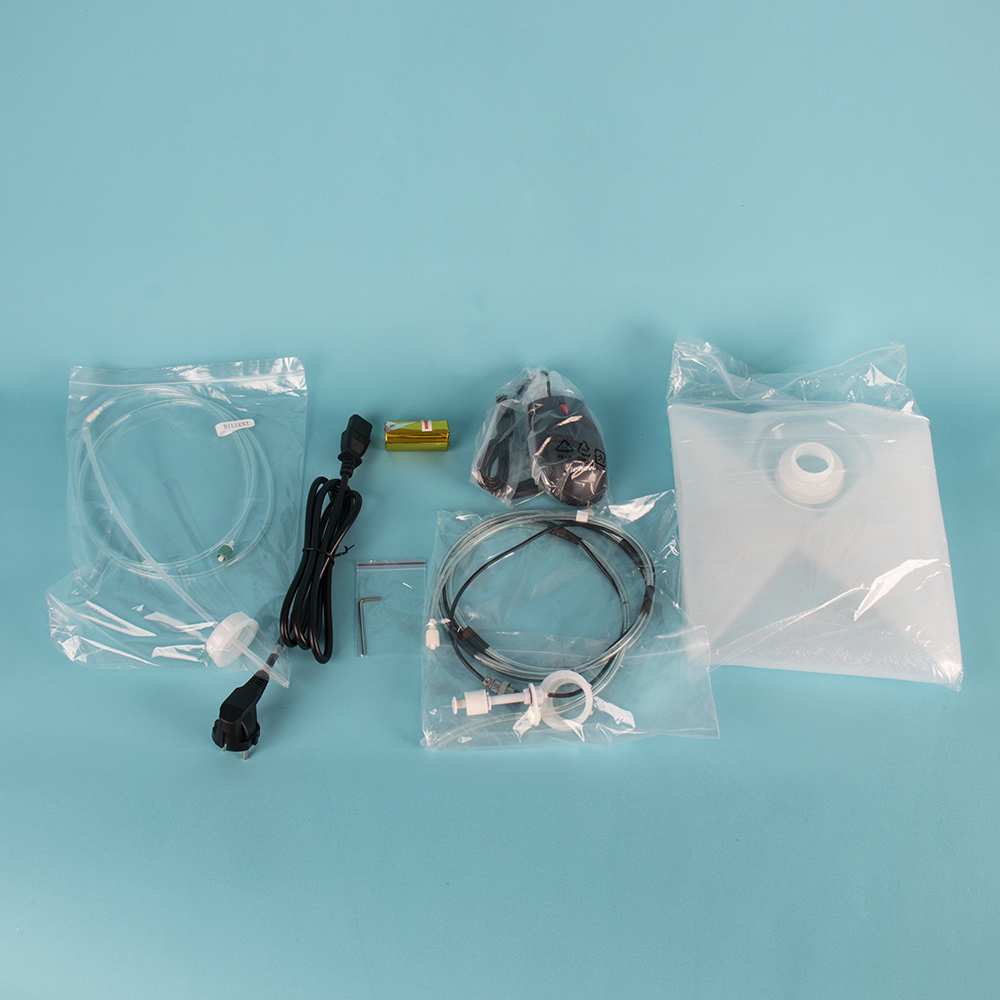

- Number of Reagents: 2 reagents (1 Lyse + 1 Diluent) + 1 probe cleanser for maintenance
VIII. Interface and Data Compatibility

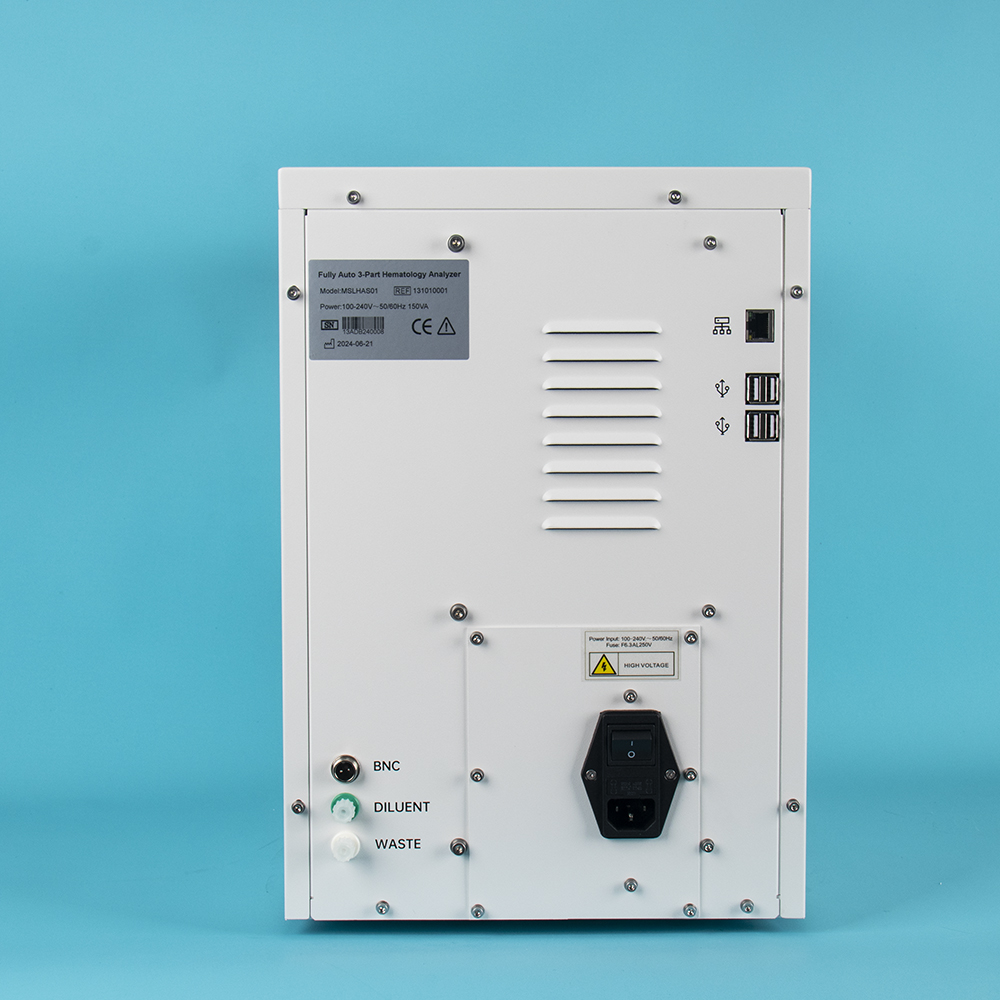

- Interface Type: 4 USB ports, 1 LAN port, supporting WiFi adapter
- Protocol Compatibility: Supports HL7 protocol and Bi-directional LIS
IX. Data Storage
- Storage Capacity: Can store 600,000 sample results with histograms
X. Hardware Specifications
- Power Supply: AC 100-240V, 50/60±1Hz
- Dimension: 315mm×416mm×411mm (L×W×H)
- Weight: 26KG

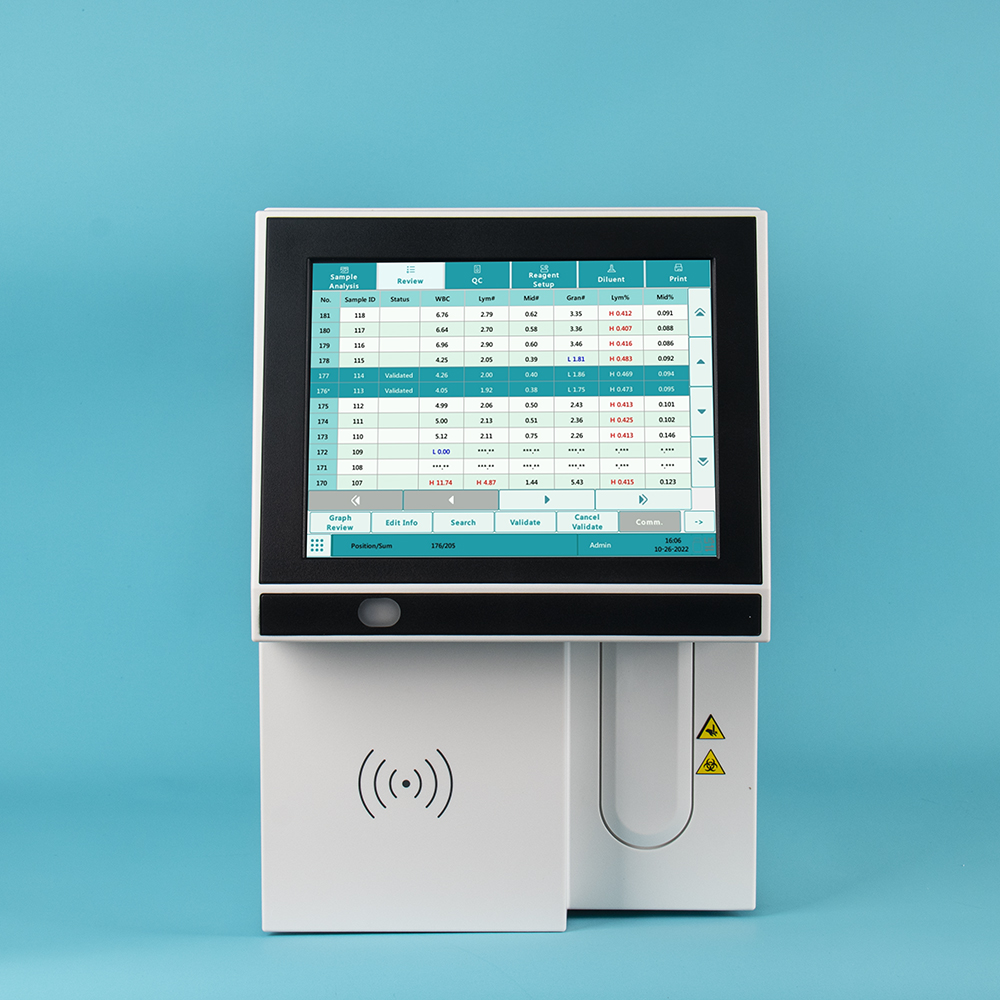

- Display Screen: Built-in 10.4-inch color touch screen
XI. Sample Requirements
- Sample Volume: 10μl, minimizing animal injury to the greatest extent
XII. Intelligent Functions
- Smart Counting Mode: Smart WBC mode, Smart PLT mode, Smart WBC/PLT mode, specially designed for low-value samples
