Product Name & Model

• MSLHAS18
• Hematology Analyzer MSLHAS18

Technical Specifications & Functions

• Built-in reagent
• Large storage capacity (up to 50,000 sample messages including histograms and patient information)
• WBC 5-part differentiation
• 25 reportable parameters
• 2 histograms (for RBC and PLT)
• 2 scattergrams (for Size and Diff)
• Whole blood mode and predilute mode
• Sheath fluid + Tri-angle laser scatter + Chemical dye + Flow cytometry technology
• Dedicated optical counting channel
• 10.4-inch color touch screen (resolution: 1024x768, 10° tilt for visual observation)
• Testing speed: ≥55 samples per hour
• Sample volume: 28μL (whole blood mode), 20μL (predilute mode)

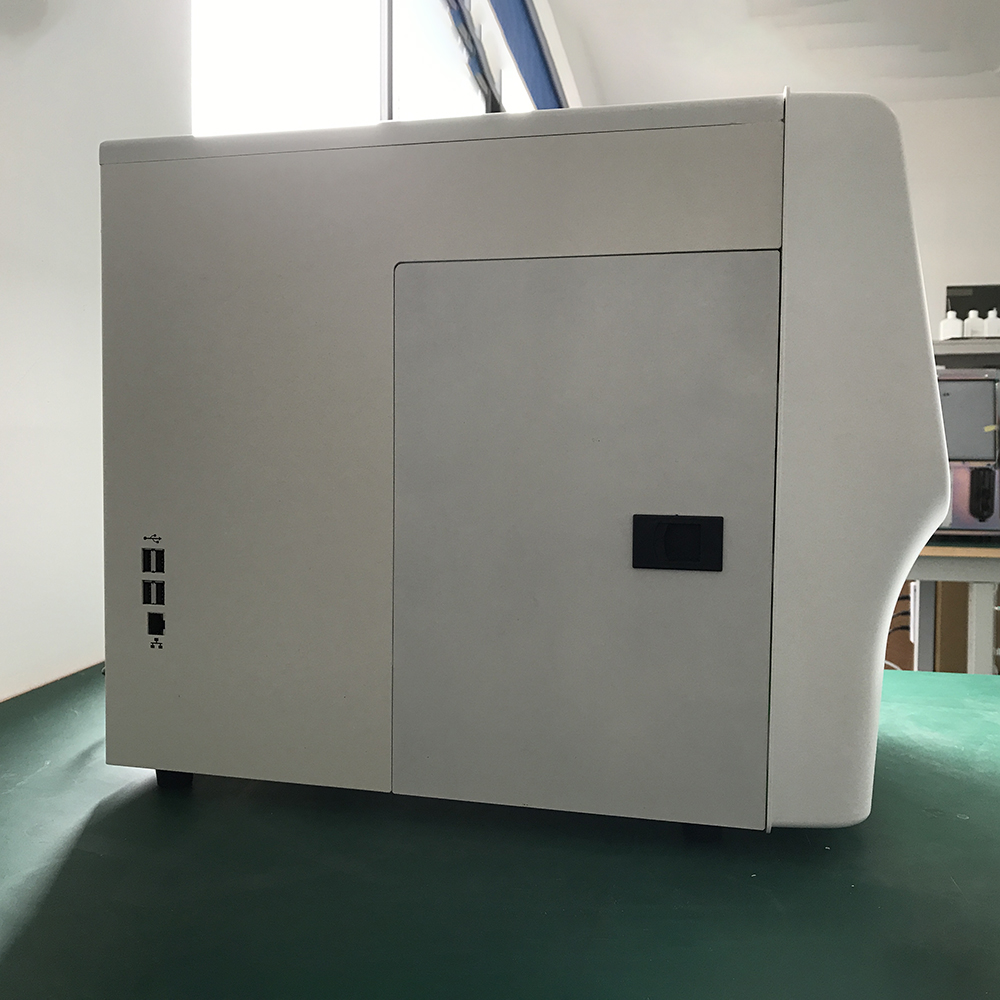

• 4 USB ports, 1 LAN port (supporting HL7 protocol, compatible with hospital LIS system)
• Optional external laser or inkjet printer
• Automatic fault handling and cleaning functions
• Dimensions: 430x330x510mm
• Weight: 25kg

Detection Principles & Parameters

• Coulter principle for RBC and PLT counting
• HGB concentration measured by colorimetry
• Flow cytometry for WBC 5-part differentiation
• 25 reportable parameters: WBC, Lym#, Lym%, Mon#, Mon%, Neu#, Neu%, Eos#, Eos%, Baso#, Baso%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P_LCR, P_LCC

Reagents & Sample Volume

• Reagents: Lyse B-SLH, Lyse B-DIFF, Diluent B-DI, Probe cleanser
• Sample volume: 28μL (whole blood mode), 20μL (predilute mode)

Performance & Communication

• Linear correlation coefficient r: ≥0.990
• LAN port supports HL7 protocol
• Languages: Chinese, English

Power & Environment

• Power: 100-240V~(10%), 50Hz/60Hz(+1Hz)
• Temperature: 10°C~35°C
• Humidity: 20%~80%
• Air pressure: 80 kPa~106 kPa
