MSLMRI19 Super Open Permanent MRI System - Technical Specifications & Core Features

As a versatile multi-field permanent MRI solution, MSLMRI19 integrates super open design, fiber optic transmission technology, and dual-scenario adaptability, serving as reliable compact clinical MRI system for hospitals, clinics, and veterinary facilities. Below are detailed technical parameters:

1. Magnet System

• Field Strength Options: 0.36T / 0.4T / 0.5T (meets diverse clinical and veterinary imaging needs)
• Structure Design:

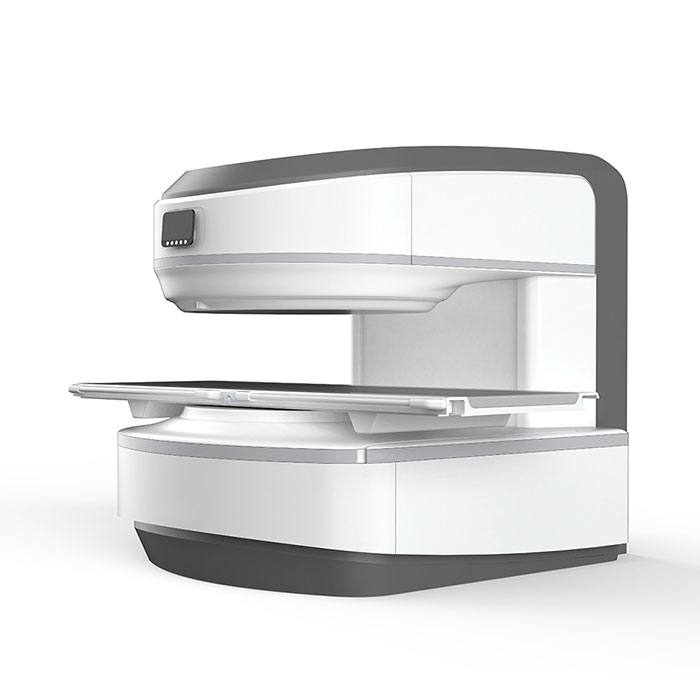

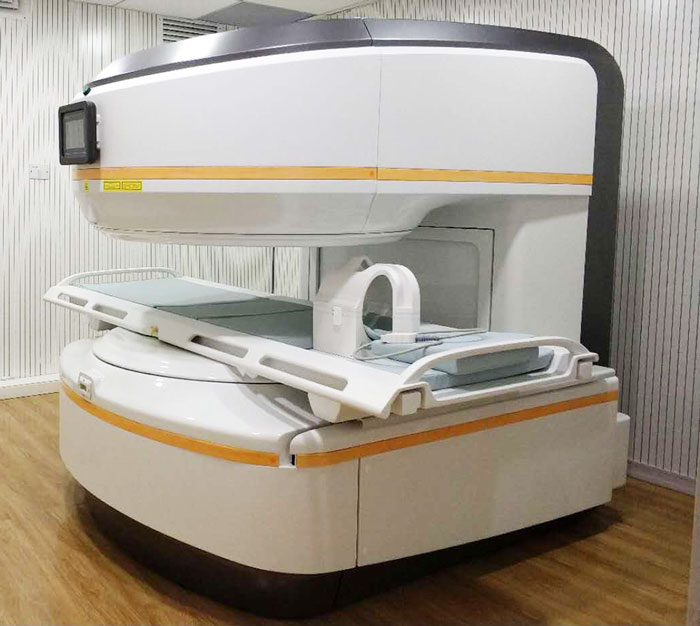

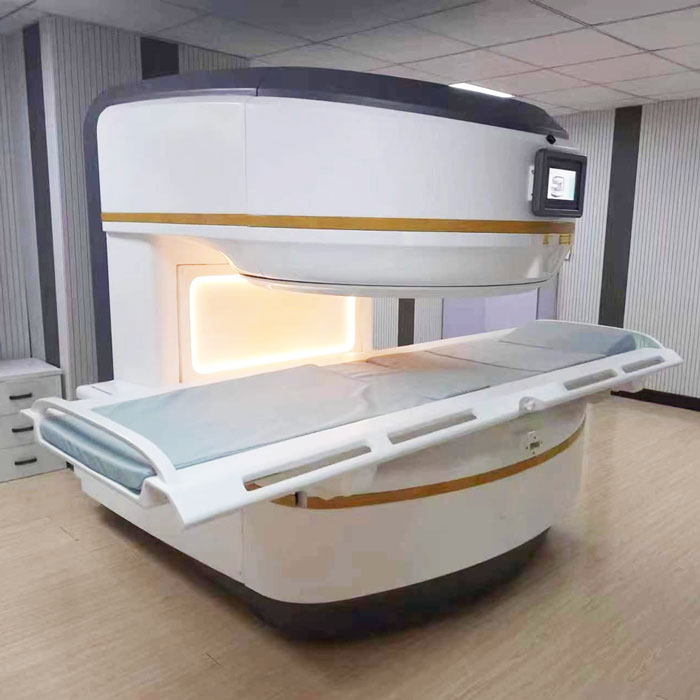

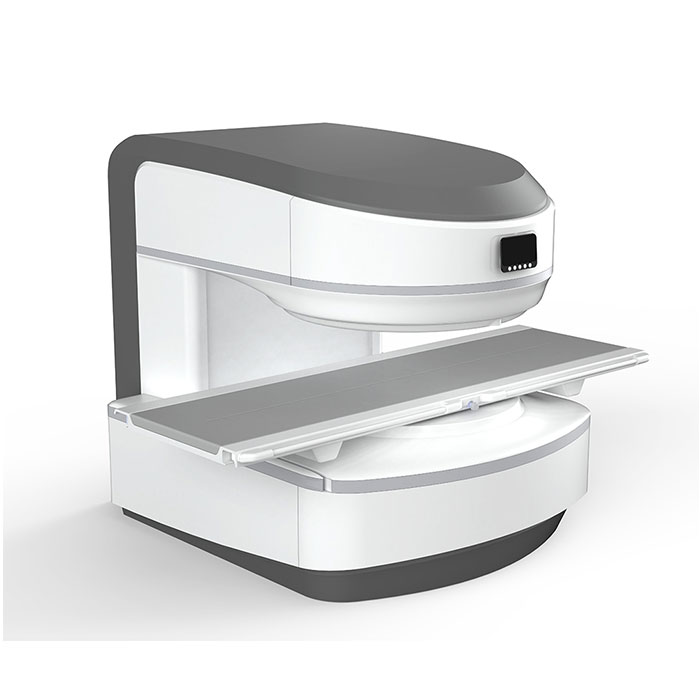

  • 0.36T/0.4T: 320° panoramic C-shape open magnet (space-saving, comfortable patient experience)

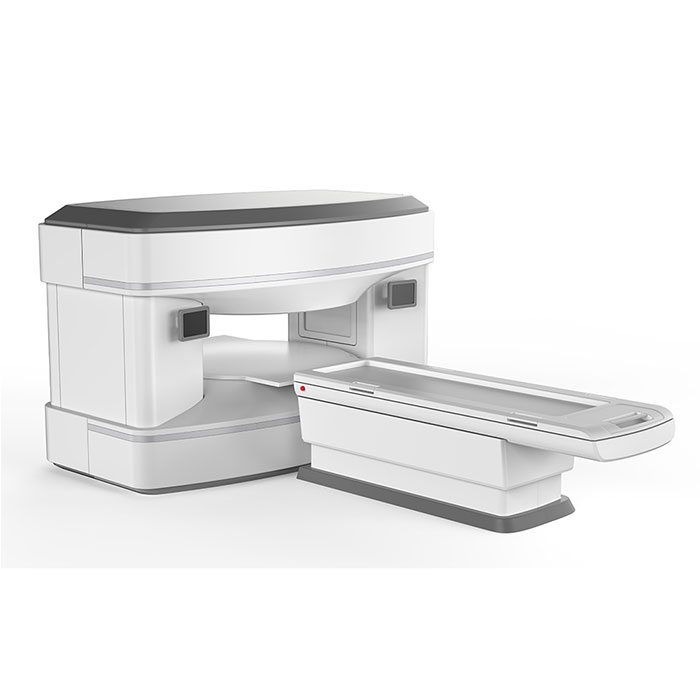

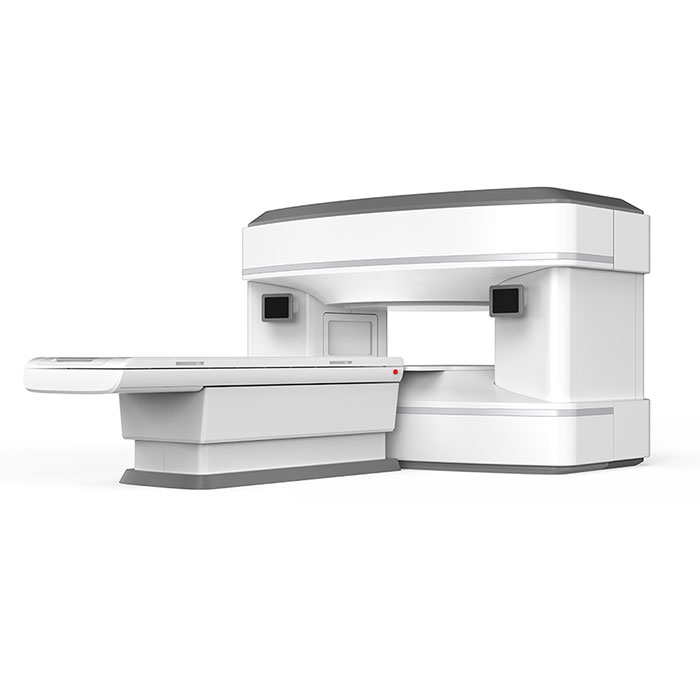

  • 0.5T: Unique dual-pillar open structure (large span, big gap, relaxed patient feeling)
• Core Technologies:
  • High-purity magnetic materials (lighter weight, smaller size)
  • Auto-constant temperature technology (enhances system stability)
• Installation Advantage: Compact integrated design, saves room space

2. Gradient & RF System

• Gradient Performance: High gradient power + high slew rate (supports thin-layer imaging with rich details)
• RF System:
  • Multi-channel phased array system (parallel acquisition technology boosts scanning speed)
  • Auto-tuning system (maintains optimal working condition)
  • Symmetrical transmitting coil design (enhances magnetic field stability, larger patient gap)
• SNR Advantage: Low signal loss, high Signal-to-Noise Ratio (SNR) for high-quality images

3. Spectrometer

• Type: Full Digital Optical Fiber Spectrometer
• Core Advantages: Optical fiber transmission (high transmission rate, low loss, strong anti-interference)
• Functional Value: Greatly improves image quality and data reliability

4. Hardware & Positioning

• Patient Table:
  • 0.36T/0.4T: Embedded electric table (easy for operation)
  • 0.5T: Motorized six-way electric table (simplifies patient positioning)
• Positioning System: Crossing laser positioning system (quick and precise positioning)
• Operation Interface: Dual touch-screen panel + digital display (convenient for doctors)

5. Software & Workflow

• Operating System: Multi-function Windows-based system (easy window switching, high work efficiency)
• Scout Image Technology: 9 slices of scout image (three groups acquired in one pilot scan)
• Image Processing: Zooming, dragging, magnifier, window width/level adjustment via mouse click; image navigation with auxiliary scout image
• Sequence Library: Classified user-defined sequence library (pre-defined parameters simplify scanning)
• Printing & Management: Irregular layout support, template customization, multi-user management (stores customized parameters)

6. Veterinary MRI Adaptability

• Application Scope: Whole-body imaging for animals (brain, spine, nerves, blood vessels, abdomen, pelvis, tumours, musculoskeletal joints)
• Vet-Specific Design:
  • Dedicated coils (customized for animal body features)
  • Wide-band noise matching + high-power RF receiving chain (improves image quality)
  • Respiratory anesthesia scenario compatibility
• Operation Convenience: One-key automatic positioning + one-key intelligent scanning; user-friendly software platform

7. Coil Configuration

• Standard Coils: Flexible body coil, joint kinematics coil (for new clinical applications)
• Vet-Specific Coils: Customized for animal anatomy
• Service: Coils customized service; self-developed and manufactured (easy maintenance and update)

8. Service & Support

• 24/7 Online Support: Remote technical support, online troubleshooting
• Spare Parts: Rich inventory + quick delivery
• Software Upgrade: Free lifetime software upgrade (fully self-developed acquisition platform)
• Global Network: Installed in 90+ countries, 100+ distributors/authorized service partners
• Regular Maintenance: Professional engineer services (prevents failures, extends equipment life)
