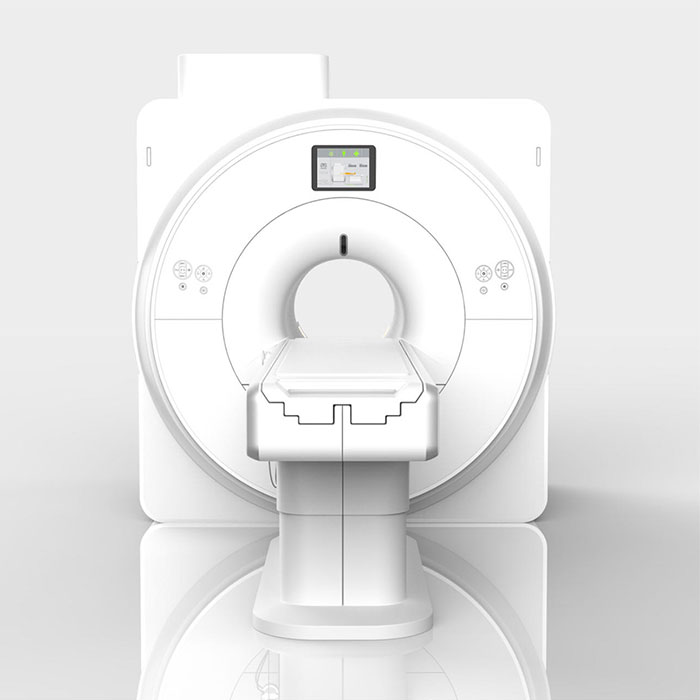

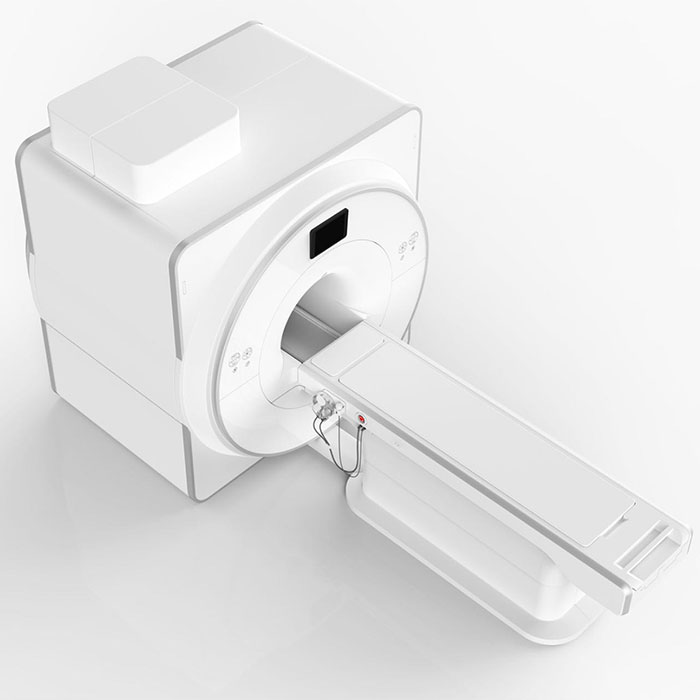

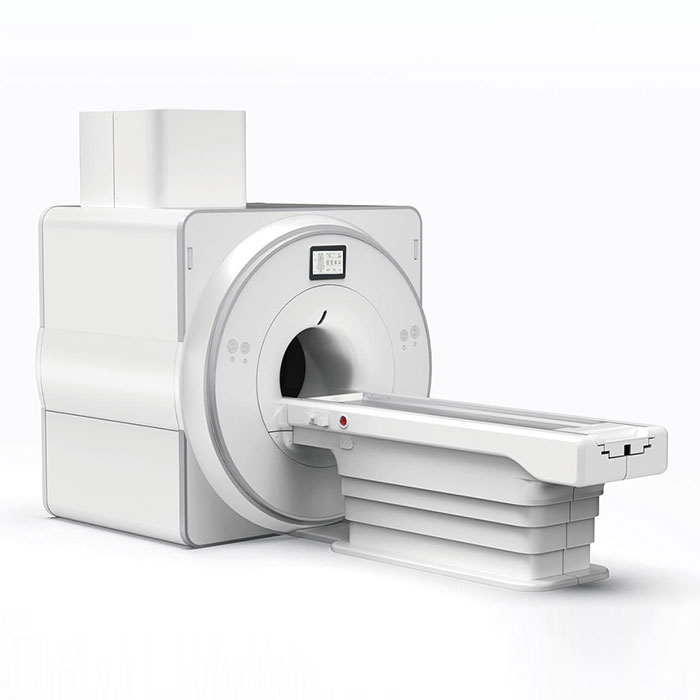

MSLMRI10 Superconducting MRI System - Technical Specifications & Core Features

As a 4th-generation superconducting MRI system, MSLMRI10 integrates A-combi & AI technologies, humanized design, and cost-effective operation, making it a reliable hospital MRI equipment for clinical diagnosis and efficient workflow. Below are the detailed technical parameters and key features:

1. Magnet System

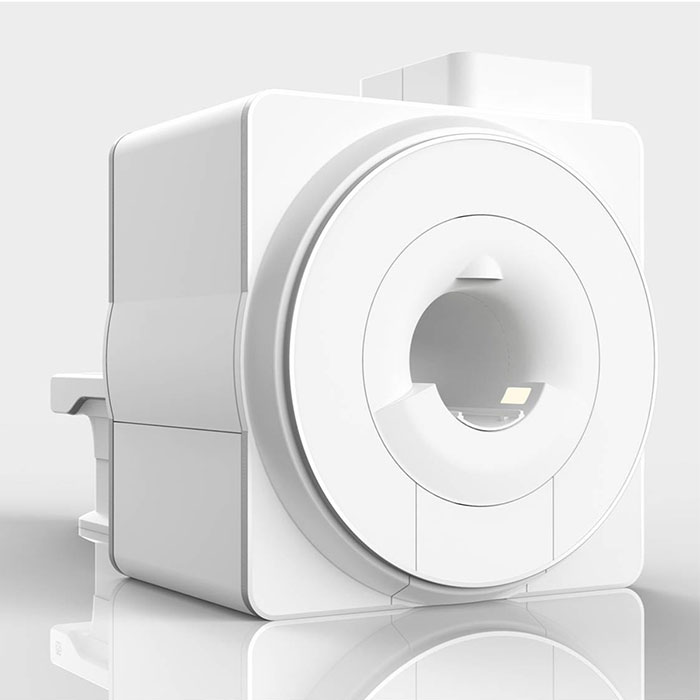

• Magnet Type: 4th-generation short bore superconducting magnet
• Core Technology: Liquid helium "zero" boil-off technology with 4K cold head (stable operation without liquid helium refilling)
• Magnetic Field Uniformity: High uniformity, supporting large FOV rapid imaging and high-quality fat suppression imaging
• Design Advantage: Compact structure, minimizing installation space requirements

2. RF Coil Configuration

• Coil Type: Phase Array (PA) Receiving Coil
• Standard Coils: Head & Neck Coil, Body Coil, Knee Coil, Shoulder Coil
• Optional Coils: Head Coil, Ankle Coil, Wrist Coil, Neck Coil, Spine Coil, Breast Coil, Flexible Coils (2 Sizes)
• Special Technology: A-combi coil integration technology (enables multi-body part scans without patient repositioning, supports whole-body/whole-spine imaging)
• Note: Specific coil configuration is subject to the product configuration list

3. Core Technologies & Features

3.1 AI-Powered Functions

• AI De-noising & Image Enhancement: Reduces scan time significantly (e.g., from 03:44 to 00:56) while maintaining image quality
• AI Intelligent Alignment & Stitching: Simplifies operation and ensures consistent imaging results
• Online Elastic Motion Correction (EMC): Reduces workload, delivers high-quality images for dynamic enhancement applications
• Whole-Body/Whole-Spine AI Imaging: Enables uninterrupted scanning without patient repositioning

3.2 Scan Performance

• Silent Scanning Technology: Low-noise pulse sequences (82dB, lower than conventional MRI) to enhance patient comfort
• Dual-Engine Parallel Acquisition Technique (PAT): Accelerates scan speed (e.g., scan time reduced from 8:09 to 4:48) while maintaining high image quality and spatial resolution
• Streamlined Magnetic Resonance Imaging Workflow: Boosts work efficiency via advanced hardware and software integration

3.3 Advanced Clinical Applications

• Auto-Triggered CE-MRA*: TR=4.8ms, TE=2.1ms, FA=30°, slice thickness options (1.2mm/1.5mm)
• Cardiac Cine*: Supports cardiac functional imaging
• APT* (Amide Proton Transfer Imaging): Advanced functional application (available on request)
• Clinical-Grade MRI Sequences: Covers conventional and advanced functional applications to meet diverse diagnostic needs

4. Imaging Sequences & Applications

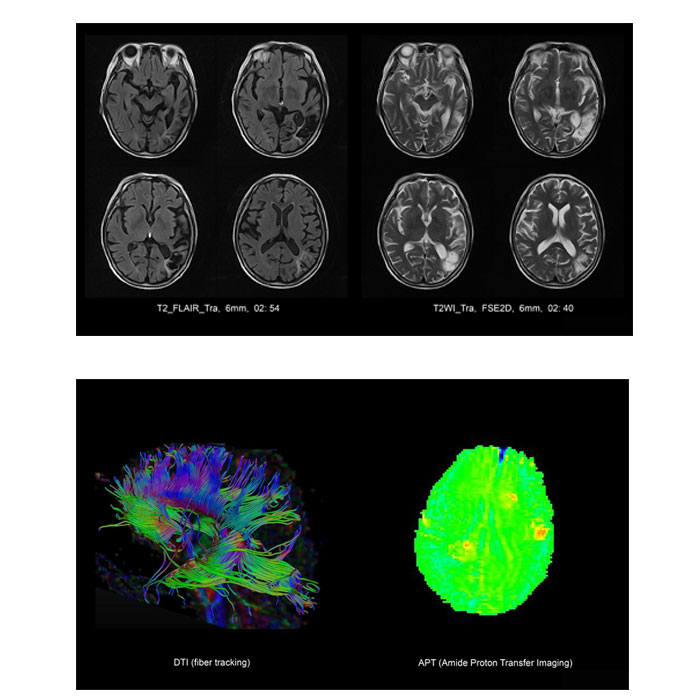

4.1 Brain Imaging

T1WI, T2WI, FLAIR, HD-DWI, ADC, A-SWI, 3D-TOF MRA, 3D-TOF MRV, T1WI-C+ (T2WI slice thickness=2mm)

4.2 Breast Imaging

T2WI & STIR, DWI & ADC, Dynamic Enhancement & Subtraction

4.3 Abdominal Imaging

T1WI, T2WI, a-SPAIR, DWI, In Phase, Out Phase, DE Phase I/II/III, MRCP, MRU, True-FISP

4.4 Spine & MSK Imaging

T1WI, T2WI, STIR, PD-FS WE (slice thickness=1.5mm), ME-T2*WI, Tra-T2WI, Tra-Intervertebral Disk Imaging

Marked with "" indicates non-standard configuration; please contact us for details.

5. Installation & Power Requirements

5.1 Space Requirements

• Minimum Installation Area: 35 square meters
• Room Dimensions (Length×Width×Height):
  • Magnet Room: 6500mm×5500mm×3300mm
  • Equipment Room: 5500mm×3000mm×3300mm
  • Operation Room: 4500mm×4000mm×3200mm

5.2 Power Supply

• Phase & Voltage: 3 Phase, 380V
• Voltage Stability Range: ±10%
• Frequency Range: 50/60Hz (±1Hz)
• Connection Power Value: 60KVA (average power at full-load normal operation)

6. Cost-Effectiveness Advantages

• Low Investment: Cost-effective superconducting MRI system with compact design
• Low Operating Costs: Zero liquid helium consumption, low power consumption, and minimal maintenance costs
• High Return on Investment: High-resolution thin-slice imaging improves diagnostic accuracy; fast scan speed enhances work efficiency
• Upgrade Support: Fully supported by patented core technologies for future upgrades

7. Service & Support

• Efficient Service MRI System: 24-hour service response
• Global Support Network: Over 100 professional service engineers
• Spare Parts: Rich spare parts backup and fast delivery
• Humanized Support: Comprehensive training and technical guidance
