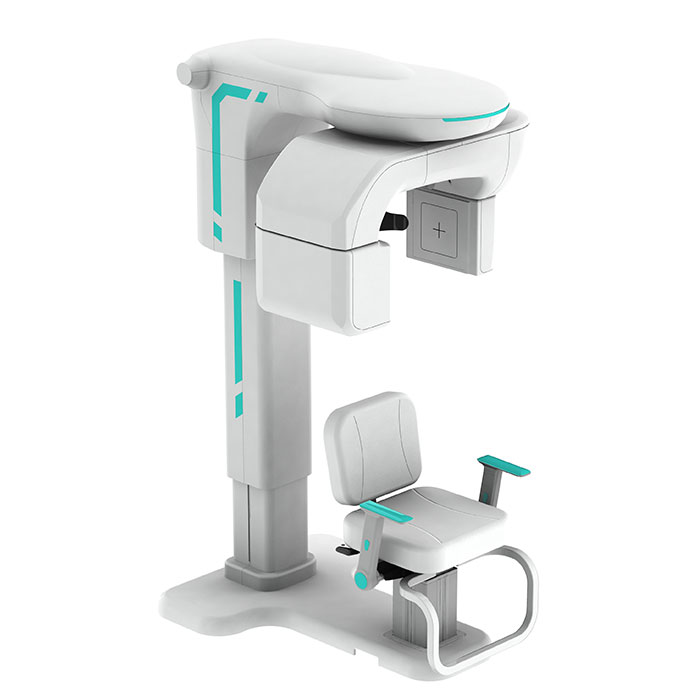

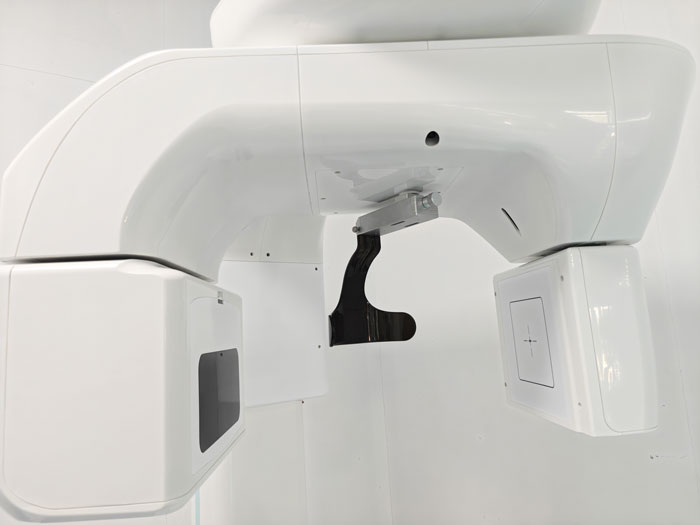

MSLDX24 Low-Radiation Seated Dental CBCT - Technical Specifications & Core Features

As a high-definition oral imaging solution, MSLDX24 integrates 4-FOV flexibility, low-radiation technology, and seated scanning comfort, serving as reliable multi-artifact correction CBCT for dental clinics, oral hospitals, and implant centers. Below are detailed technical parameters:

1. Core Specifications

• Product Type: Seated Cone Beam Computed Tomography (CBCT) - Dental/maxillofacial dedicated
• FOV Options: 18×14cm, 16×12cm, 18×10cm, 16×9cm (flexible for full oral, partial, and maxillofacial imaging)
• Minimum Voxel Size: 0.05mm (ultra-high resolution for precise implant planning and diagnosis)
• Continuous Imaging Capacity: 200 sets of high-quality images (supports busy clinical workflows)
• Key Advantage: Non-stitching single-scan imaging (displays dentition, TMJ, maxillary sinuses for complex procedures like zygomatic implants)

2. Radiation Dose & Imaging Parameters

• Low-Radiation Design:
  • Adult Dose: 90kV-4mA (high-definition imaging with minimal radiation exposure)
  • Child Dose: 70kV-2mA (child-friendly, reduces radiation risk for young patients)
• Imaging Stability: Seated scanning design (reduces motion artifacts, improves image consistency)
• Core Function: Covers maxillofacial observations, implant planning, TMJ diagnosis, and sinus lift assessments

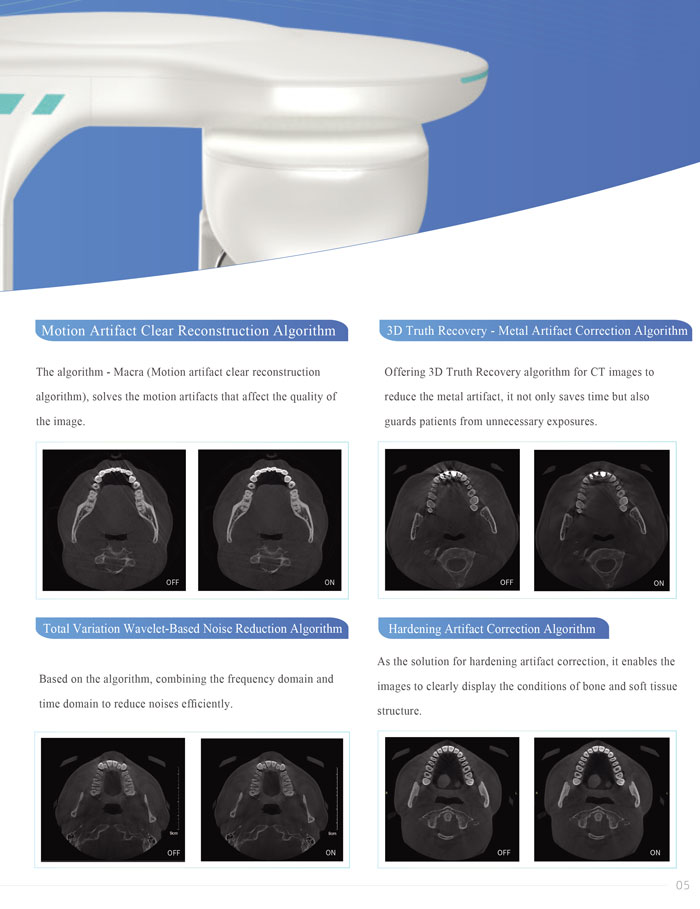

3. Advanced Imaging Algorithms

• Motion Artifact Correction (Macra): Eliminates motion-induced image distortion, ensures clarity
• Metal Artifact Correction (3D Truth Recovery): Reduces metal interference, avoids repeated scans for patients with dental restorations
• Noise Reduction: Total Variation Wavelet-Based Algorithm (combines frequency and time domain for efficient denoising)
• Hardening Artifact Correction: Clearly displays bone and soft tissue structures, supporting accurate diagnosis

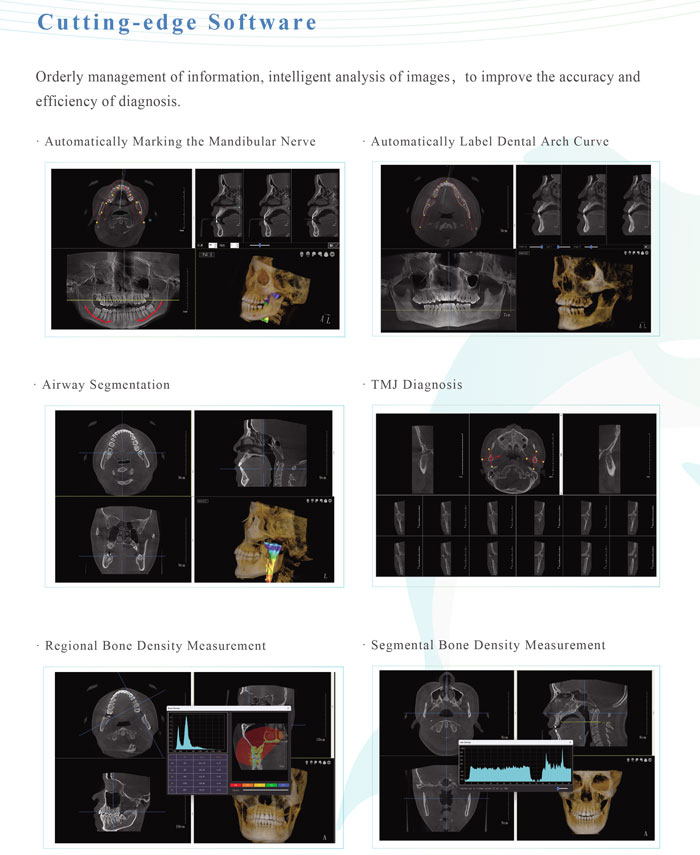

4. Cutting-Edge Software Functions

• Intelligent Analysis Tools:
  • Automatic Mandibular Nerve Marking
  • Automatic Dental Arch Curve Labeling
  • Airway Segmentation
  • TMJ Diagnosis Support
  • Regional & Segmental Bone Density Measurement

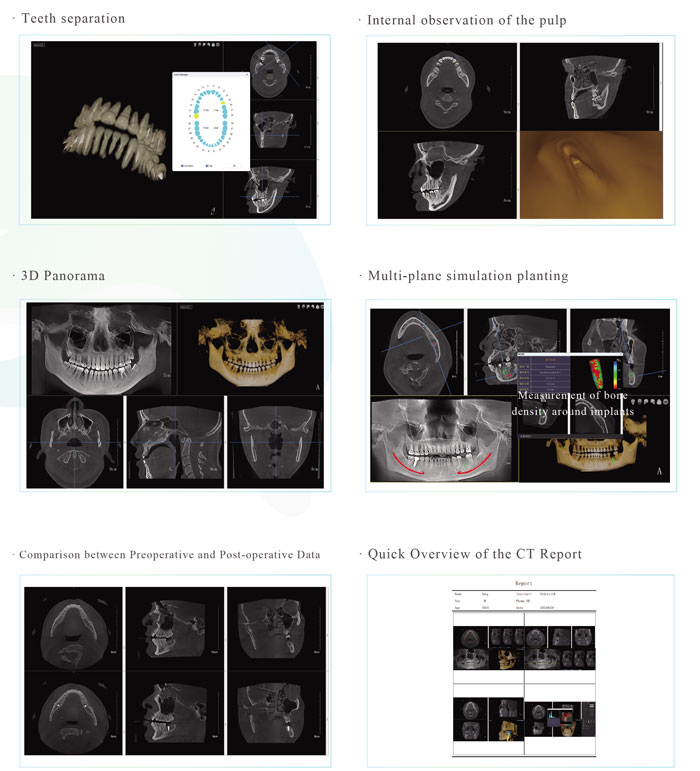

  • Teeth Separation & Pulp Internal Observation
  • 3D Panorama & Multi-Plane Simulation Planting
  • Implant Surrounding Bone Density Measurement
  • Preoperative/Postoperative Data Comparison
  • Quick CT Report Overview

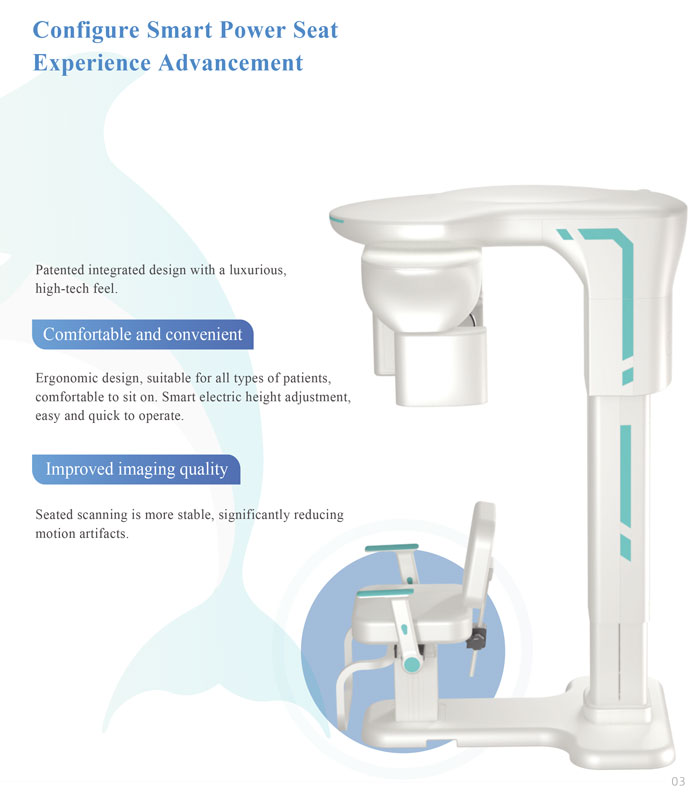

5. Hardware & Patient Comfort

• Patient Seat: Patented integrated Smart Power Seat (ergonomic design, suitable for all patient types)
• Seat Features: Electric height adjustment (easy operation, quick positioning)
• Device Dimensions: 1860mm × 1270mm × 800mm (compact design, saves clinic space)
• Core Benefit: Seated position improves patient comfort (ideal for elderly, children, and anxious patients)

6. Service & Support

• Customized Service: 1V1 personalized support
• Response Efficiency: 365-day online service, 30-minute response, 1-hour solution provision
• Maintenance: Professional technical support, software/hardware upgrade services
• Application Scope: Dental implants, orthodontics, maxillofacial surgery, TMJ diagnosis, and general oral examinations
