MSLCV42 Digital Intra-oral Sensor - Product Specification
1. Product Basic Information
- Product Name: MSLCV42 digital intra-oral sensor
2. Core Technical Parameters
| Parameter Category |
Details |
|
| Sensor Technology |
Adopts CMOS/APS technology – as a high-adaptability CMOS/APS dental imaging sensor, it provides a stable core for dental image acquisition |
|
| Scintillator |
Equipped with CSI:TI scintillator – this CSI:TI scintillator oral sensor enhances X-ray conversion efficiency, ensuring clear image output |
|
| Active Area |
20mm × 30mm – covers the standard imaging range required for most dental clinical scenarios |
|
| Matrix |
1200×800 – supports high-definition image capture to present fine dental tissue details |
|
| Pixel Pitch |
25um – small pixel size further improves image sharpness and reduces distortion |
|
| Measured Resolution |
≥16Lp/mm – meets the diagnostic accuracy needs of dental diseases, matching the performance of ≥16Lp/mm resolution dental sensor |
|
| A/D Conversion |
14 bit – this 14bit A/D conversion X-ray sensor captures more gray-level details, helping distinguish subtle tissue differences |
|
| Cable Length |
Standard 3m or customized – the 3m customized cable oral sensor adapts to different clinic space layouts, improving operation flexibility |
|
3. Working Mode & Performance Parameters
| Parameter Category |
Details |
|
| Work Mode |
Dual modes: Radiography & Fluoroscopy – supports both static imaging (Radiography) and dynamic observation (Fluoroscopy) |
|
| Fluoroscopy Mode |
19fps@1×1 – this 19fps fluoroscopy dental sensor enables smooth dynamic image display, suitable for real-time dental procedure monitoring , |
, |
| X-Ray Energy Range |
45-90kV – the 45-90kV X-ray energy sensor is compatible with most dental X-ray machines on the market |
|
| Radiation Hardness |
>100 Gy – strong radiation resistance ensures long-term stable operation, extending the product’s service life |
|
| Data Interface |
USB 2.0 – this USB 2.0 dental imaging device realizes fast and stable data transmission, reducing waiting time for image acquisition |
|
| Trigger Type |
AED trigger – the AED trigger dental sensor automatically matches X-ray exposure timing, improving operation efficiency |
|
4. Mechanical & Appearance Parameters

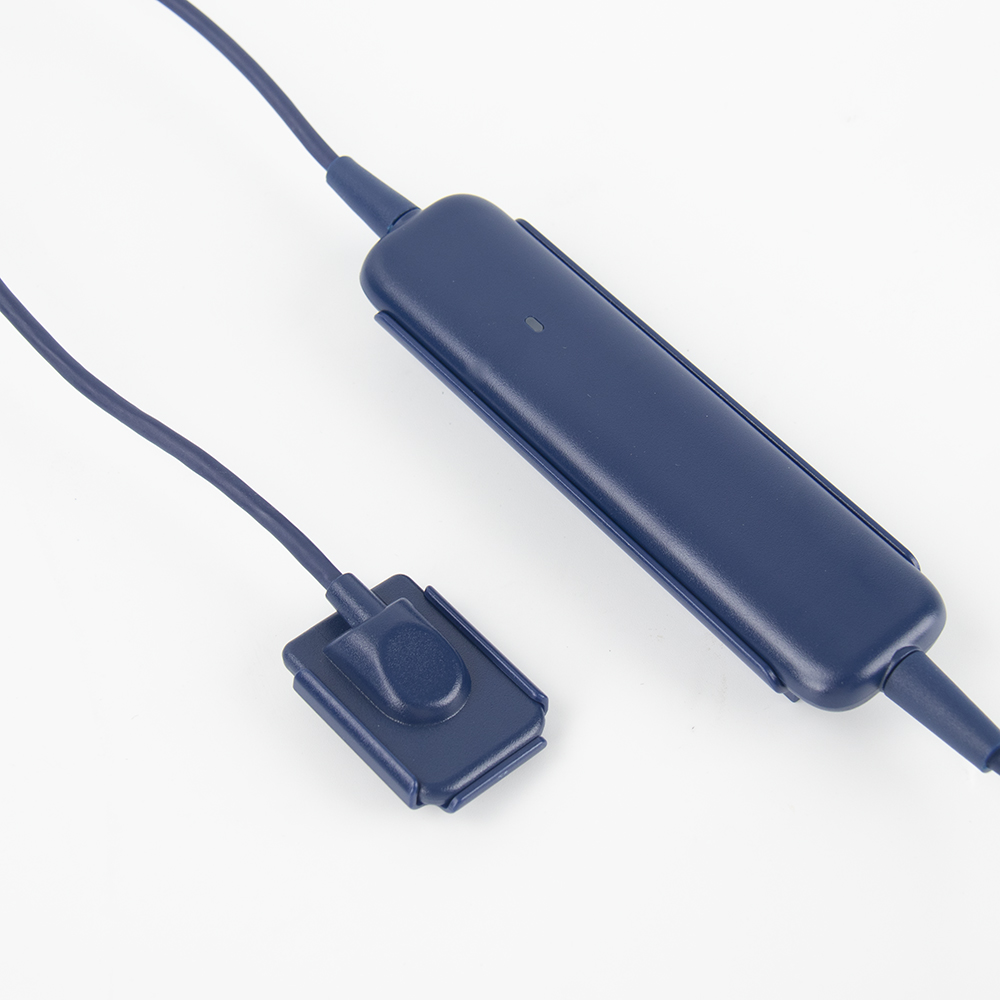

- Detector Dimensions: 38.8mm × 26.6mm × 4.6mm – the compact 38.8x26.6x4.6mm dental sensor design is easy to insert into the oral cavity, reducing patient discomfort
- Color Option: Standard blue or customized – the blue/custom color intra-oral sensor can match different clinic decoration styles or brand image needs
- User-friendly Design: Round and skin-friendly edge design (for comfortable positioning) + simple operation logic + easy storage, fully meeting the "great user experience" and "ease-of-use" requirements ,,
5. Product Core Advantages Summary
This MSLCV42 digital intra-oral sensor integrates durable materials/components (ensuring long-term reliability ,), advanced CMOS/APS technology, and dual working modes (static & dynamic ). It not only meets the professional imaging needs of dental clinics but also solves pain points such as complicated operation and poor compatibility, becoming a cost-effective choice for dental digitalization.
