MSLDX23 Low-Dose Dental CBCT - Technical Specifications & Core Features

As an all-in-one oral imaging solution, MSLDX23 integrates low-dose technology, multi-FOV flexibility, and integrated clinical functions, serving as reliable multi-FOV oral imaging equipment for dental clinics, oral hospitals, and orthodontic centers. Below are detailed technical parameters:

1. Core Specifications

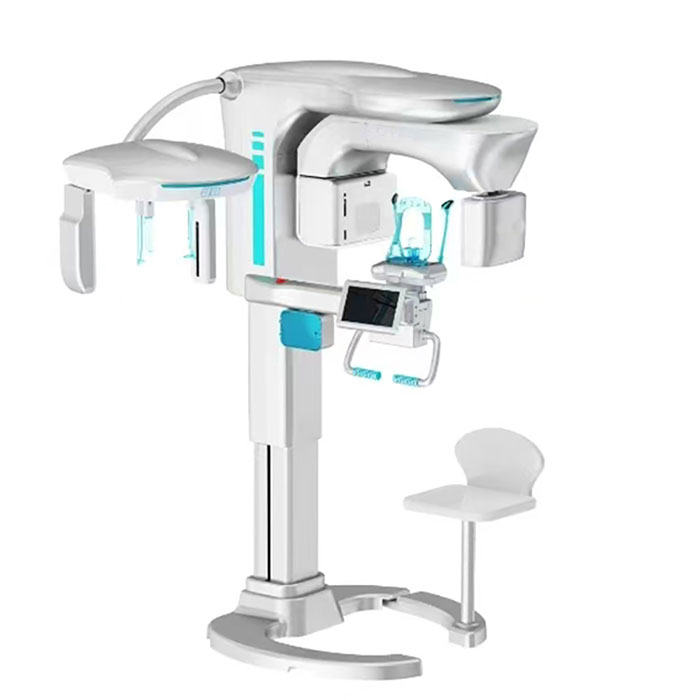

• Product Type: Cone Beam Computed Tomography (CBCT) - Dental-specific all-in-one design
• FOV Options: 18×14cm, 16×12cm, 18×10cm (covers full oral, maxillofacial, and partial imaging needs)
• Minimum Voxel Size: 0.05mm (delivers ultra-high-resolution details for precise diagnosis)
• Continuous Imaging Capacity: 200 sets of high-quality images (supports busy clinical workflows)
• Key Advantage: Non-fusion single-scan imaging (displays dentition, TMJ, maxillary sinuses for implants/sinus lifts)

2. Imaging Parameters & Dose Control

• Radiation Dose: Low-dose design with LDira reconstruction algorithm
  • Adult: 90kV-4mA
  • Child: 70kV-2mA (balances image quality and radiation protection)
• Detector Options:
  • Linear array detector: High-resolution cranial (standard/lateral) and metacarpal bone images
  • One-shot flat-panel detector: 0.8S fast imaging with low dose
• Integrated Imaging Modes: OPG (Panoramic), Ceph (Cephalometric), optional Intraoral X-Ray Device

3. Core Imaging Algorithms

• Low-Dose Algorithm (LDira): Ensures high-definition imaging with minimal radiation
• Motion Artifact Correction (Macra): Eliminates motion-induced image artifacts
• Metal Artifact Correction (3D Truth Recovery): Reduces metal-related interference, avoids repeated scans
• Noise Reduction: Total Variation Wavelet-Based Algorithm (combines frequency/time domain for efficient denoising)
• Hardening Artifact Correction: Clear display of bone and soft tissue structures
• Dynamic Focusing Tomosynthesis: Auto-adjusts grayscale/sharpness based on dental arch
• Clear-Vision Algorithm: Prevents ghost images/distortion from spine/airway

4. Advanced Software Functions

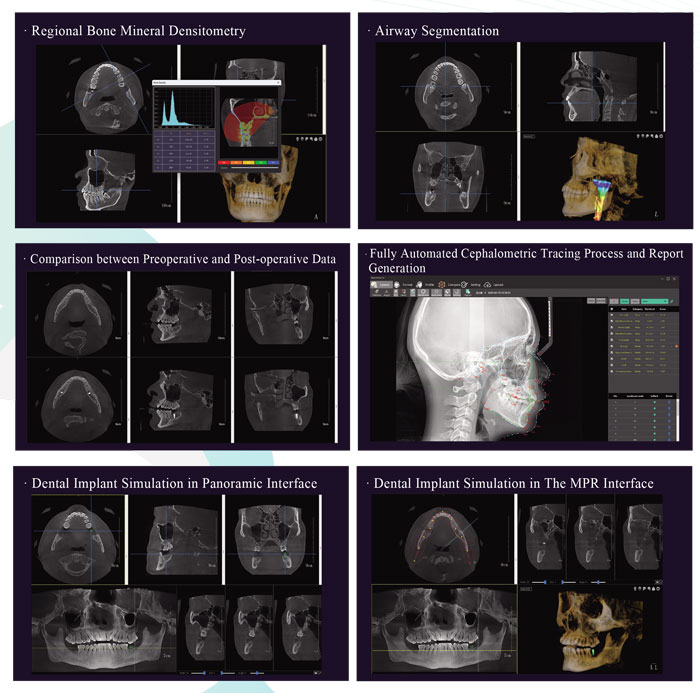

• Intelligent Analysis Tools:
  • Automatic Mandibular Nerve Marking
  • TMJ Diagnosis Support
  • Regional Bone Mineral Densitometry
  • Preoperative/Postoperative Data Comparison
  • Dental Implant Simulation (Panoramic & MPR Interfaces)
  • Airway Segmentation
  • Fully Automated Cephalometric Tracing & Report Generation

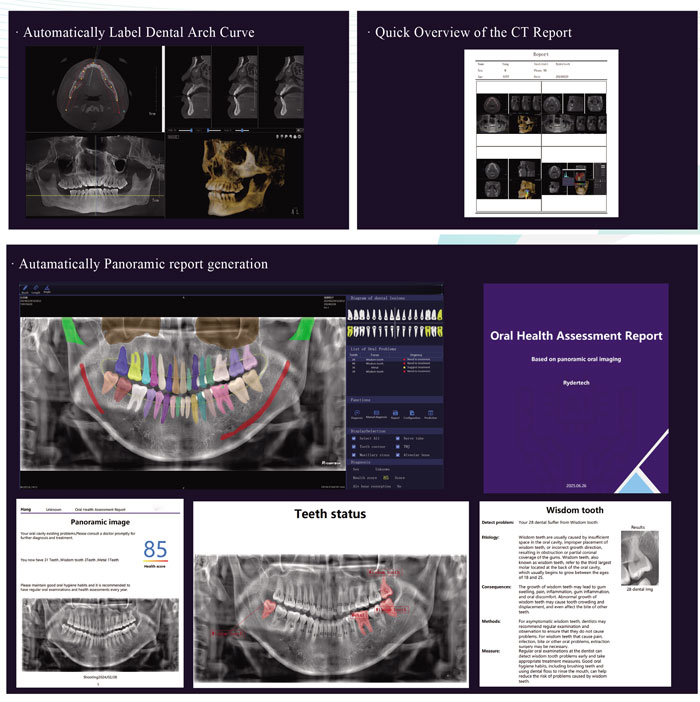

  • Automatic Dental Arch Curve Labeling
  • Quick CT Report & Panoramic Report Generation
• Information Management: Orderly image/data storage, oral health assessment report generation

5. Hardware & Patient Comfort

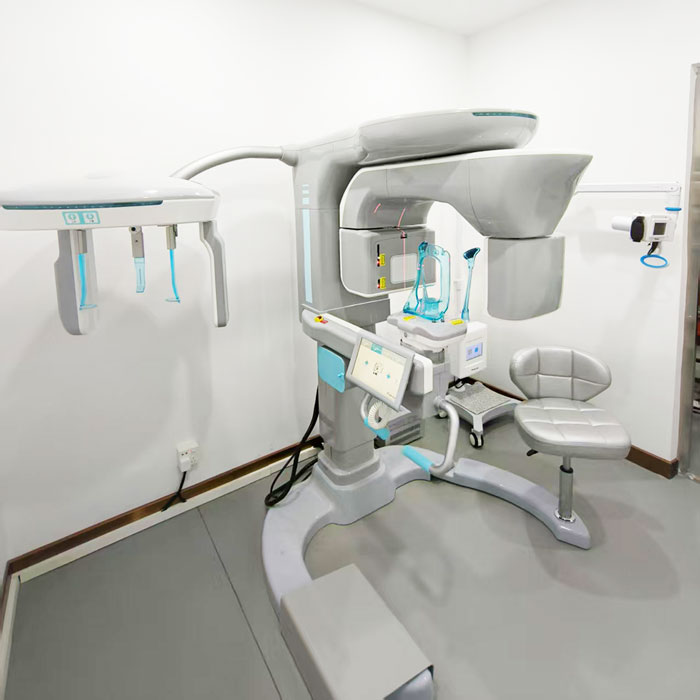

• Patient Support: Integrated Sliding Chair (ergonomic design, supports sitting/standing scans)
  • Benefits: Improves experience for elderly/disabled patients; reduces motion artifacts via seated scanning

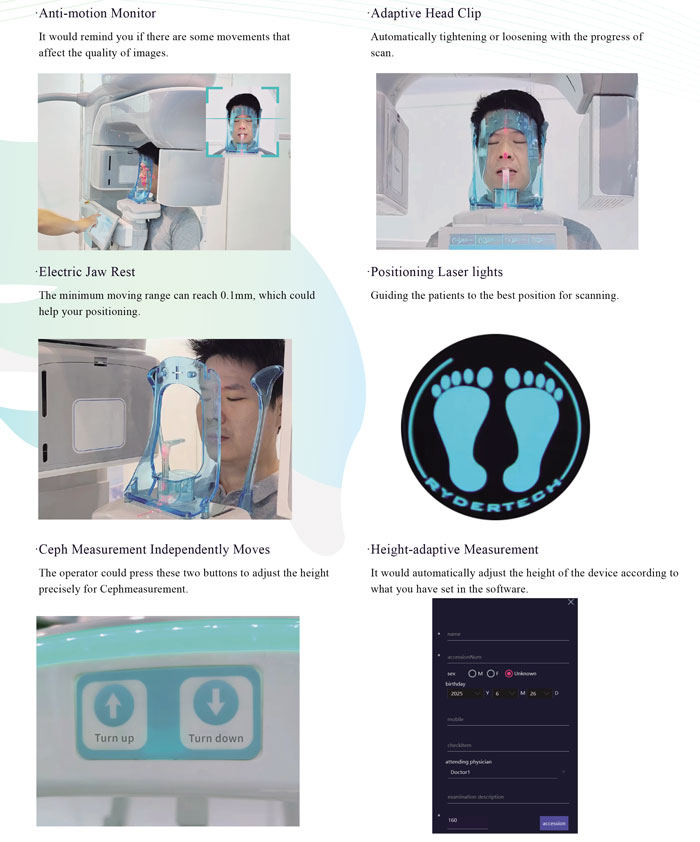

• Positioning Aids:
  • Anti-motion Monitor (alerts for movement affecting image quality)
  • Electric Jaw Rest (0.1mm precision movement for accurate positioning)
  • Height-Adaptive Measurement (auto-adjusts device height via software settings)
  • Adaptive Head Clip (auto-tightens/loosens during scanning)

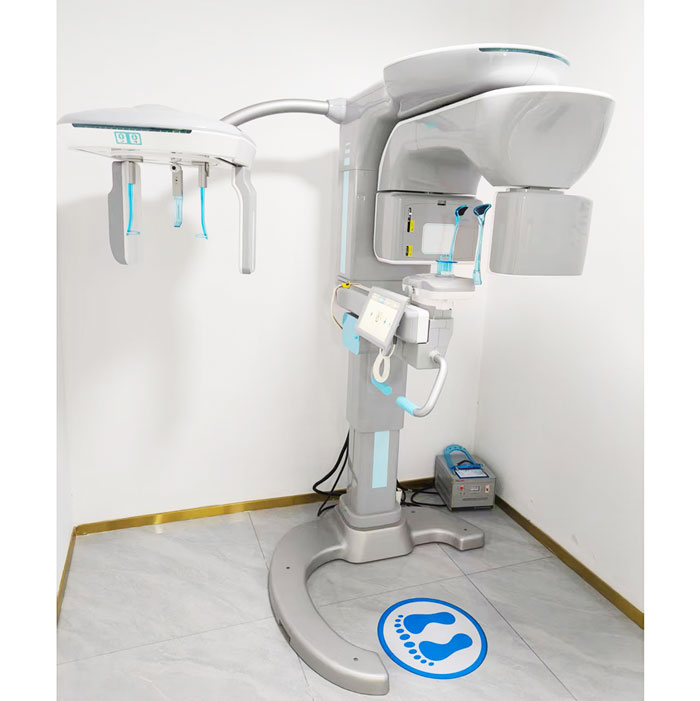

  • Positioning Laser Lights (guides optimal patient positioning)
• Ceph Measurement: Independently adjustable height via control buttons

6. Installation & Service

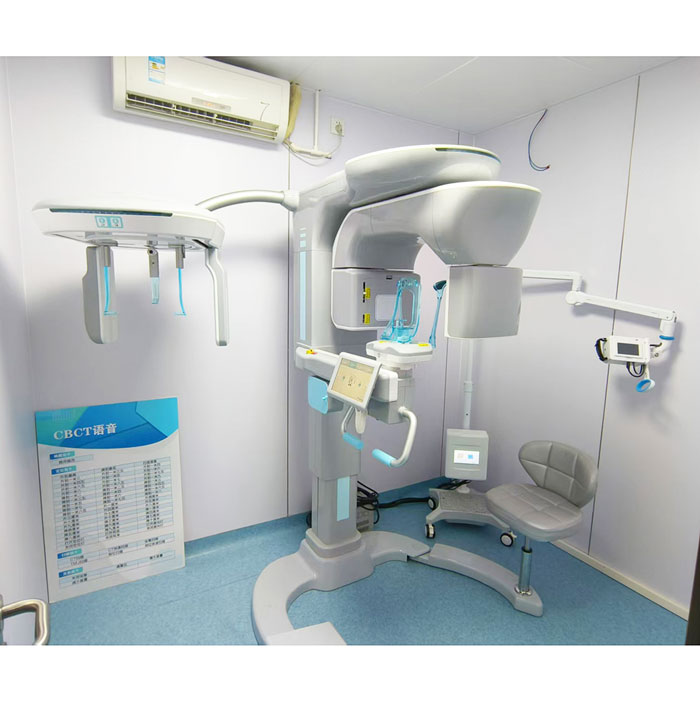

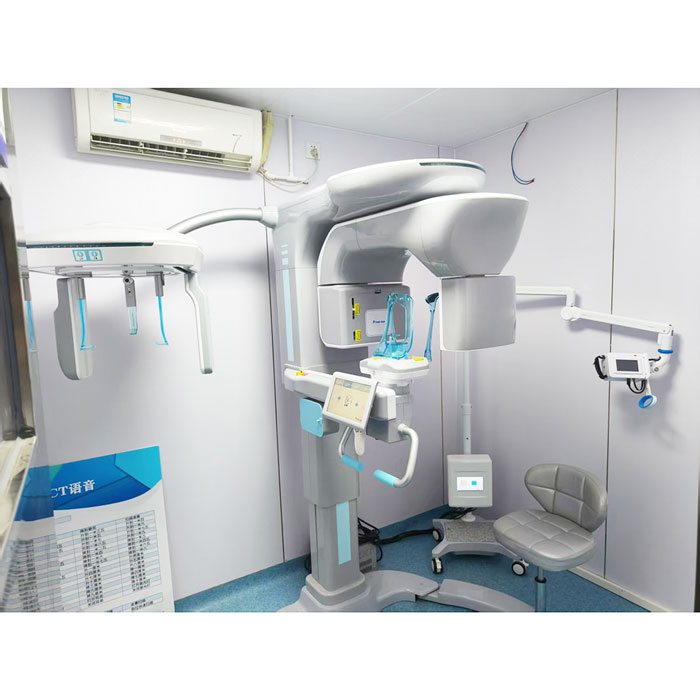

• Installation Requirement: Only 1 room needed (space-saving, cost-reducing)

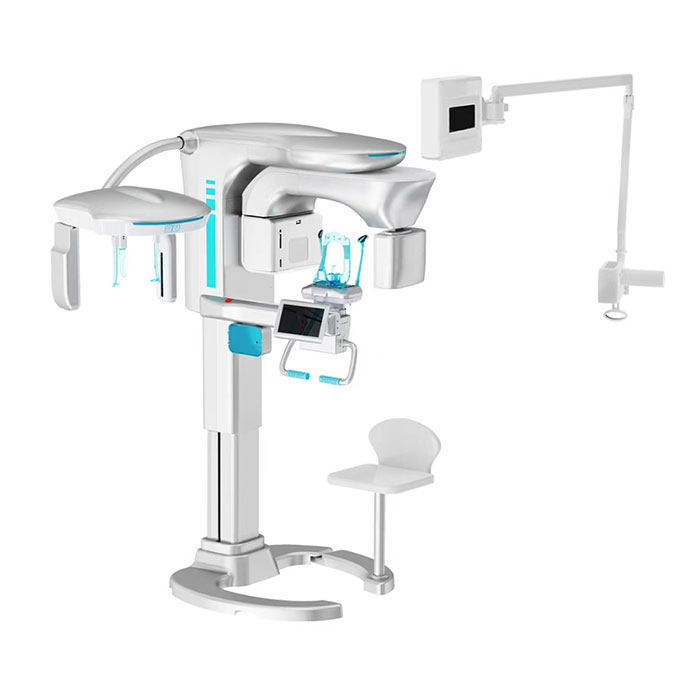

• Intraoral X-Ray Option: Two installation methods (labor-saving, stable shooting)
• Service Support:
  • 365-day online service
  • 30-minute response + 1-hour solution provision
  • Customized 1V1 service
  • Software/hardware maintenance & upgrades
