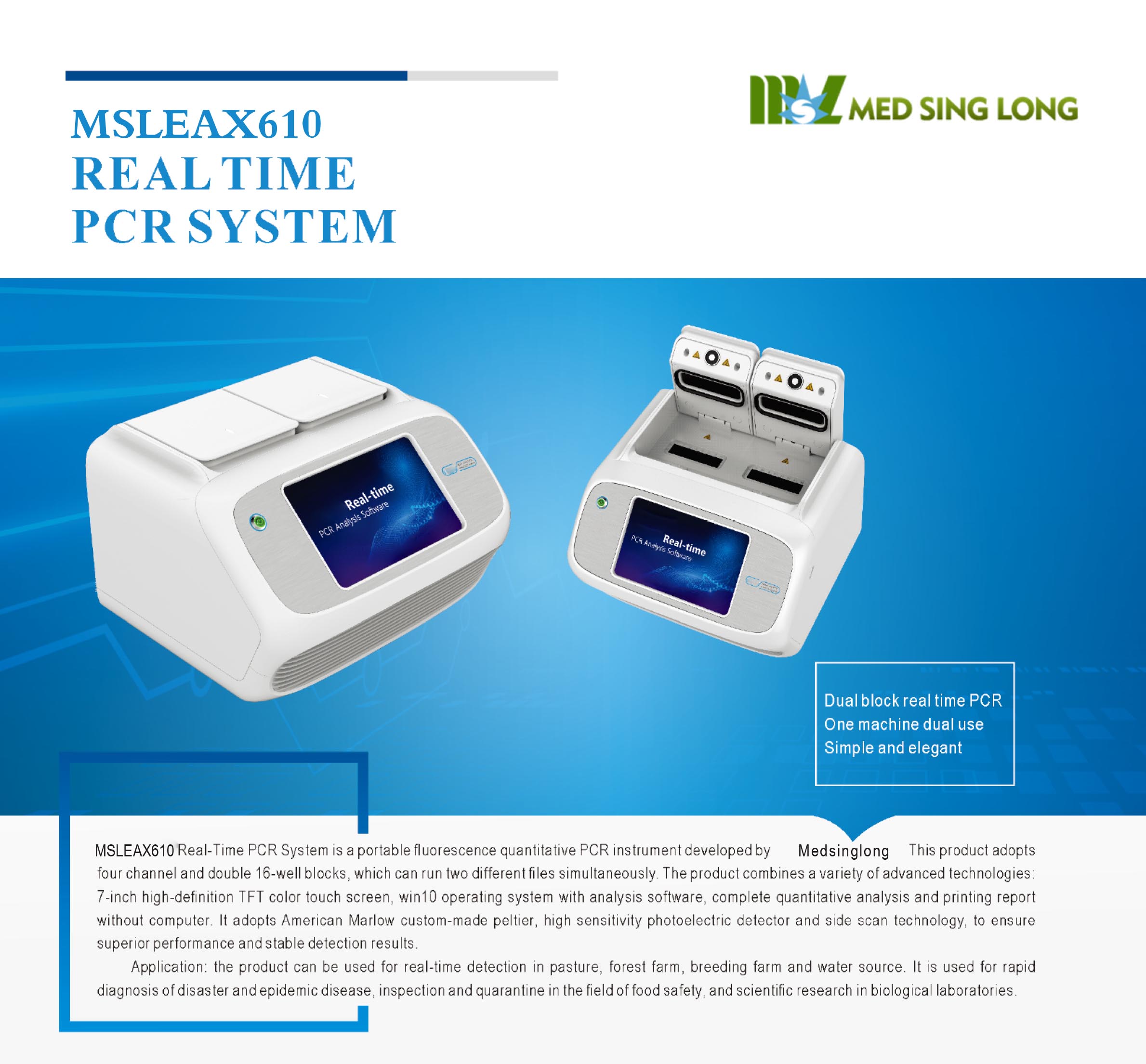

Double channels pcr test equipment 16 /32 channel MSLEAX610

Type:

Bio-Separation System

Brand Name:

MSL

Model Number:

MSLEAX610

Place of Origin:

Guangdong, China

Instrument classification:

Class II

Warranty:

1 Year

After-sale Service:

Online technical support

Product model:

MSLEAX610

Product name:

real time pcr machine

channel:

16/32 channel

Consumable:

Clear 0.2 ml PCR tube/8-tube strips

Sample Capacity:

16x0.2ml(2x8well, double block)

Reaction Volume:

10-100ul

Temperature control technology:

Marlow customized Peltier allow1.000.000 cycles

Temperature Range:

0-100"C(Resolution:0.19C)

Hot Lid Temperature:

30-115*C(Adjustable,default 105C)

Excitation wavelength:

●Four channels and double 16- well blocks design, can run two different programs at the same time.

●Small size, light weight, easy to carry.

●Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.

●7-inch high-definition TFT color touch screen, and embedded win10 operating system.

●20G flash memory can save 40,000 experimental data.

●Printer as an optional which can print the records directly, no need to connect the computer.

●Imported 32 bundled optical fibers are used to collect fluorescence from the side to increase the intensity of fluorescence signal and reduce light conduction damage.

●Black reaction block to avold background noise.

●LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.

●The electromagnetic lock cover technology prevents the hot lid from accidentally opening.

●Front shutdown button makes file data more secure.

●Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy

●It has the protection functions of over- current, over temperature, power-off data self recovery, etc.

●Forward and backward air vent design, can be placed side by side, saving laboratory space.
