Our dental CBCT scanner category covers high-performance new machines and fully certified refurbished cone beam CT equipment, tailored for global dental clinics, hospitals, and medical institutions in Southeast Asia, Latin America, and Africa. Supporting multi-FOV scanning, low-dose imaging, and precise 3D dental imaging, our CBCT devices perfectly fit clinical scenarios including implant planning, orthodontic diagnosis, and root canal treatment. All products are CE approved with stable quality and cost-effective prices. Every refurbished CBCT undergoes strict testing and calibration with complete test reports and after-sales warranty. We provide reliable professional dental radiology equipment and one-stop export solutions for global dental medical procurement.

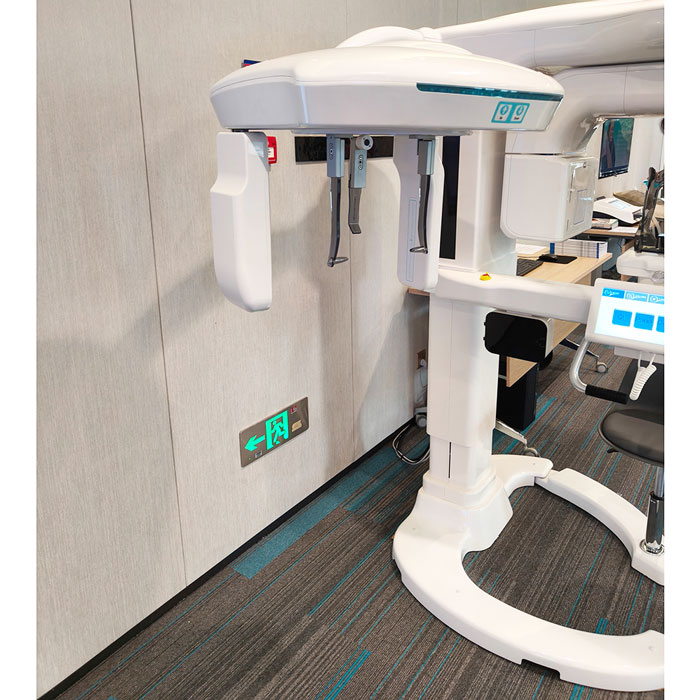

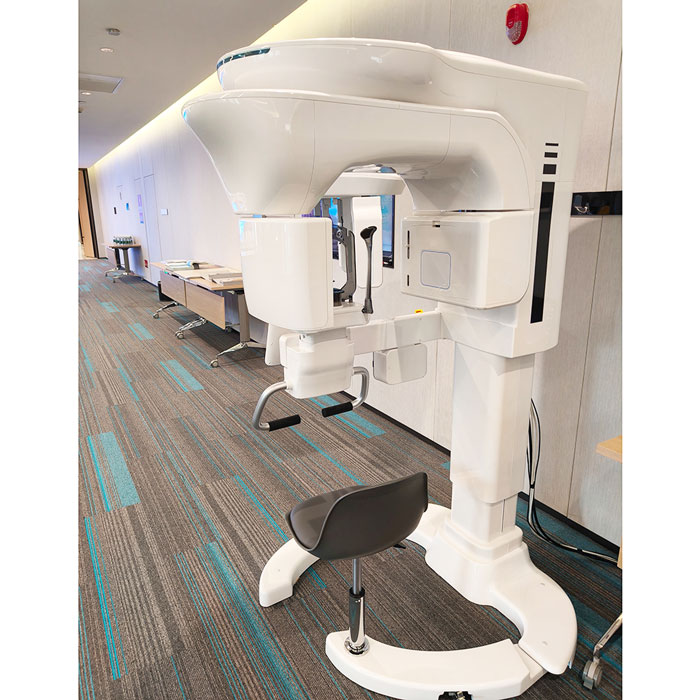

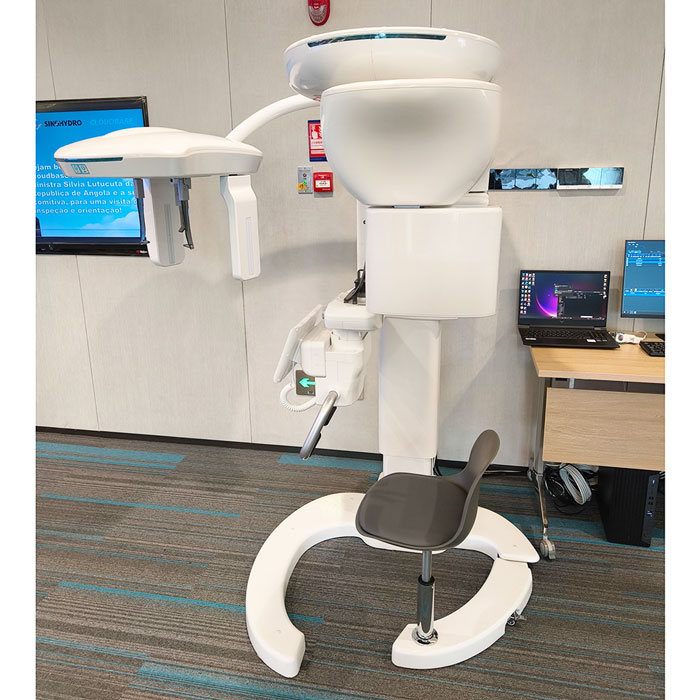

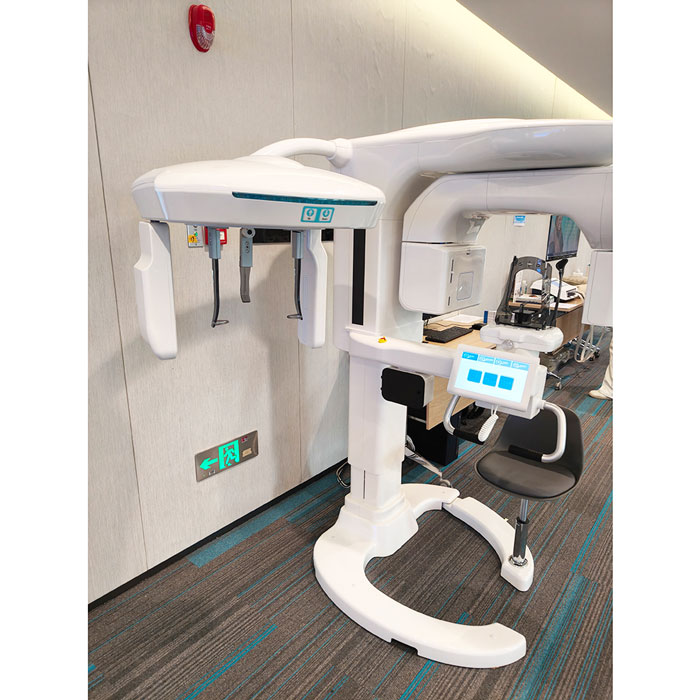

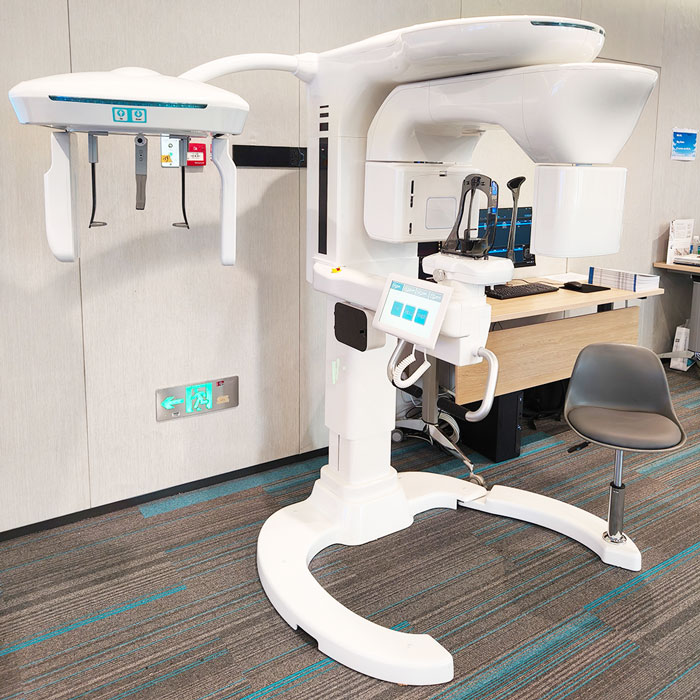

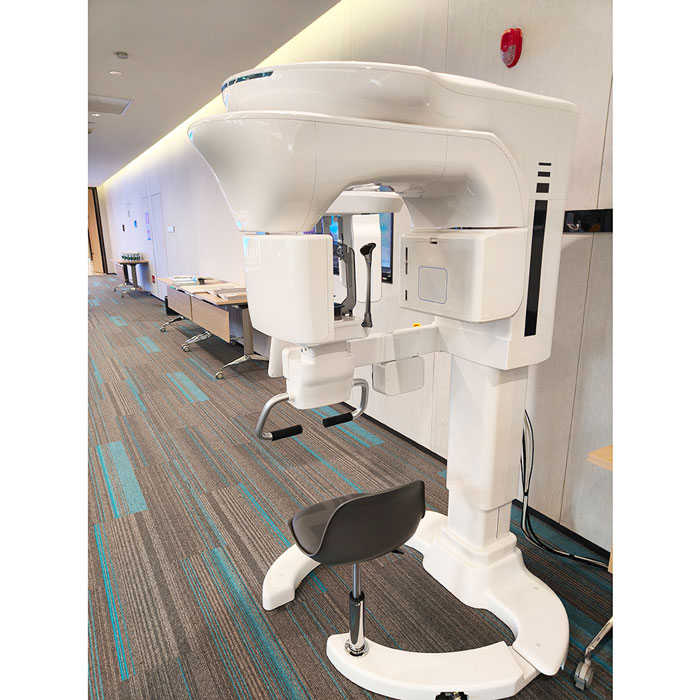

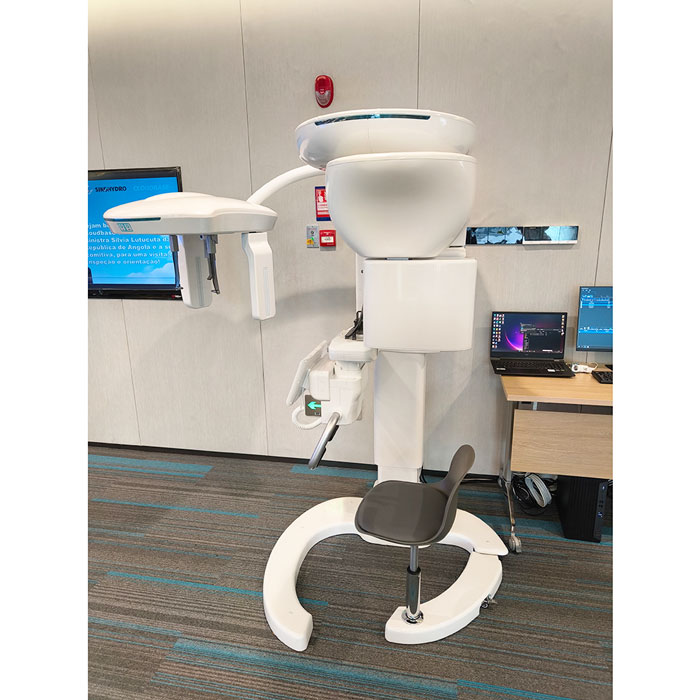

MSLDX23 Low‑Dose Dental CBCT | Multi‑FOV 0.05mm Voxel Cone Beam CT with OPG Ceph
Product Name:  MSLDX23 Low‑Dose Dental CBCT | Multi‑FOV 0.05mm Voxel Cone Beam CT
Latest Price:
Model No.:  MSLDX23
Weight:  Net weight: Kg
Minimum Order Quantity:  1 Set Set/Sets
Supply Ability:  300 Sets per Year
Payment Terms:  T/T,L/C,D/A,D/P,Western Union,MoneyGram,PayPal
Size:
Color:
QTY:

Quick Details

The MSLDX23 low‑dose dental CBCT is an all‑in‑one multi‑FOV cone beam CT scanner delivering ultra‑sharp 0.05mm voxel resolution. Equipped with LDira low‑dose reconstruction algorithm, it reduces radiation exposure for both adult and pediatric patients while retaining diagnostic image quality. This integrated unit supports CT, segmented OPG and Ceph imaging, featuring 0.8‑second fast scan, metal artifact correction and intelligent software functions including implant simulation, bone mineral densitometry and automatic cephalometric tracing. Thanks to the ergonomic sliding chair, patients can complete scanning either sitting or standing to minimize motion artifacts. Compact footprint makes it ideal for small‑to‑midsize dental clinics and oral hospitals across Southeast Asia, Latin America and Africa. CE‑compliant with complete after‑sales support for global dental procurement.

Packaging & Delivery

Packaging detail:Standard export package
Delivery detail:within 7-10 workdays after receipt of payment

Specifications

Scan FOV Options

  • Three flexible FOV sizes: 18×14cm, 16×12cm, 18×10cm
  • Ultra‑wide FOV supports non‑fusion one‑scan imaging
  • Visualizes full dentition, TMJ and maxillary sinuses for sinus lift and zygomatic implant surgery
  • Continuous output up to 200 sets of high‑quality images

Image Resolution

  • Minimum voxel size: 0.05mm, delivers ultra‑sharp diagnostic details
  • Supports maxillofacial and partial CT scanning for diverse clinical cases

Integrated Imaging Modes

  • CT mode: Full & partial cone beam CT scanning
  • OPG: Standard OPG & segmented OPG; segmented scan reduces repeated radiation exposure
  • Ceph: Two optional detectors
    1. Linear array detector: High‑resolution cranial and metacarpal bone images
    2. One‑shot flat‑panel detector: 0.8s low‑dose fast imaging
  • Optional intraoral X‑ray device with two installation solutions
  • Single‑room installation to save clinic space and cut costs

Low‑dose & Advanced Reconstruction Algorithms

  • LDira Automatic Low‑dose Algorithm Adult: 90kV‑4mA; Pediatric:70kV‑2mA, balances low radiation and high‑definition output
  • Macra Motion Artifact Clear Reconstruction Algorithm: Eliminates patient‑movement image artifacts
  • 3D Truth Recovery Metal Artifact Correction Algorithm: Reduces metal‑caused noise to avoid extra patient exposure
  • Total Variation Wavelet‑Based Noise Reduction Algorithm: Efficient frequency‑domain & time‑domain denoising
  • Hardening Artifact Correction Algorithm: Clear visualization of bone and soft‑tissue structures
  • Dynamic Focusing Tomosynthesis Algorithm: Auto‑adjust grayscale and sharpness along dental arch
  • Clear‑Vision Algorithm: Minimizes ghost image and distortion from spine or airway interference

Intelligent Diagnostic Software Features

  • Automatic mandibular nerve marking
  • TMJ diagnosis & airway segmentation
  • Regional bone mineral densitometry
  • Pre‑operative and post‑operative data comparison
  • Fully automated cephalometric tracing & report generation
  • Dental implant simulation (Panoramic & MPR interface)
  • Automatic dental arch curve labeling, quick CT & panoramic report generation

Patient Positioning & Hardware Design

  • Integrated sliding chair: Supports sitting & standing scan modes; improves experience for elderly and disabled patients; sitting scan lowers motion‑artifact risks
  • Anti‑motion monitor: Alerts operators for movement that degrades image quality
  • Electric jaw rest: 0.1‑mm minimal moving range for precise positioning
  • Independently adjustable Ceph measurement height
  • Adaptive head clip: Auto‑tighten & loosen during scanning
  • Positioning laser lights for optimal patient alignment
  • Height‑adaptive measurement, auto‑adjust device height via software

After‑sales & Service

  • 365‑day online technical support
  • 30‑minute response, 1‑hour solution provision
  • 1‑on‑1 customized service for global dental clinic procurement
