Our dental CBCT scanner category covers high-performance new machines and fully certified refurbished cone beam CT equipment, tailored for global dental clinics, hospitals, and medical institutions in Southeast Asia, Latin America, and Africa. Supporting multi-FOV scanning, low-dose imaging, and precise 3D dental imaging, our CBCT devices perfectly fit clinical scenarios including implant planning, orthodontic diagnosis, and root canal treatment. All products are CE approved with stable quality and cost-effective prices. Every refurbished CBCT undergoes strict testing and calibration with complete test reports and after-sales warranty. We provide reliable professional dental radiology equipment and one-stop export solutions for global dental medical procurement.

MSLDX22 Dental CBCT | All‑in‑One CT PAN CEPH Cone Beam CT Scanner
Product Name:  MSLDX22 Dental CBCT | All‑in‑One CT PAN CEPH Cone Beam CT Scanner
Latest Price:
Model No.:  MSLDX23
Weight:  Net weight: Kg
Minimum Order Quantity:  1 Set Set/Sets
Supply Ability:  300 Sets per Year
Payment Terms:  T/T,L/C,D/A,D/P,Western Union,MoneyGram,PayPal
Size:
Color:
QTY:

Quick Details

MSLDX22 is an all‑in‑one dental CBCT cone beam CT scanner integrating CT, PAN and CEPH functions, built on Quartz 4 scan platform with adjustable 0.05‑0.25 mm voxel size and 2.2 lp/mm spatial resolution. Powered by deep‑learning reconstruction and T‑MAR AI metal artifact correction, it delivers clear images while lowering radiation exposure. It supports implant simulation, automatic neural tube marking, TMJ diagnosis, airway measurement and regional bone density statistics. Optional CephPro3D orthodontic software provides automated cephalometric tracing, VTO simulation and one‑click case reporting. Six positioning lasers and X‑type base accommodate wheelchair‑bound patients. Optional cloud storage enables multi‑terminal data sharing. Compact all‑in‑one design fits private dental clinics and oral hospitals across Southeast Asia, Latin America and Africa with comprehensive dental radiology workflows.

Packaging & Delivery

Packaging detail:Standard export package
Delivery detail:within 7-10 workdays after receipt of payment

Specifications

MSLDX22 Dental CBCT Product Specification

Quartz 4 Scan Platform & Scanning Modes

  • Core platform: Quartz 4 scan platform, flexible multi‑mode scanning
  • 360° rotation scan, generates up to 800 frame raw images
  • Supported scan modalities: CBCT, PAN(Panoramic), CEPH
  • CEPH supports PA / LAT projection and carpus shot for orthodontic workflow
  • Panoramic images reconstructed from 3D volume data; multi‑focus layers adapt to variable dental arch shapes

Field of View & Image Performance

  • Multiple optional FOV: 12×10cm, 8×8cm, 5×8cm, 15×10cm, 16×10cm
  • Voxel size: 0.05‑0.25 mm adjustable
  • Spatial resolution: 2.2 lp/mm
  • X‑ray tube: Small focal spot 0.5 (IEC 60336) for enhanced image quality
  • Detector: CsI+ (CMOS/TFT)
  • Reconstruction time: <60s

Exposure Parameters

  • Tube Voltage (CT / PAN / CEPH): 60‑100 kV
  • Tube Current (CT / PAN / CEPH): 2‑10 mA
  • CT Exposure Time: 9.5 s / 12.5 s / 18.5 s
  • PAN Exposure Time: 8.1 s / 18 s
  • CEPH Exposure Time: 7.5 s / 10.1 s / 11.8 s

AI‑Driven Imaging Algorithms

  • Deep‑learning CT reconstruction algorithm: Improve image definition and achieve AI low‑dose control
  • T‑MAR AI metal artifact correction: Intelligently remove metal artifacts while preserving original clinical data
  • AI auto‑focus & multilayer panoramic technology: Auto‑fit optimal panoramic curve
  • Automatic neural tube labeling on CBCT images for implant planning

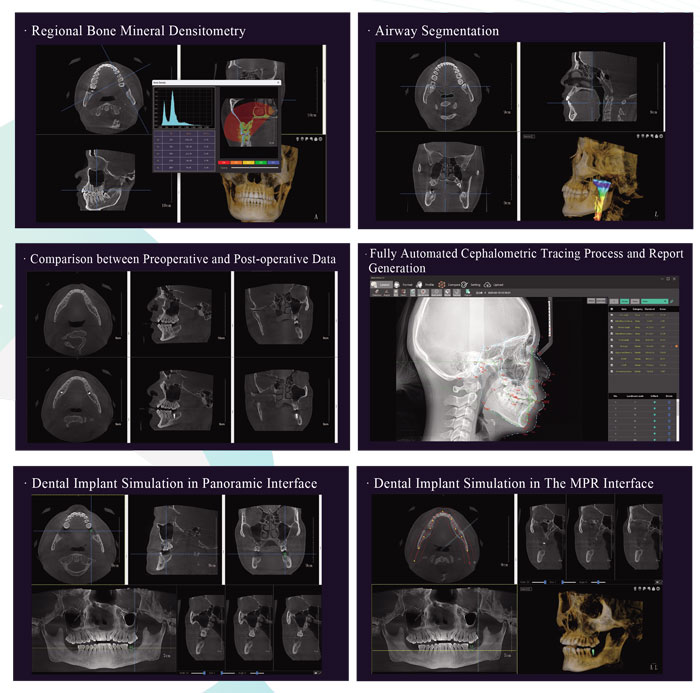

SmartVPro Diagnostic Software Features

  • Multi‑modality image support for CT, PAN and CEPH
  • Simulated implant function: Auto‑highlight neural tube, evaluate bone mass for implant surgery
  • TMJ diagnosis: Bilateral temporomandibular joint comparison for disease assessment
  • Airway measurement: Auto‑segment airway, calculate volume and narrow cross‑section
  • Regional bone mineral density statistics
  • 3D fine reconstruction for target‑of‑interest area
  • Optional cloud storage: Multi‑terminal case storage and data synchronization

Optional CephPro3D Orthodontic Software

  • VTO orthodontic effect simulation; image‑photo superimposition
  • Built‑in 19 measurement methods, supports custom measurement items
  • One‑click visual orthodontic report generation, patient privacy auto‑protection
  • Clinical stage intelligent tracking, complies with ABO standards
  • Optional AI CEPH measurement: Auto‑identify anatomical landmarks and output reports

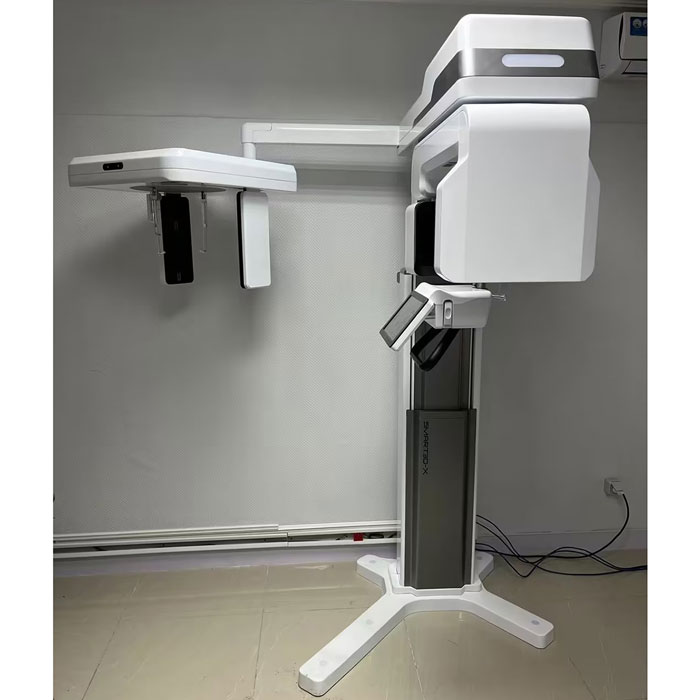

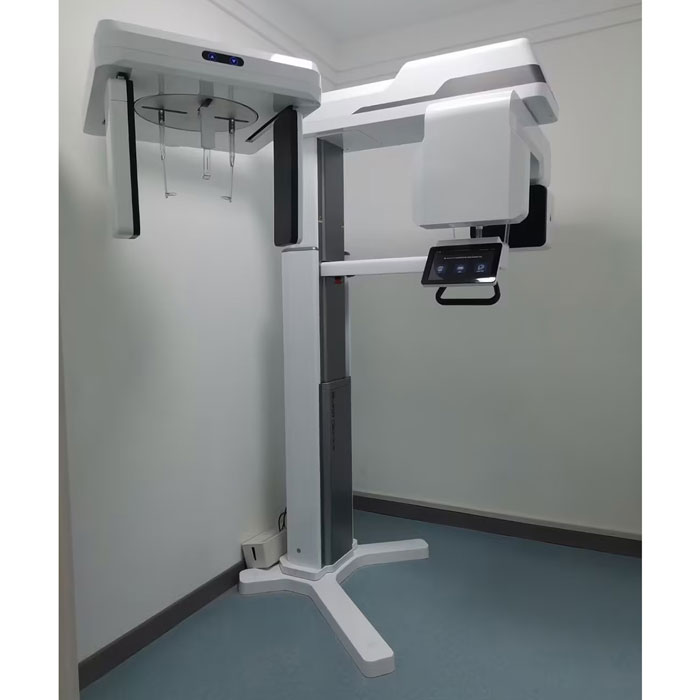

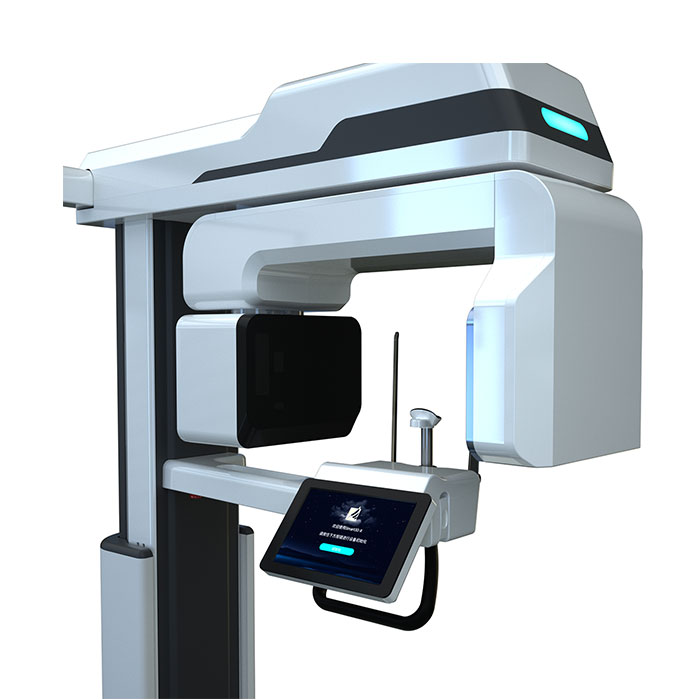

Human‑Centered Hardware Design

  • Six positioning lasers for precise patient positioning
  • X‑type base, friendly for wheelchair‑bound patients
  • 10‑inch LED touch screen
  • Built‑in storage box; voice reminder function
