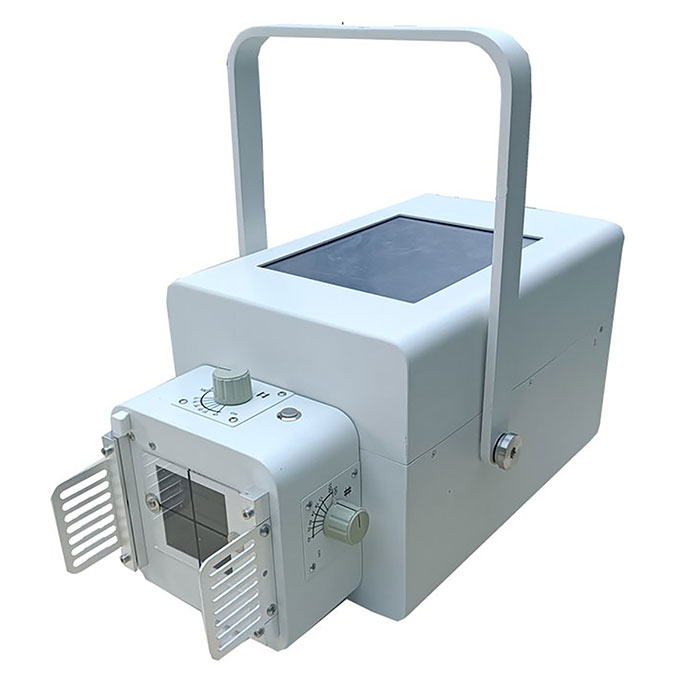

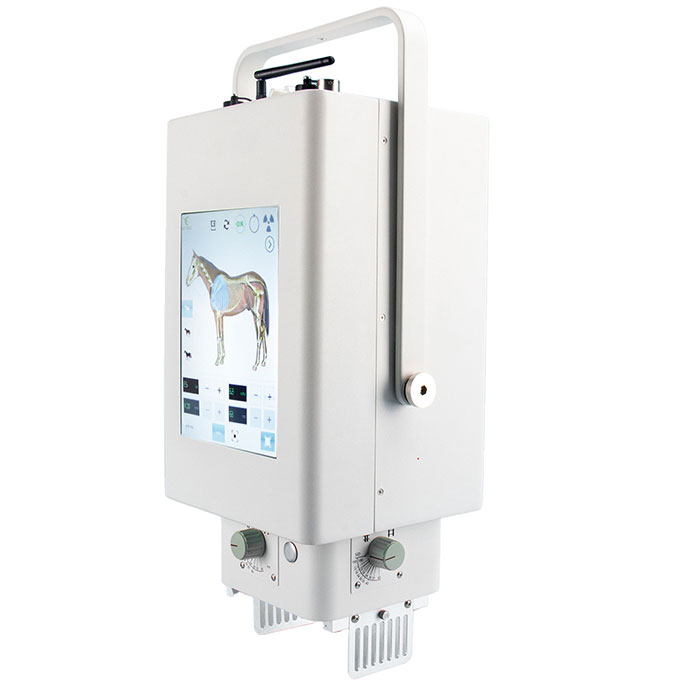

Product Specifications - MSLAB1384 High Frequency X-ray Source (Human Medical Radiography)

This professional high frequency X-ray source is engineered for human clinical diagnostic radiography, featuring high power output, precise parameter control and multi-mode communication. As a high-performance 10kW medical X-ray unit, it meets the strict demands of clinical medical imaging applications with stable and reliable performance. Below are its full technical specifications:

Basic Core Parameters

• Working Frequency: 80kHz ~ 250kHzThe wide high-frequency range makes this 80-250kHz radiography X-ray adaptable to diverse human medical radiography scenarios with consistent energy output.
• Input Voltage Range: 100~240VAC / 48VDC
• Input Frequency Range: 50/60Hz±1HzDual voltage input and wide frequency adaptability ensure stable operation in different power supply environments for clinical use.

Output Performance

• Max Power: 10kW
• Nominal Power: 8kWHigh power output is the core advantage of this 10kW medical X-ray unit, supporting clear and detailed human medical radiography imaging.
• kV Range: 40~125kVThis 40-125kV X-ray source offers flexible voltage adjustment to match the imaging needs of different human tissues and body parts.
• kV Ripple: ≤4% @100kV
• kV Rising Time: ≤1ms @100kV (10%~90%)
• Exposure kV Accuracy: ±5% @≥100kV or ≤4kV @<100kV
• mA Range: 5~150mA
• Exposure Tube Current Accuracy: ±(5%+1mA) @≥10ms; ±20% @<10ms
• mAs Range: 0.1~360mAs (220VAC:0.1~250mAs; 110VAC:0.1~100mAs; 48VDC:0.1~360mAs)
• mAs Accuracy: ±(5%+0.2mAs) @>5ms; ±(10%+0.2mAs) @≤5ms
• Exposure Time Range: 2ms~10000ms
• Exposure Time Accuracy: ±(2%+0.2ms) @>5ms; ±(5%+1ms) @≤5ms

Core Functional Features

• Auto-tube Calibration: YesThe built-in auto-calibration function ensures consistent imaging quality for this auto-tube calibration X-ray source in long-term clinical use.
• Technique Selection: 2 optional modes (kV-mA-ms; kV-mAs)Flexible parameter setting modes meet the personalized operation needs of medical radiography technicians.
• Service Software: YesSupports professional device maintenance, parameter adjustment and real-time data management for clinical convenience.

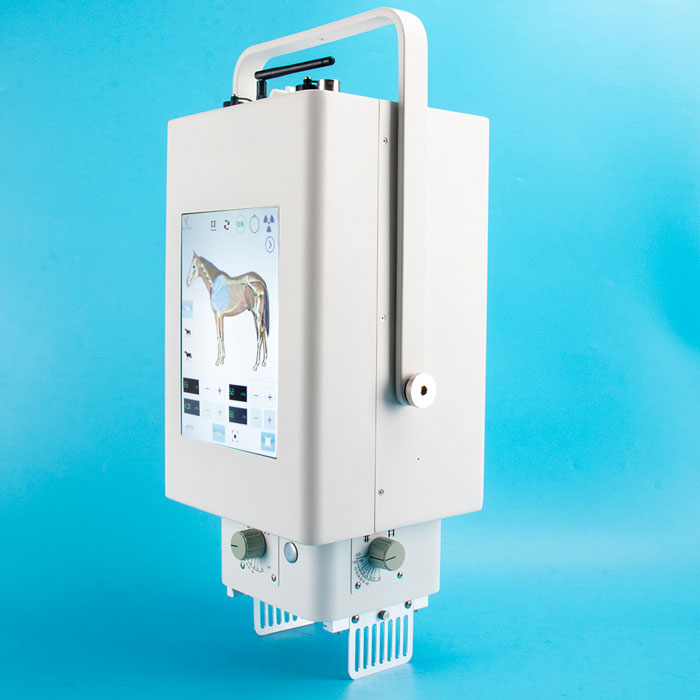

Monoblock Performance

• Tube Model: KL20SB-2.0-120
• Nominal Focal Spot Size: 2.0mmOptimized focal spot size ensures clear and sharp imaging for human medical radiography applications.
• Maximum Anode Heat Storage Capacity: 30kJ
• Anode Disk Target Angle: 15°
• Filament Frequency: 20kHz±2kHz
• Max Filament Current: 4.2A

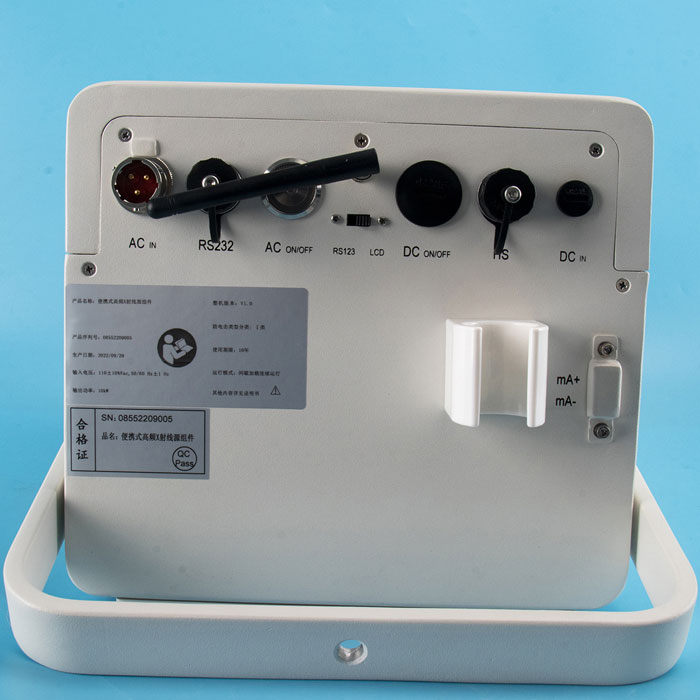

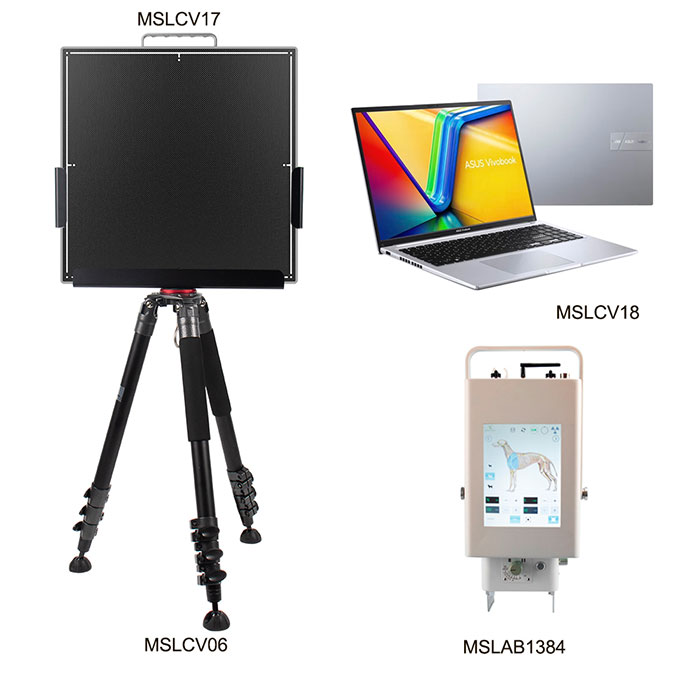

Communication Interfaces

This WIFI CAN2.0 RS232 X-ray source is equipped with triple communication modes for seamless clinical data transmission:

• WIFI: Yes
• CAN2.0: Yes
• RS232: Yes

Optional Accessories

• Hand Switch: Yes (Optional)Humanized accessory design for convenient and intuitive operation of the medical radiography device in clinical settings.

Environment & Safety Requirements

• Grounding Resistance: ≤200mΩ
• Insulation Voltage: 1500VAC
• Earth Leakage Current: ≤2.5mAComplies with strict medical device safety standards, ensuring safe use in human clinical radiography environments.
• Cooling System: Natural air coolingThe natural air cooling X-ray unit features a simple and low-maintenance cooling structure for stable 24/7 operation.
• Operating Temperature: 0°C~40°C
• Operating Humidity: 30%~80%, Non-condensing
• Atmospheric Pressure: 700hPa~1060hPa

Appearance & Dimensions

• Product Size (WDH): ≤550mm280mm230mmCompact design allows easy installation and placement in various clinical medical radiography rooms.
• Net Weight: ≤16kg (No housing included)Lightweight construction facilitates device movement, deployment and routine maintenance in clinical environments.
