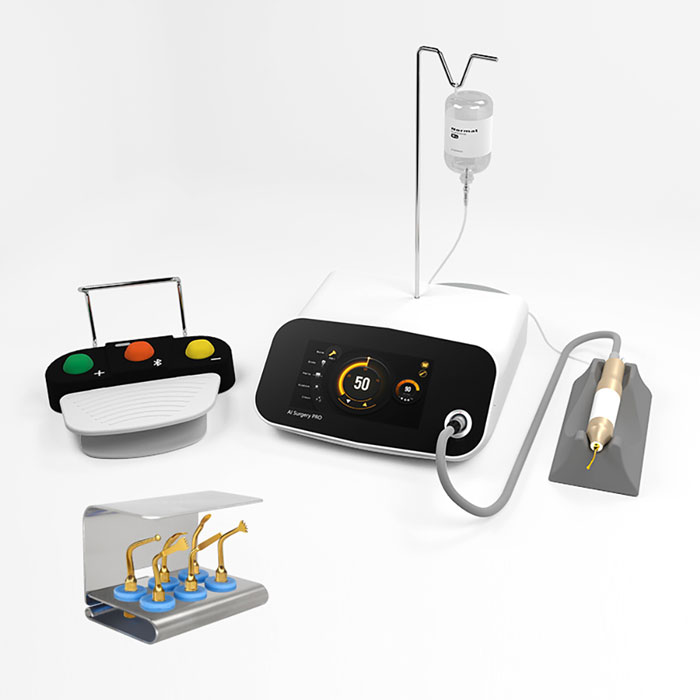

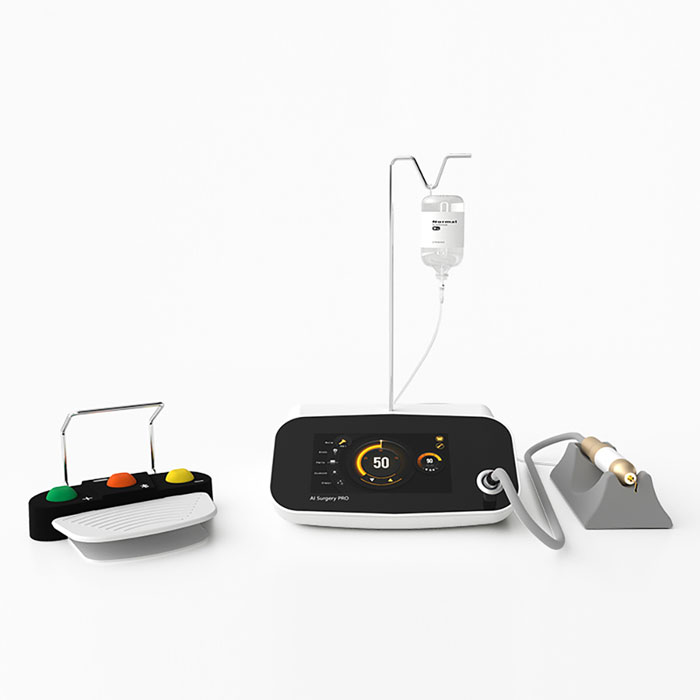

MSLCAM09 Piezo Bone Surgery Unit - Product Specification
1. Product Basic Information
- Product Name: MSLCAM09 piezo bone surgery unit
- Brands: EGRETMED; Manufactured by MEDSINGLONG CO LTD
- Core Advantages: Safe & Reliable, Clear Surgical Vision, Ultra Silence
2. Core Technical Parameters
| Parameter Category |
Details |
Keyword Integration |
| Electrical Parameters |
- Max. Power Consumption: 150VA- Operating Voltage: AC 100~240V- Fuses: 2×F10A 250V |
- |
| Working Performance |
- Working Frequency: 24kHz-36kHz- Water Flow Rate: 60~100ml/min- Noise Level: ≤45dB- Amplitude: Radial 20-200μm / Horizontal <30μm- Handpiece Temperature: ≤33℃ (10min full-power operation) |
24-36kHz bone surgery device; 60-100ml/min water flow piezo device; ultra-silent 45dB piezo unit |
| Structural & Design |
- Waterproof Level: IPX1- Peristaltic Pump: 5-rotor imported stepper motor (3-second hose replacement)- Touch Screen: 7-inch 360° color LCD full-touch non-reflective screen |
IPX1 waterproof bone surgery unit; HD touch screen bone surgery tool |
| Applied Parts |
Water Applied Parts: Handpiece and piezo tips |
- |
3. Key Functional Advantages
- Precision & Safety: High-intensity focused ultrasonic only acts on bone tissue (specific hardness), no damage to blood vessels/nerve tissue – the MSLCAM09 piezo bone surgery unit ensures safe surgical procedures.
- AI-Powered Stability: Equipped with AI processing chip and real-time frequency tracking algorithm – this AI positioning piezo osteotomy tool maintains stable operation and precise tissue processing.

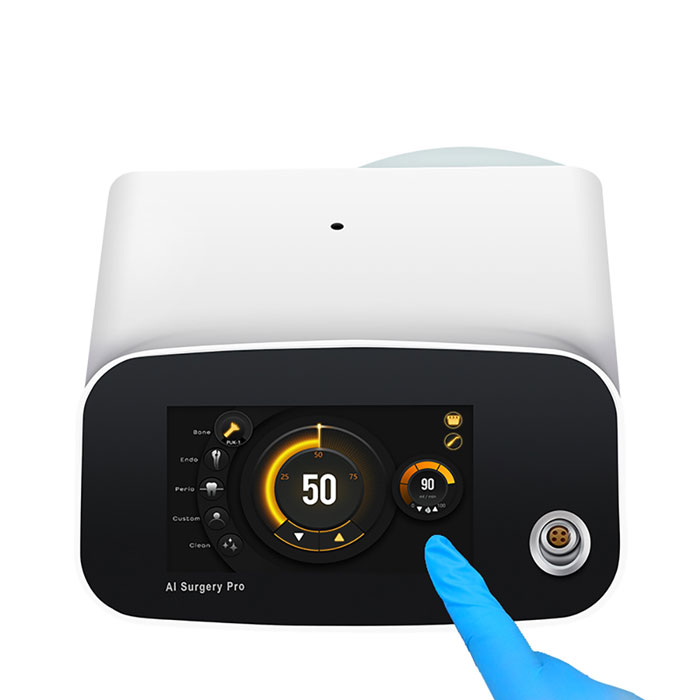

- User-Centric Design: 7-inch 360° full-touch screen with clear display and intuitive working tips – the HD touch screen bone surgery tool simplifies operation for surgeons.
- Silent Operation: ≤45dB noise from the 5-rotor stepper motor – the ultra-silent 45dB piezo unit creates a quiet clinical environment, reducing patient anxiety.
- Reliable Water Supply: 60-100ml/min adjustable water flow – the 60-100ml/min water flow piezo device ensures clear surgical vision and prevents overheating.
4. Operation Modes & Control
- Multiple Operation Modes: Bone, Endo, Perio, Custom, Cleon – this multi-mode dental piezo surgery unit adapts to osteotomy, periodontal treatment, endodontics, and other scenarios.

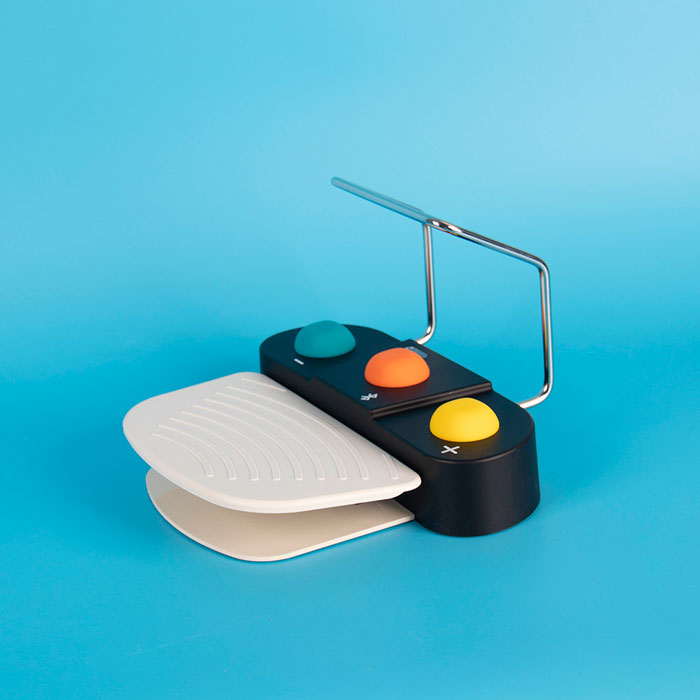

- Foot Pedal Features: Supports cable connection and Bluetooth wireless (10m signal range) – controls water flow, program switching, rotation direction, and power, enabling hands-free operation.
5. Standard Components

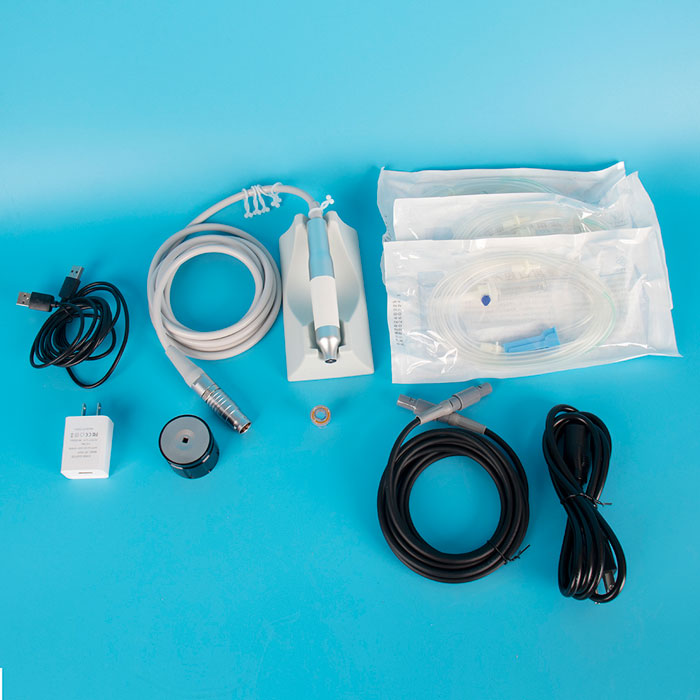

- Electrical Accessories: Power Cord, Control Terminal, Foot Switch, Foot Switch Power Adapter

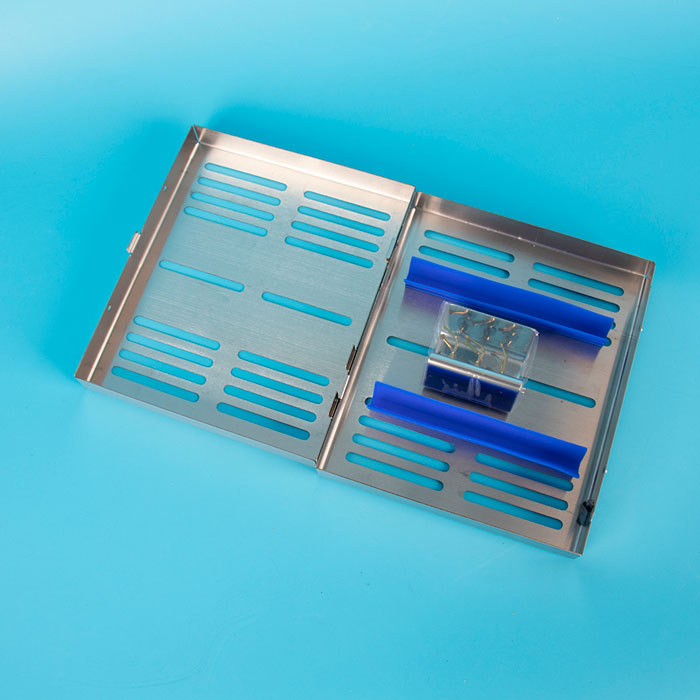

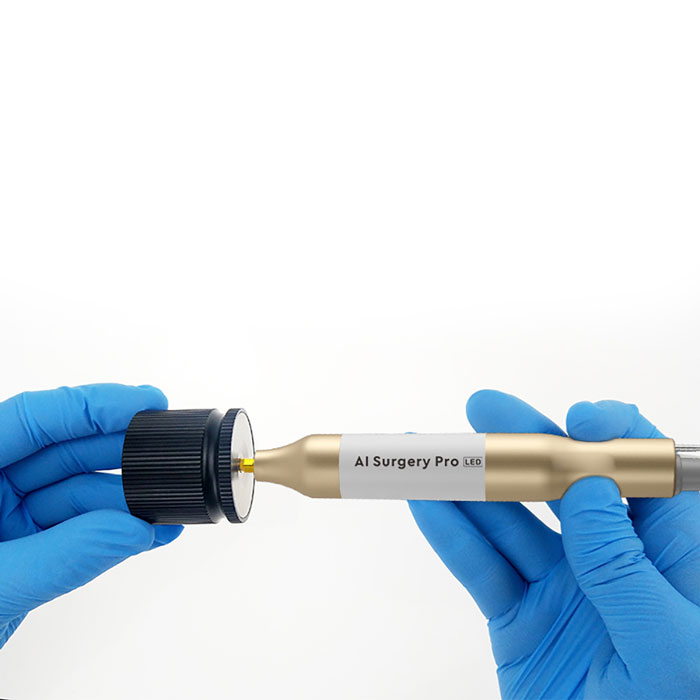

- Core Tools: Handpiece with Cable, Handpiece Holder, Sterilize Box, Torque Wrench
- Auxiliary Parts: Water Bottle Bracket, Disposable Gum Rinser, Tips Holder

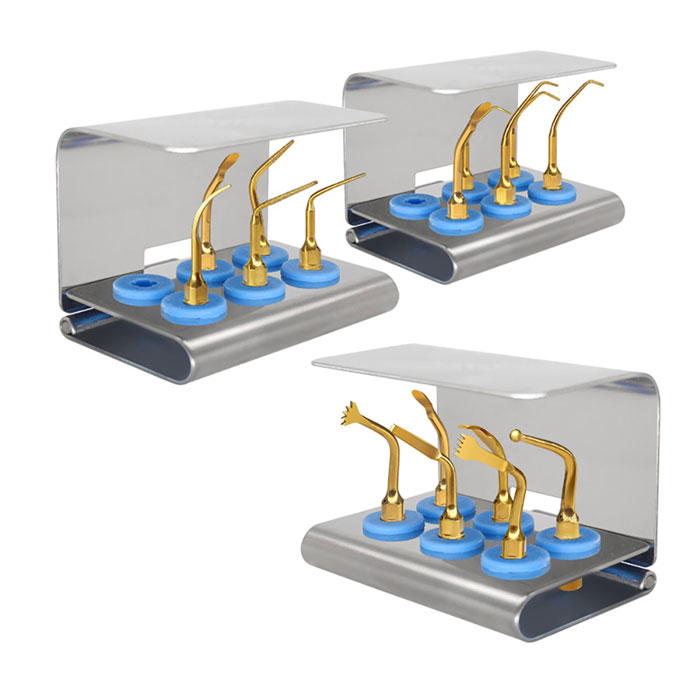

- Surgical Tips Kits: Extraction kit (PCK-1/2/3), Retro surgical kit (PEK-1/2/3/4), Osteotomy Kit (PSK-1/2/4/5), Basic kit (PSK-4/PPK-2/4/5/7), Periodontal kit (PLK-1/2/3/4/5), Sinus lift kit (PLK-1/2/3/PCK-1)
6. Product Application Scope
Suitable for dental clinics, oral surgery centers, and dental hospitals – the MSLCAM09 piezo bone surgery unit is ideal for tooth extraction, osteotomy, periodontal treatment, sinus lift, and endodontic procedures, providing precise and efficient solutions for oral professionals.
