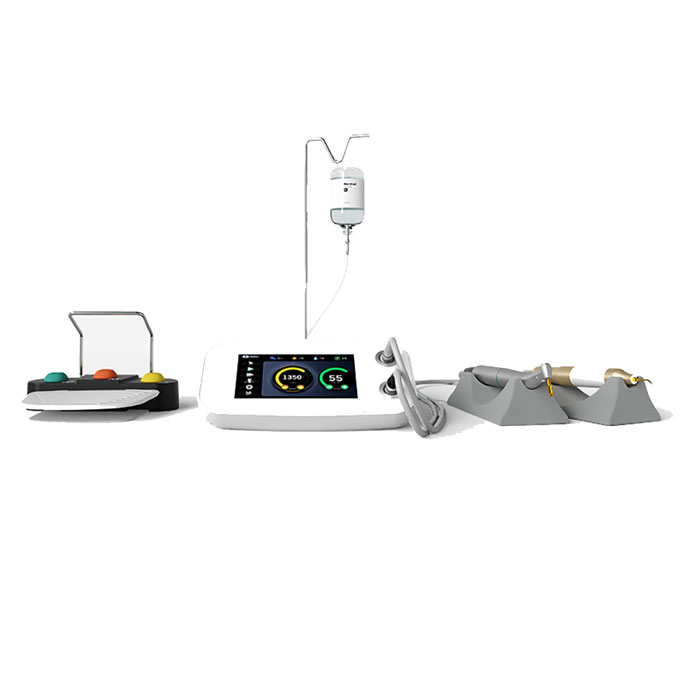

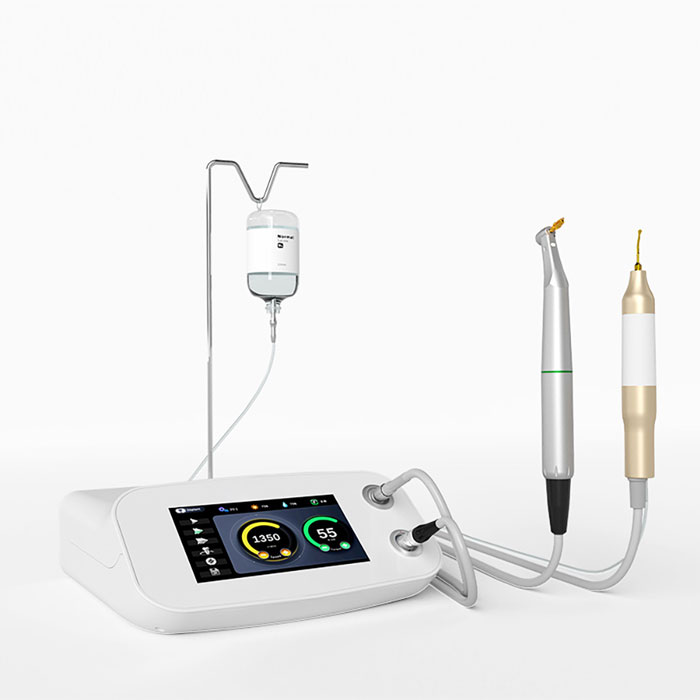

MSLCAM07 2-in-1 Implant & Bone Surgery Unit - Product Specification
1. Product Basic Information
- Product Name: MSLCAM07 2-in-1 implant & bone surgery unit (dual-mode: Implant Mode + Bone Surgery Mode)
- Brand: MEDSINGLONG CO LTD
- Core Slogan: Ultra Silence, HD Touch Control, AI Positioning – Safe & Efficient Dual-Mode Dental Surgery
2. Core Technical Parameters
| Parameter Category |
Details |
Keyword Integration |
Document Mark |
| Electrical Specifications |
- Rated Voltage: AC 100~240V- Max. Power Consumption: 100VA- Working Frequency (Power Supply): 50Hz- Operation Mode: S3 (3/10min)- Fuse: 2×F10A 250V |
- |
、 |
| Surgery Mode (Bone Surgery) |
- Working Frequency: 24Hz-36Hz- Water Flow Rate: 60~100ml/min- Water Applied Parts: Handpiece and piezo tips- Noise Level (Contra Angle): ≤65dB |
24-36kHz dental surgical device; 60-100ml/min water flow surgical unit |
、、、 |
| Implant Mode |
- Speed Range: 100~40,000 rpm (±10%)- Max. Torque: 70N·cm- Speed Ratios: 1:1 / 1:4.2 / 1:5 / 20:1- Rotation Direction: Forward (F) / Reverse (R)- Cooling Water Flow Adjustment: 0%/25%/50%/75%/100% |
0-70N·cm torque implant machine |
、、 |
| Motor & Contra Angle |
- Motor Type: LED Brushless Motor (supports 134℃ sterilization)- Contra Angle: Cellular glass optic design, imported German bearing, radial runout <0.01mm |
brushless motor implant unit |
、、 |
| Display & Control |
- Touch Screen: 7-inch 360° color LCD full-touch non-reflective screen (clear direct viewing, easy operation)- Preset Programs: 4 custom programs (Program1~Program4) |
HD touch screen dental surgery tool |
、、 |
| Peristaltic Pump |
- Motor Type: 5-rotor imported stepper motor- Noise Level: ≤45dB- Hose Replacement: 3-second quick change (tight seal, no gaps)- Flow Control: Precise rotation angle control for stable water flow |
ultra-silent 45dB dental unit |
、、、、 |
3. Dual Working Modes (Core Function)
3.1 Implant Mode
Designed for dental implant procedures, with simple operation, precise torque control, and stable motor performance – this AI positioning implant tool ensures safety and stability of rotary instruments during implant placement . It supports real-time display of output torque and speed, and 4 preset programs to adapt to different implant stages (drilling, tapping, placement), improving surgical efficiency.
3.2 Surgery Mode
Focused on bone and oral surgery, with 5 specialized sub-modes: Bone mode, Endo mode, Perio mode, Custom mode, Clean mode ~. The 24-36kHz dental surgical device uses high-intensity focused ultrasonic energy that only acts on bone tissue (avoids damaging blood vessels/nerve tissue), and 60-100ml/min adjustable water flow ensures clear surgical vision, making it suitable for osteotomy, periodontal treatment, and endodontic procedures.
4. Key Functional Advantages
- AI Positioning: Equipped with AI positioning technology to optimize surgical precision, reducing human error in implant and bone surgery .
- Ultra-Silent Operation: The 5-rotor stepper motor-driven peristaltic pump and low-noise contra angle keep noise ≤45dB (pump) and ≤65dB (contra angle) – the ultra-silent 45dB dental unit creates a comfortable clinical environment for patients and doctors 、.

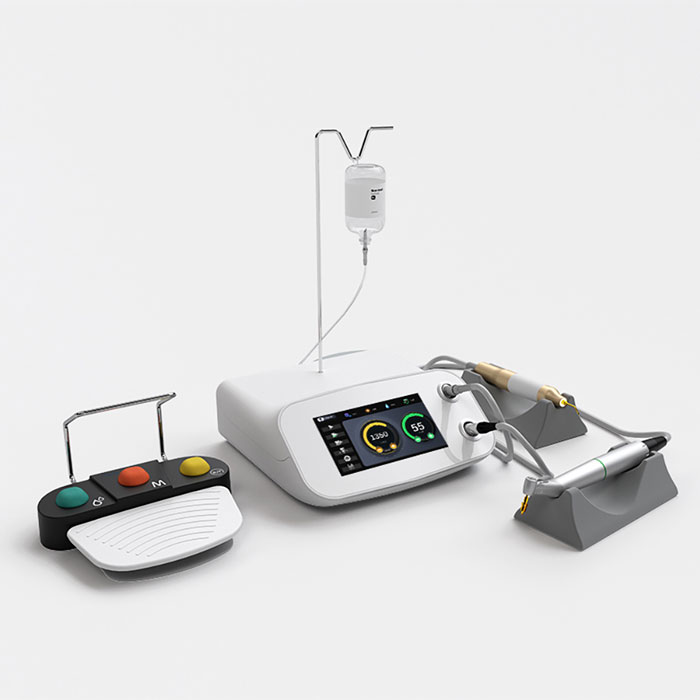

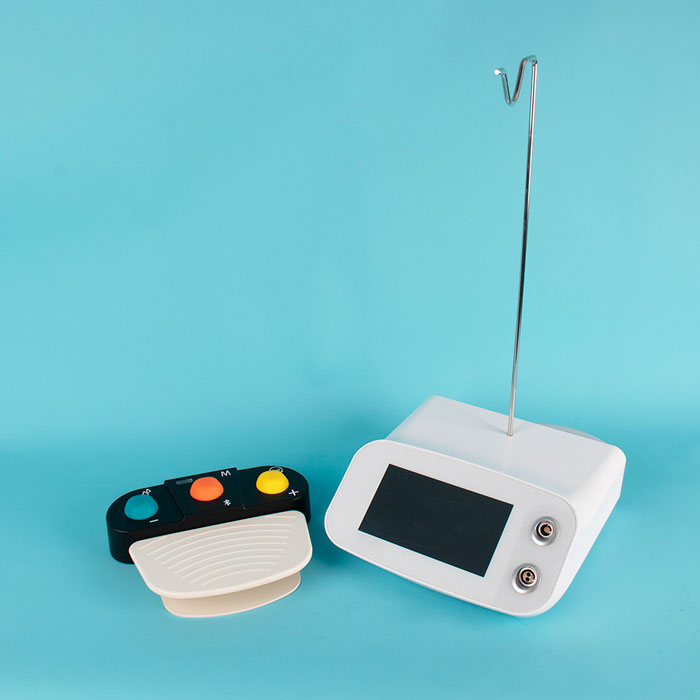

- Multifunctional Foot Pedal: Supports cable connection and Bluetooth wireless connection (10m signal range), enabling hands-free control of water flow, program switching, rotation direction, and power – simplifying surgeon operations 、.
- Sterilization Compatibility: The LED brushless motor supports 134℃ high-temperature sterilization, meeting strict clinical hygiene standards .

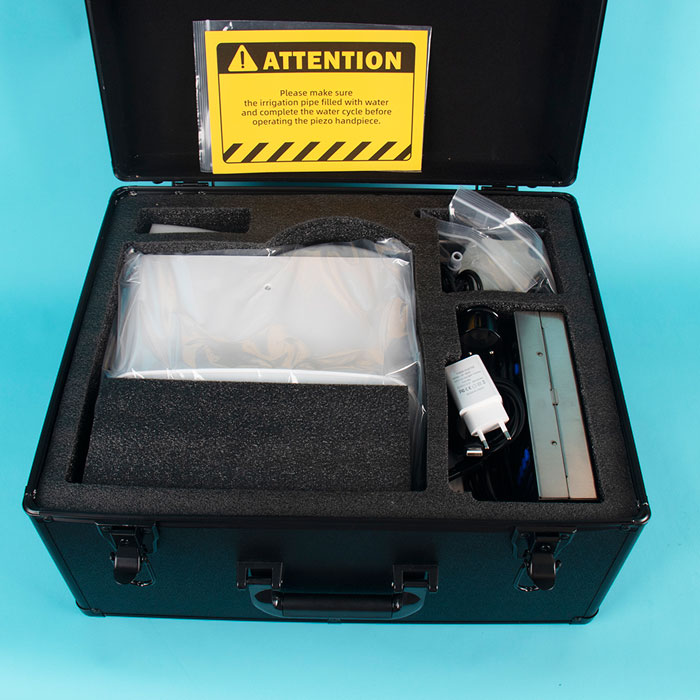

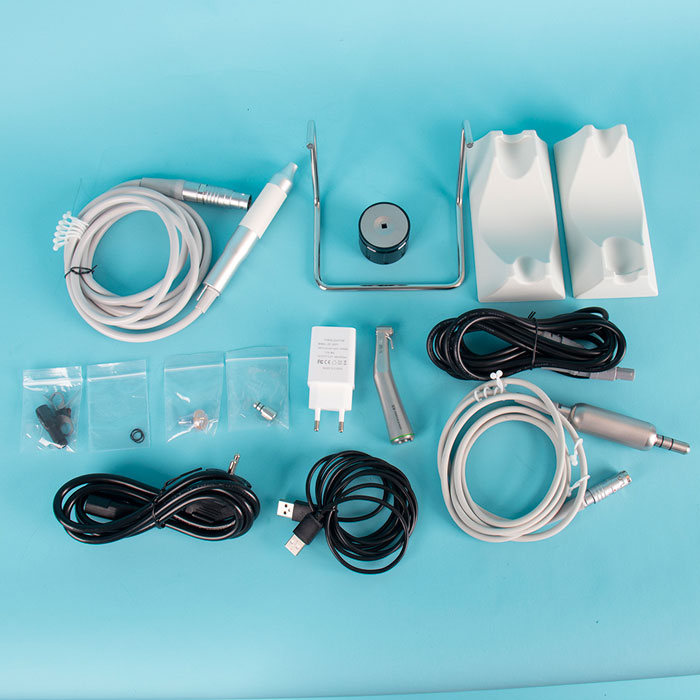

5. Standard Accessories
- Control terminal, power cord, LED brushless motor handpiece (with cable), handpiece holder
- Sterilize box, torque wrench, 5-rotor peristaltic pump
- Multifunctional foot pedal + foot pedal power adapter

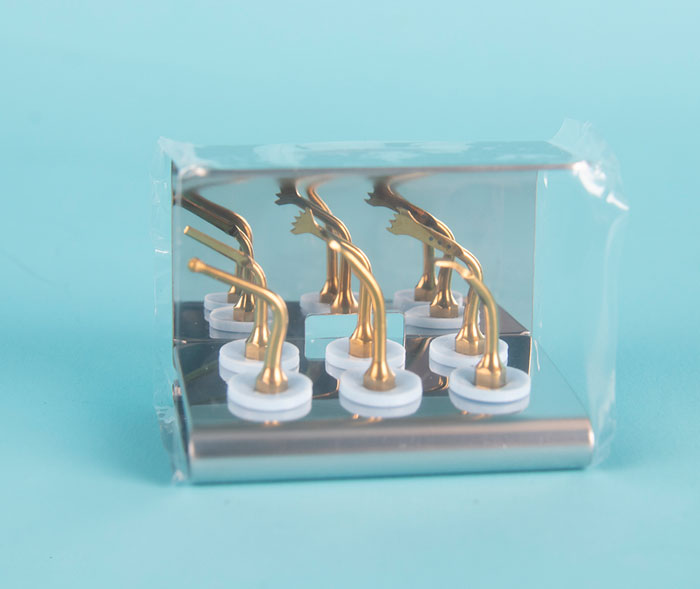

- Water bottle bracket, disposable gum rinser, tips holder + surgical tips (implant kit, bone surgery kit)
6. Application Scope
Ideal for dental clinics, oral surgery centers, and dental hospitals – the MSLCAM07 2-in-1 implant & bone surgery unit integrates two core functions in one device, eliminating the need for separate equipment for implants and bone surgery. It is widely used in dental implant placement, jaw osteotomy, periodontal scaling, and endodontic treatment, providing a cost-effective and efficient solution for oral professionals.
