1. Product Overview

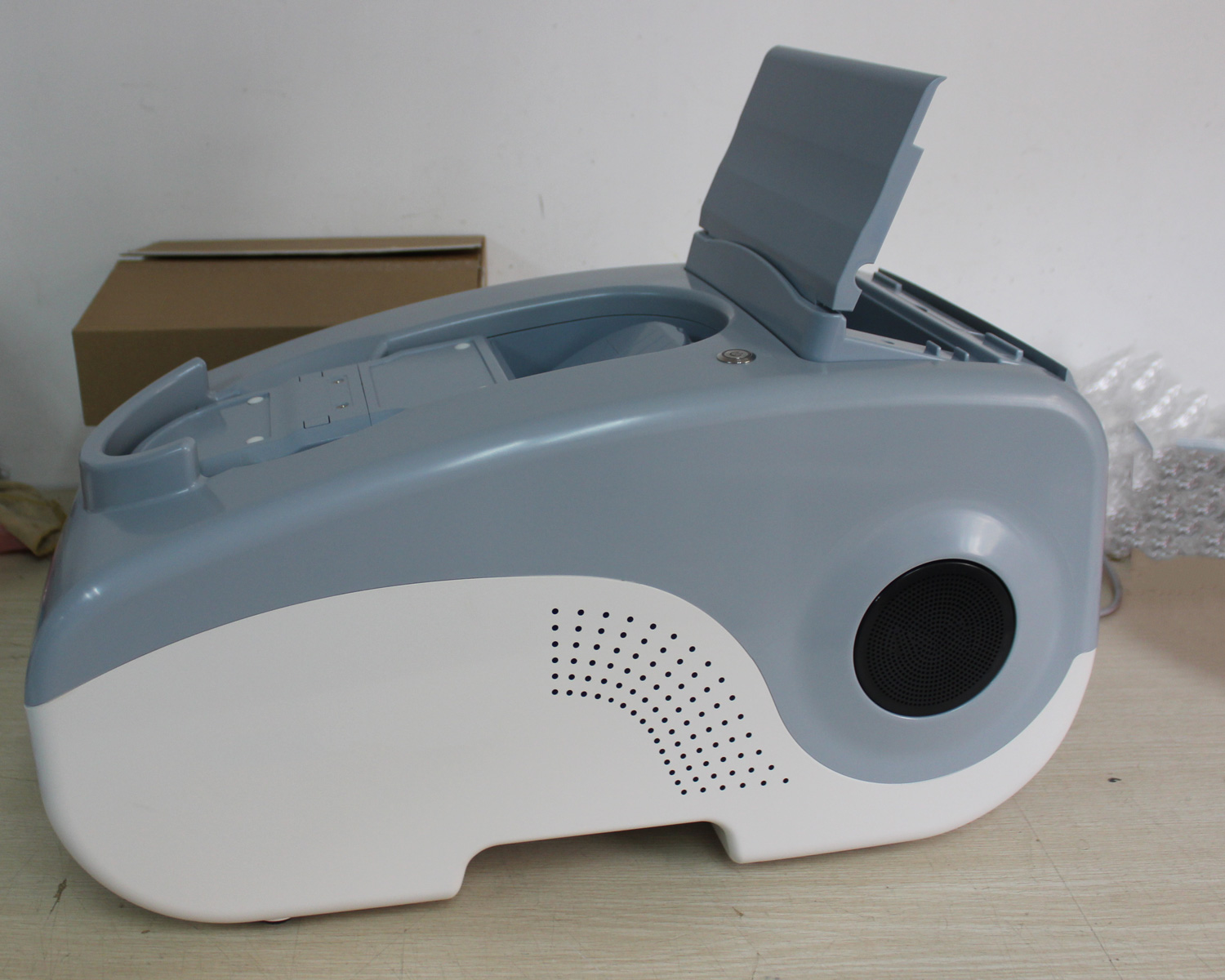

The MSLBD06 Portable Ultrasound Bone Densitometer Machine is a cutting-edge medical device designed for precise bone density assessment in both adults and children. Leveraging full dry-type technology (no liquid required) and automatic probe positioning, it delivers reliable measurements of BUA (ultrasonic amplitude attenuation), SOS (ultrasonic sound velocity), and OI (bone mass index) in ≤25 seconds. Ideal for hospitals, clinics, and mobile health units, this machine supports multi-parameter diagnostics, including T-value, Z-value, BMI, and height prediction, with built-in reference databases for Asian, European, Middle Eastern, and African populations.
2. Core Advantages
2.1 Effortless Operation for All Users
- Automatic Probe Positioning: Eliminates manual adjustments, ensuring consistent heel contact and optimal signal acquisition for accurate readings.
- Intuitive Software System: Features a user-friendly interface with Chinese/English language switching, guiding operators through seamless setup and test initiation.
- Pediatric-Friendly Design: Includes an animation playback function to engage children during testing, reducing examination time and improving compliance.
2.2 Precision & Speed
- Ultra-Fast Measurement: Completes full analysis in ≤25 seconds, enhancing throughput for high-volume screening scenarios.
- Laboratory-Grade Accuracy: Maintains SOS accuracy within ±2% and BUA repeatability within ±5%, supported by automatic temperature compensation to eliminate environmental interference.
- Dry-Type Technology: Requires no liquid coupling agents, simplifying maintenance and reducing cross-contamination risks.
2.3 Comprehensive Data Management
- Dual USB & Bluetooth Connectivity: Enables easy data transfer to tablets, laptops, or printers, with support for WeChat scan code self-download and PACS network integration.
- Built-in Thermal Printer: Generates instant A4/B5 color reports with clear graphs and diagnostic insights, ideal for on-site consultations.
- Case Database System: Automatically records, classifies, and backs up over 50,000 patient results, exportable to Excel for statistical analysis.
3. Technical Specifications
| Parameter |
MSLBD06 Details |
| Model |
MSLBD06 |
| Measurement Method |
Full dry-type, two-way ultrasonic transmission |
| Probe Frequency |
0.5MHz ± 10%, broadband >60% at -6dB |
| Test Time |
≤25 seconds |
| Accuracy (SOS) |
≤±2% |
| Sample Groups |
Adults & children (with height prediction for kids) |
| Power Supply |
AC220V ±10% / 50Hz, 125W |
| Weight & Size |
13kg, 330×360×645mm (compact portable design) |
| Operating Temperature |
10–40°C (humidity 30–70% non-condensing) |
4. Applications & Diagnostic Capabilities
- Clinical Uses:
- Osteoporosis diagnosis for adults (T-value, Z-value, fracture risk assessment).
- Pediatric bone health monitoring (BMI, obesity index, height prediction).
- Therapeutic evaluation for osteoporosis treatments and medication side effect assessment.
- Multi-Population Support: Preloaded with regional databases to ensure culturally relevant reference standards.
- Versatile Connectivity: Works with Windows XP/7/8/10 systems, compatible with external computers and a special work trolley for mobile clinics.
5. Why Choose MSLBD06?
- Safety First: Ultrasonic output ≤2.8×10⁻³mW/cm², radiation-free, suitable for repeated testing.
- Cost-Effective: Long-life oil bladder probe (no replacement needed) and low-power design reduce operational costs.
- Global Compliance: Meets international standards with DICOM 3.0 interface for seamless hospital system integration.
6. Package & Support
- Included Accessories: Host machine, foot plate, USB cable, calibration phantom, user manual, and program CD.
- After-Sales Service: Lifetime technical support, software updates, and a 2-year warranty for peace of mind.
- Manufacturer: MEDSINGLONG CO., LTD – A trusted name in medical equipment with 15+ years of expertise in bone densitometry.
