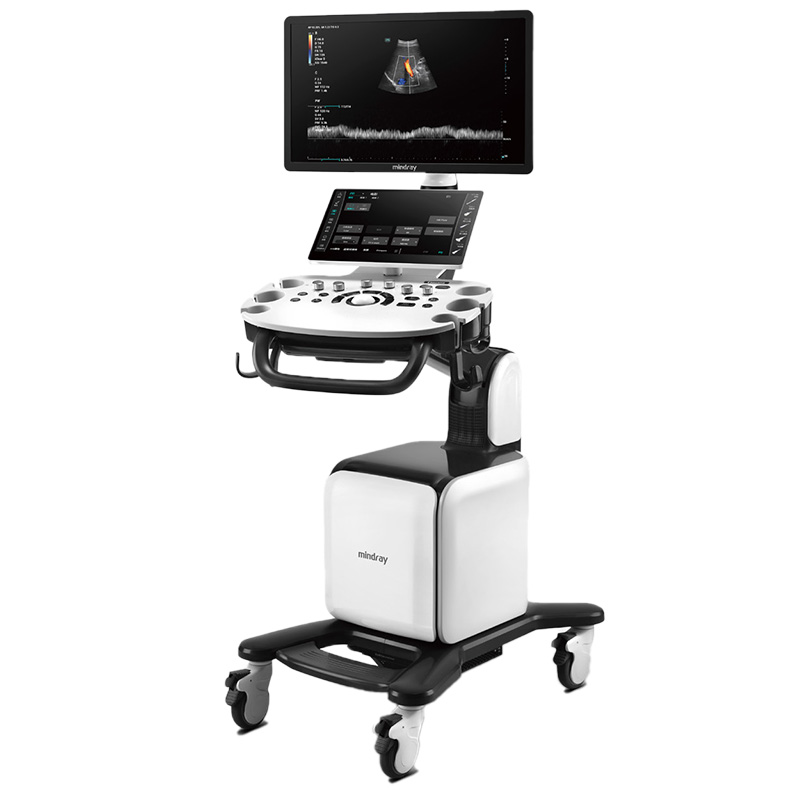

Mindray Consona N6 Ultrasound System | Compact 3D/4D Imaging for Clinics & Shared Facilities

Core Technical Specifications

Under Key Features:

• Compact & Mobile Ultrasound System for Shared-Service Facilities
• High-Resolution 13.3” Touchscreen & Floating Control Panel
• 60-Minute Battery Life for Portable Scanning Sessions

Under Advanced Imaging Technology:

• ZST+ Virtual Beamforming for Pixel-Perfect 2D Imaging
• Optional 3D/4D Configuration for Fetal & Complex Tissue Assessment
• Color Doppler & Strain Elastography for Vascular and Lesion Analysis

Under Ergonomic Design:

• Gesture-Powered Touchscreen for Intuitive Operation
• Waterproof Control Panel & Adjustable Foot Rest for Hygiene & Comfort
• Magnetic Cable Management for Clutter-Free Workspaces

Under Clinical Applications:

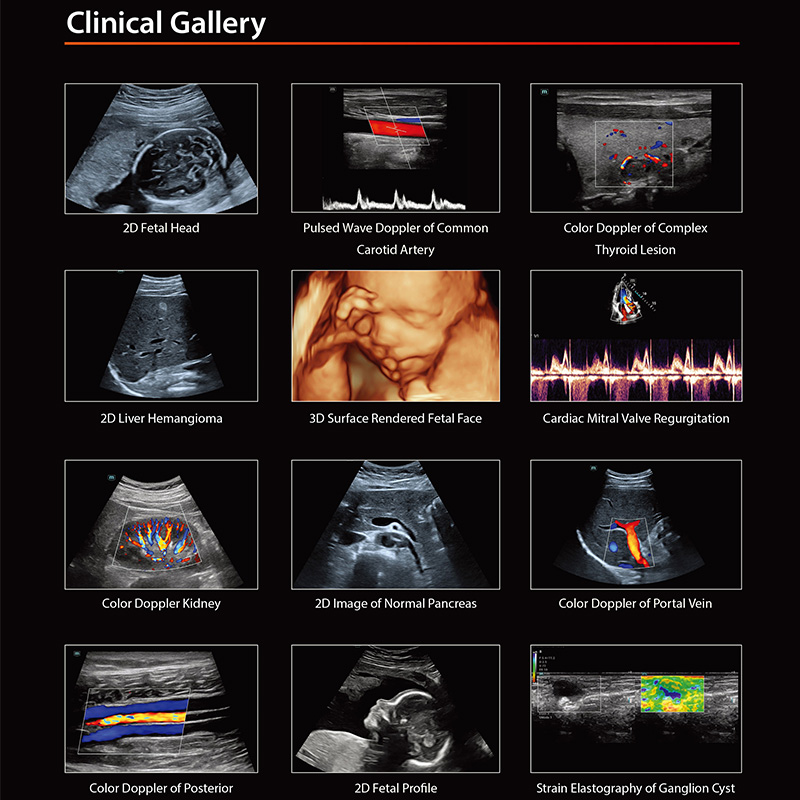

• Women’s Health: Fetal Imaging (2D/3D Fetal Profile, Face Rendering)
• Cardiovascular Care: Carotid Artery Doppler & Mitral Valve Analysis
• General Imaging: Liver, Kidney, Pancreas, and Thyroid Examinations

Under Investment Protection:

• 5-Year Standard Warranty: Main System, Transducers & Software Updates
• Living Technology™: Future-Proof Upgrades for Long-Term Performance
• Cost-Effective Ownership: Low Total Cost & Industry-Leading Support

1. Imaging Technology

• ZST+ Virtual Beamforming Technology: The industry’s first channel-data-based beamforming architecture for pixel-level precision, balancing resolution and frame rate without physical constraints.
• Multi-Mode Imaging: Supports 2D/B-mode, M-mode, Color Doppler (CW/PW), Elastography (RTE/STE), and Optional 3D/4D Volume Imaging.
• Advanced Features:
  • iClear Speckle Reduction: Enhances tissue details and reduces noise.
  • iBeam Spatial Compounding: Improves image uniformity through multi-angle synthesis.
  • Glazing Flow 3D Blood Flow Imaging: Visualizes dynamic blood distribution in three dimensions.
  • Shear Wave Elastography (STE/STQ): Quantifies tissue stiffness for tumor differentiation.

2. Probe Technology

• Probe Types: Supports convex (3C5A), linear (L13-3), phased array (V10-4), endocavity (P4-2), and other probes for abdomen, superficial, cardiac, and OB/GYN applications.
• Single-Crystal Probe Technology: Balances high penetration and resolution for deep-tissue imaging.
• ComboWave Technology: Enhances sensitivity for detecting complex lesions.

Hardware & Performance Parameters

1. Display System

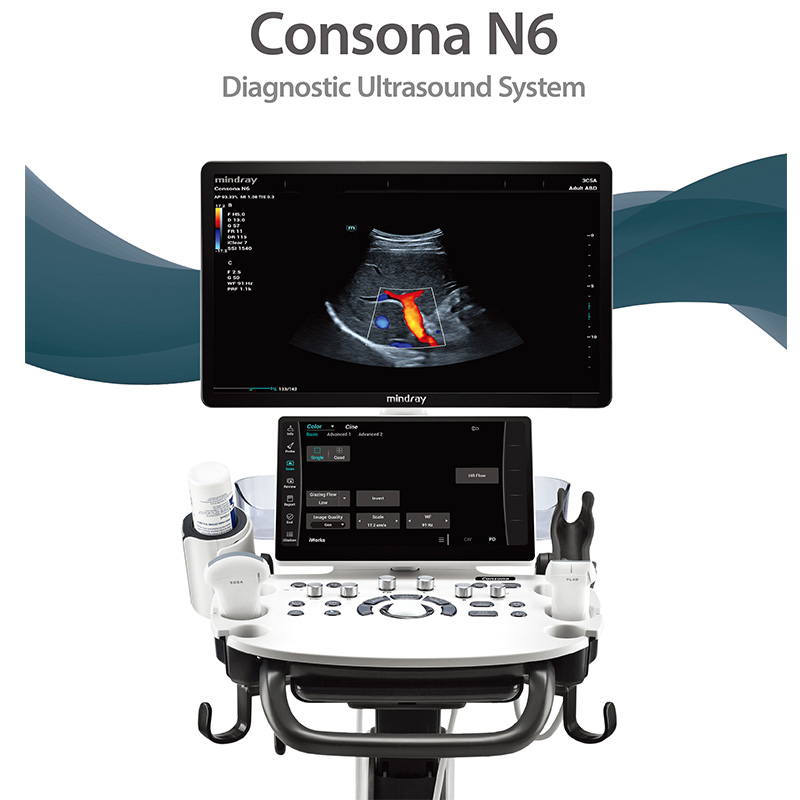

• Main Screen: 21.5-inch Full HD LED display (1920×1080 resolution), adjustable for multi-angle viewing.
• Touchscreen: 13.3-inch capacitive touch panel with gesture control and customizable quick menus.

2. Mobility & Battery

• Weight/Dimensions: 65kg, 54.3×87.5×97cm (W×D×H), with a four-wheel base for easy transport.
• Battery Life: Built-in lithium-ion battery for 60 minutes of continuous use, supports charging during operation.

3. Connectivity & Expandability

• Probe Ports: 3 hot-swappable electronic scan ports for multi-probe use.
• Data Interfaces: 2×USB 3.0, HDMI, LAN (supports DICOM/HL7 data transfer).
• Upgradability: Future-proof via Living Technology™ software platform for long-term performance updates.

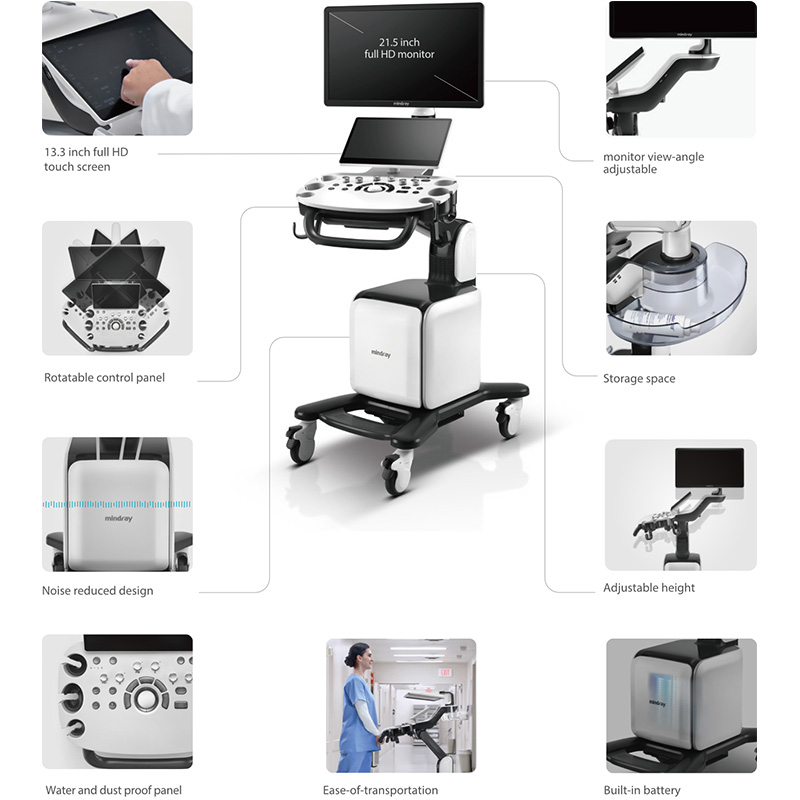

4. Ergonomic Design

• Adjustable Control Panel: Height/angle-tunable with shortcut keys and trackball to reduce operator fatigue.
• Hygiene Features: IPX4-rated waterproof control panel for easy disinfection.
• Cable Management: Magnetic cable organizers for a clutter-free workspace.

Clinical Function Parameters

1. Specialty Applications

• Cardiovascular:
  • Automatic carotid IMT measurement, mitral valve regurgitation assessment, tissue Doppler imaging (TDI).
  • Stress echo presets for load test analysis.
• OB/GYN:
  • Fetal NT measurement, intelligent 3D/4D volume rendering (e.g., fetal facial reconstruction).
  • Multi-planar reconstruction (MPR) and volume contrast imaging (VOCAL).
• Abdominal & Small Organs:
  • Liver fibrosis assessment (Smart HRI), thyroid nodule analysis (Smart Thyroid).
  • Contrast harmonic imaging (CHI) and ultrasound-guided puncture enhancement.

2. Smart Assistance Tools

• iScape Scanning Guide: Real-time path guidance to simplify operations.
• Smart Vue Auto-Plane Recognition: Automatically optimizes standard scan planes for reduced manual adjustment.
• Auto-Measurement: Includes EF calculation, vessel diameter measurement, fetal biometry, and more.

Certification & Warranty

1. Regulatory Compliance

• CE Certified: Meets EU Medical Device Directive (MDD).
• FDA Cleared: Approved by the U.S. Food and Drug Administration (model-specific confirmation required).

2. Warranty & Support

• 5-Year Standard Warranty: Covers Host (main unit), probes, and software updates, including on-site service.
• Clinical Support: Provides standardized protocols (iWorks) and a case library to accelerate workflow mastery.
