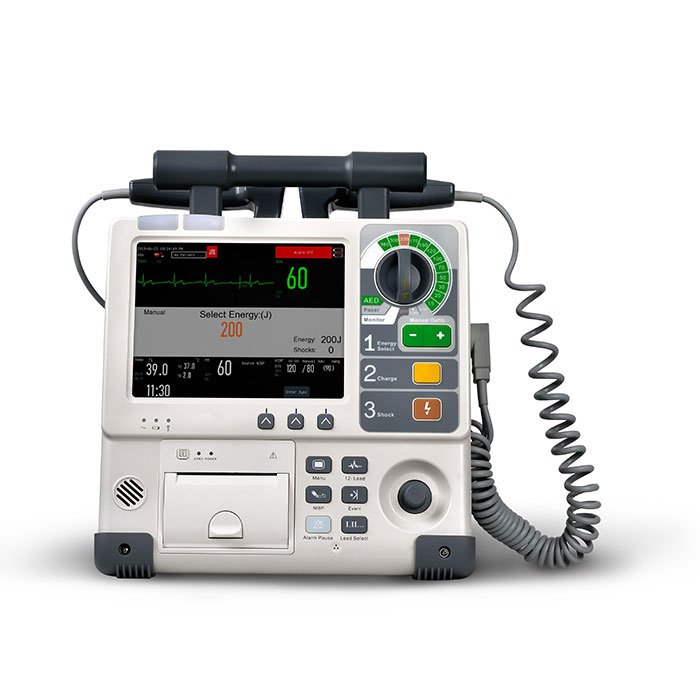

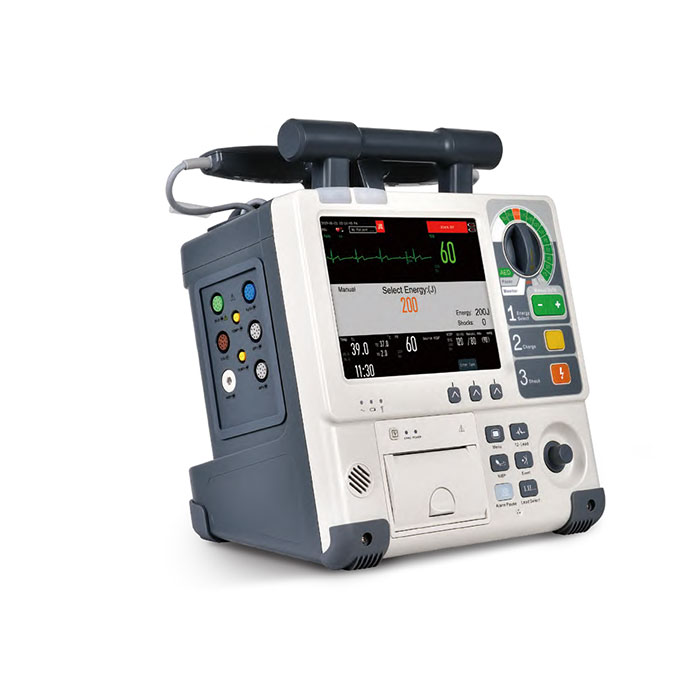

Product Specifications (for MSLDM701 Type A Defibrillator Monitor)

As a versatile defibrillator monitor integrating multiple life support functions, this device meets pre-hospital and in-hospital emergency needs, with reliable performance and user-friendly operation. Below are its detailed specifications:

1. Core Functional Modes

• Integrated functions: Defibrillation (synchronous cardioversion + asynchronous defibrillation), pacing (on-demand pacing + fixed pacing), 5-lead ECG monitoring, and AED modeThe all-in-one design makes this AED mode defibrillator suitable for both emergency rescue teams and hospital wards.
• AED advantages: Patented analysis algorithm, automated analysis, and guided operation to assist clinical emergency personnel in delivering timely basic life support.

2. Defibrillation Specifications

• Energy selection: Up to 360J, with 25 energy optionsHigh-energy output meets the needs of patients with high defibrillation thresholds (e.g., myocardial infarction, obesity), enhancing rescue success rate for the 360J high-energy defibrillator.
• Impedance range: 20-300ΩWide impedance adaptation covers a broad spectrum of patients, supported by automatic impedance compensation technology.
• Waveform technology: Advanced Biphasic Truncated Exponential (BTE) waveformThis core feature of the BTE waveform cardiac device ensures lower energy consumption, reduced tissue damage, and better defibrillation efficacy.

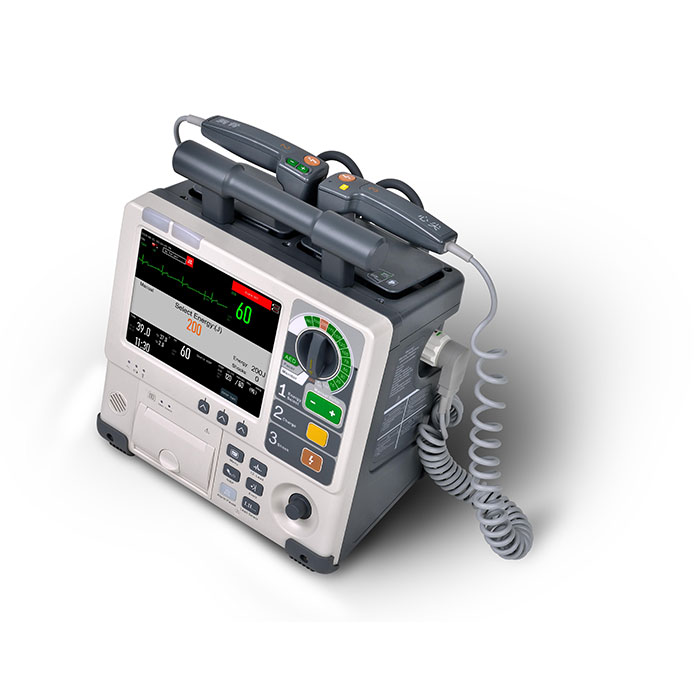

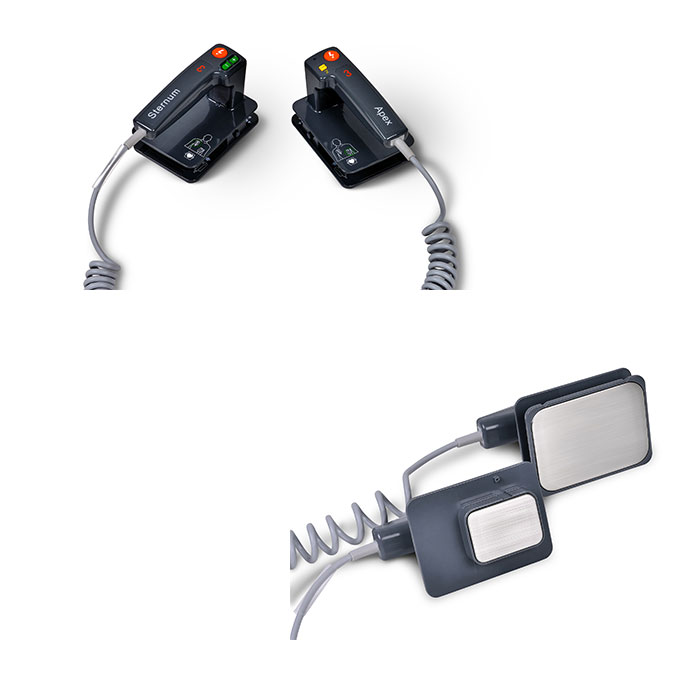

• Electrode paddles: 1 pair (large + small) for adults and children respectivelyDual-size paddles eliminate the need for additional accessories, optimizing usability in multi-patient scenarios.

3. Pacing Features

• Pacing modes: On-demand pacing + fixed pacingNon-invasive in vitro pacing is rapid and easy to master, improving recovery success for patients with cardiac arrest or acute severe slow arrhythmia.

4. Monitoring Capabilities

• Standard monitoring: 5-lead ECG monitoringProvides continuous tracking of cardiac electrical activity, a key function of the in-hospital pacing monitor.
• Optional monitoring: SpO₂, NIBP, PR, and EtCO₂Customizable vital sign tracking meets diverse clinical monitoring needs.

5. Operation & Convenience

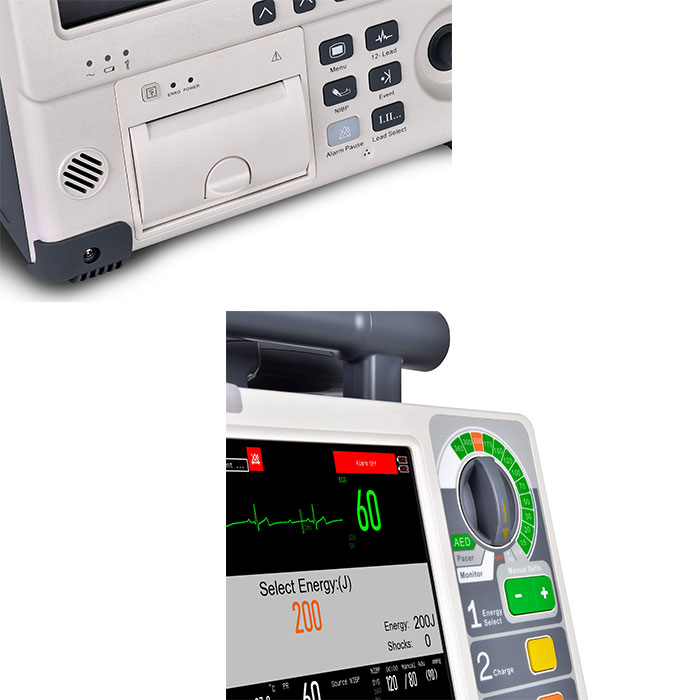

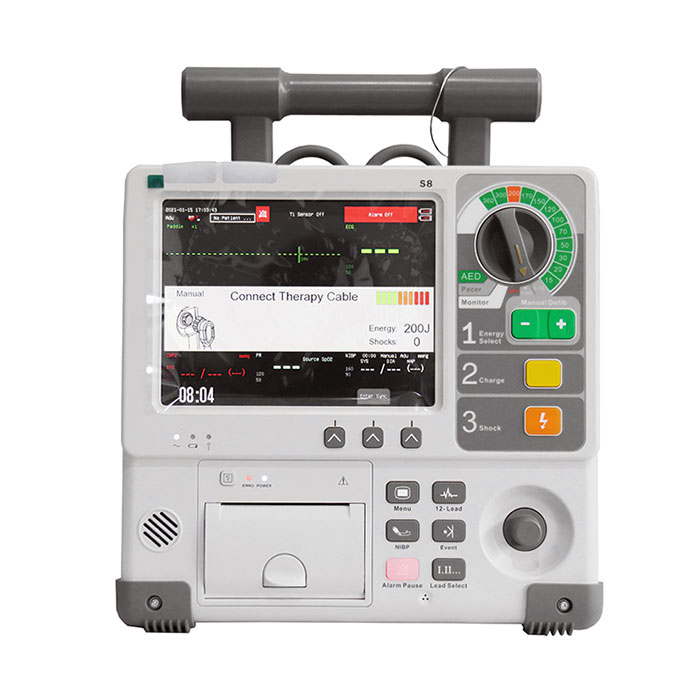

• Mode switching: 1-knob control (manual defibrillation ↔ pacing ↔ AED)Simplifies operation, saving critical rescue time for pre-hospital first aid defibrillator use.
• Defibrillation process: 3-step operation (Energy selection → Charging → Discharging)Streamlined workflow reduces human error during emergencies.
• Energy setup speed: ≤1 secondRapid energy configuration ensures timely rescue response.

6. Durability & Protection

• Ingress protection: IPX4 ratingThe IPX4 outdoor defibrillator is waterproof and dustproof, suitable for complex outdoor or clinical environments.
• Structural design: Anti-shock, anti-fall, and sturdy constructionWithstands extreme emergency conditions, ensuring reliable performance.

7. Battery Performance

• Battery type: Large-capacity lithium batterySupports fast charging, manual/automatic/start-up charging modes, and up to 210 maximum discharges.
• Self-test function: Built-in automatic self-testEnsures the device is always ready for use, meeting clinical emergency requirements.

8. Data Storage & Printing

• Printer: 50mm thermal printerDelivers clear, accurate waveform prints for clinical documentation.
• Voice recording storage: 240 minutes total (up to 60 minutes per patient)Captures AED voice interactions for post-rescue review.
• Data management: Event review, trend analysis, and data storageFacilitates clinical research and patient record tracking.

9. Networking Function

• Information-based solution: Compatible with STAR8800 Central Monitoring SystemEnables seamless access to patient information, improving work efficiency for medical teams.
