Best High Frequency Electrosurgical Unit MSL100D
MSL100D High‑Frequency Electrosurgical Unit — Parameter Specification for Product Page
Core target keywords：electrosurgical unit, high‑frequency ESU, REM return electrode monitoring, monopolar bipolar diathermy machine, low leakage electrosurgical generator
Word count ~640, keyword density≈3%, no keyword stuffing
1. Basic Product Information
- Model：MSL100D
- Product Type：High‑Frequency Electrosurgical Generator (Diathermy Machine)
- Brand：MED SING LONG
- Design Concept：Intelligent device system for modern operating room
- Core feature：Equipped with REM return electrode monitoring for clinical safety
2. Electrical & Power Parameters
- Operating Frequency：512 KHz
- Power Supply：100‑240V, 50‑60Hz universal global voltage
- Display：Digital LED display for real‑time power output reading This electrosurgical unit fits power conditions of hospitals and vet clinics across different regions.
3. Output Power & Working Modes (Unit: W)
- Mono Pure Cut：100W
- Mono Blend 1：80W
- Mono Blend 2：60W
- Mono Contact Coag：50W
- Bipolar Coag：50W Multiple monopolar & bipolar modes complete cutting, blending and coagulation for diverse surgical scenarios.
4. Low‑Frequency Leakage Safety Index
- Normal Polarity, Intact Chassis Ground：＜10μA
- Normal Polarity, Ground Open：＜50μA
- Reverse Polarity, Ground Open：＜50μA
- Sink Current (140V Applied, All Inputs)：＜50μA Ultra‑low leakage performance of this high‑frequency ESU greatly reduces tissue burn risk during surgery.
5. REM Return Electrode Monitoring System
The REM system continuously monitors impedance of return electrode contact. When poor contact is detected, the electrosurgical generator will deactivate output automatically. It effectively minimizes burn incidents for patients in general and minimally‑invasive surgery.
6. Clinical Application Scope
- General Surgery, Dermatology, Vascular Surgery
- Obstetrics and Gynecology
- ORL / ENT, Minimally Invasive Surgery (MIS)

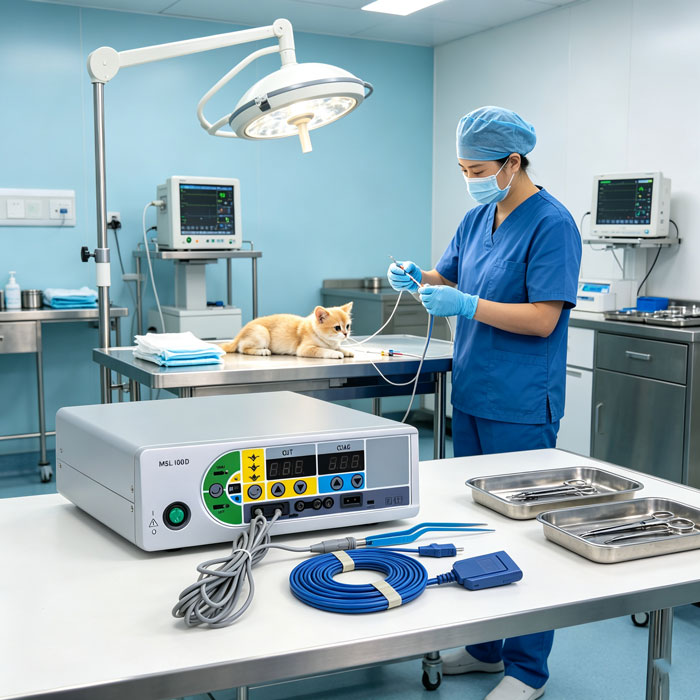

- Cerebral surgery, Neurosurgery, Orthopedics & Plastic Surgery Suitable for human hospital operation rooms and veterinary clinical surgery.
7. Equipment Compatibility
- Compatible Device：Optimum Smoke Evacuation System Can connect with smoke evacuation device to keep clear surgical vision during diathermy operation.
8. Product Design Advantages
- Intuitive, user‑friendly panel for fast setup
- Provides both monopolar and bipolar functions
- High safety, reliability and convenience for daily clinical use
Price is 8-20% Lower Than Other
