Specifications

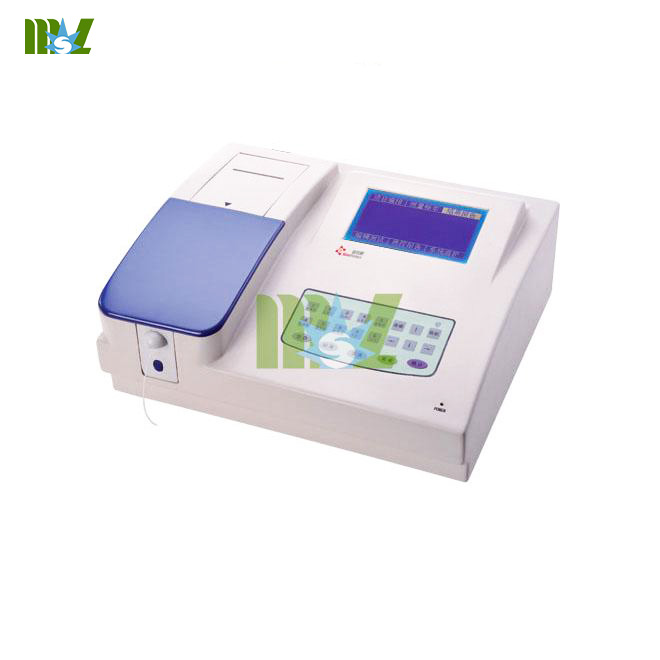

Semi-automatic chemistry analyzer
1. veterinary chemistry analyzer
2. human chemistry analyzer
3. biochemistry analyzer

Semi-automatic chemistry analyzer

Features:

1. Analytical modes: kinetic, fixed time, end-point, absorbance

2. Wavelengths from 300-800nm,8 standard filters:340,380,405,492,510,546,578,620nm, 1 more filter optional

3. Up to255 tests pre-programmed

4. Large color LCD display

5. Lamp saving feature, longer lamp life

6. All testing result stored power off, Memory for 10,000 sample result

7. RS232 interface, PC connecting

8. Internal thermal-sensitive printer, multi-forms in result output, including patient comprehensive report

9. Open reagents

Specification:

Test project:≥200

Wavelengths:

Wavelength precision:±2nm

Flow cell: 32uL, quartz glass

Liquid volume: 200-3000uL

Lamp: Philips 6V 1OW

Measurement range: 0-3.000Abs

Resolution: 0.001Abs (display), 0.0001Abs (calculation)

Temperature controller:Peltier 37°C,30°C,25°C±0.1°C

Carry over:1%

Repeatability:<1%

Printer: Internal thermal-sensitive printer, 58mm paper width

Display: 240*128LCD

Data communication: RS-232 serial cable

Power supply: 220VAC 15% or 110VAC 15%50-60He 100w

Dimension: 380mm (L) 330(W) 150mm (H)

Weight: 8Kg
