automatic film processor x ray - MSLXF02

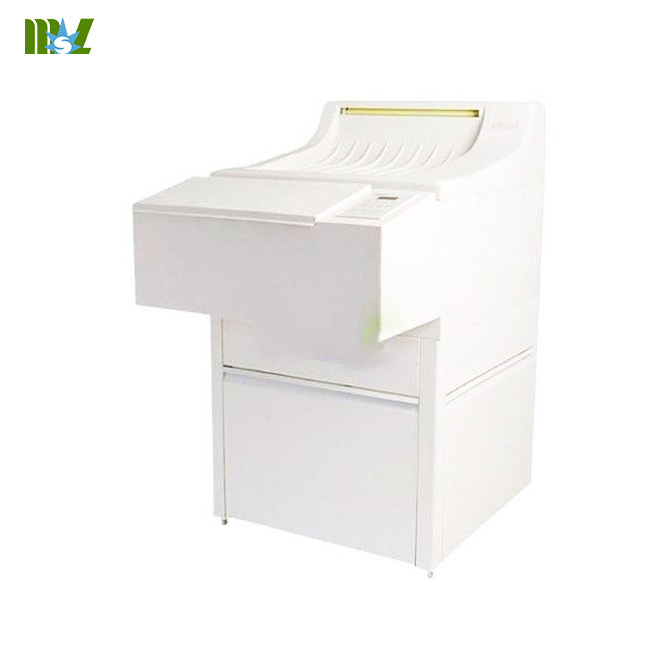

1 Automatic X-ray film processor

2.Power:200V/50Hz/8.8A 2000W

3. x-ray film processor

《The introdution of x-ray machine》- Have you ever heard of the story about the discovery of X-ray? How was X-ray discovered? Could you figure out some uses of X-ray machine?...

Product feature

Digital display to set the parameters and actual data. Touch-sensitive buttons make adjustments more easily set parameters simple.

In contrast, fixing, washing, unique among the flume design, and the developer will not only reduce across-contamination between the solution to enhance the use of chemical time. Deep trench design, the film also make washing a cleaner, richer level film, video effects better.

Processor speed, rinse 220 (theoretical impulse) pieces for 14”×17”per hour. Any hospital can fully meet the needs of the irrigation rate.

With high-intensity-type roll axis, ensuring safe delivery film, and to convenient day-to-day cleaning. Application of electronic temperature control and the jet wind road technology to ensure not air drying film.

Technology parameters

1.Rinse width:minimun:3”×6”,maximum:14”×17”

2. Process time: 90~300s (full program), 25~70s (develop time)

3.Developer temperature:20°C~40°C(±0.3)(adjust)

4.Wash quantity:220 paper per hour,(14”×17”),280paper per hour(10”×12”)

5.Dry temperature: 20°C~70°C(adjust)

6. Channel volume: 12.5L for develop, fixation and wash each one.

7. Washing control: to enter water 2~8L/min automatically.

8. Replenishment: 50~500ml/sq.m.each time (automatically and manually)

9. Power:200V/50Hz/8.8A 2000W

Unit packing size: 1050*720*1230(mm)

Pcs/Carton: 1pcs

G.W:120KG
