Quick Details

• Properties: Medical X-ray Equipments & Accessories
• Brand Name: MSL
• Model Number: MSLXF06
• Place of Origin: Guangdong, China (Mainland)
• Certificates: CE

Packaging & Delivery

Specifications

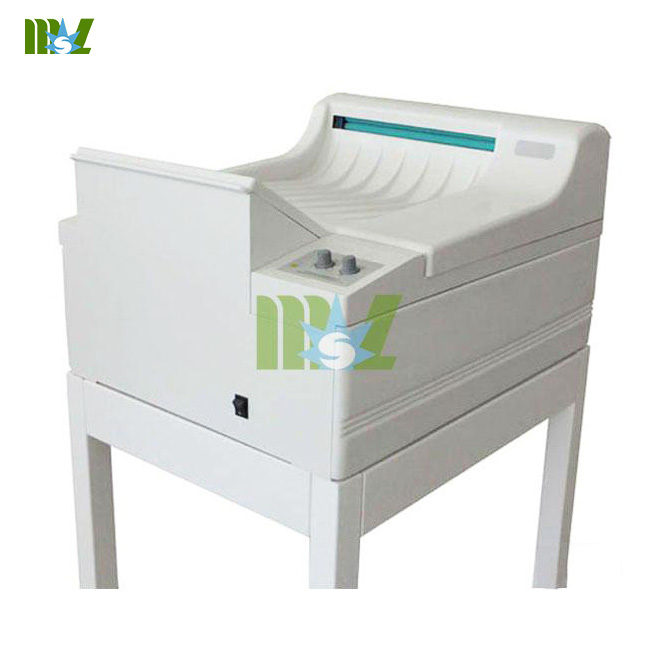

medical x ray film processor MSLXF06

1,X-ray film processor

2,CE Approval

3,develop machine

Features:

A) Operation conditions:

1.Voltage:220V±10%,50/60Hz, 8.8A single-phase

2. Ambient temperature : 5~25

3. Ambient humidity: less than 60%

4. Power of the whole machine: less than 2kw

B) Technical specifications:

Type desktop /Console model

1. Rinse width: 3"*6"-14"*17"

2. Process time: 105/135/165s

3. Develop time: 25/35/45s

4. Film feed mode: U-slot

5. Film sensing mode: micro switch

6. Develop temperature: Adjustble28 -37degree (plus or minus0.3 )

7. Developing Capacity: 90p/h (14"*17"); 145p/h(10"*12")

8. Dryer temperature: 40-65degree

9. Channel volume: Develop\Fixer\Water\each 8.2litres

10. Washing Control: Water 2~8L/min when rinsh

11. Water developing control mode: solenoid vavle control

12. Anti-oxidation function:60mins interval

13. Anti-crystallization function: 20mins interval

14. Replenishment: Auto. /manual 20~200ml/for 0.5s. Q. M

C) Packing details:

1. Wooden case

2. The packing out-size(L*W*H/mm):1130*830*750

3. The gross weight of the wooden case:110KG
