HKECG0102 portable three channel ECG
1. digital three channel ECG machine
2. three channel ECG
3. medical ecg

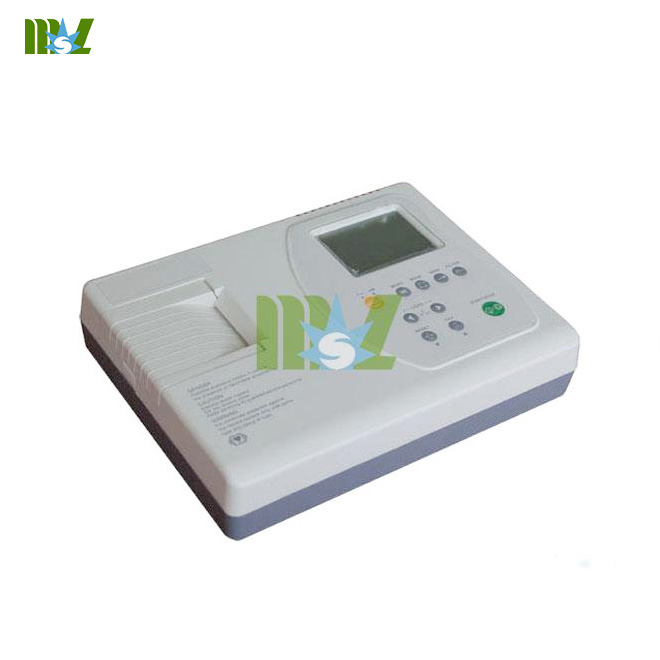

Digital 3 channel ecg machine-MSLEC11

digital ecg machine

Dimension: 300mm*230mm*61mm

Packing: 375mm*295mm*195mm

Weight:4.5kg(gross); 3.57kg(net)

Three channel with interpretive

Build in rechargeable Li battery

Chinese/English language

Simultaneous 12 leads

320X240 graphic LCD, 3.8 inch screen

Paper size: 63mmX20/30m

Built in RS232 interface (USB is optional)

128 patients save/copy/communication

Specification:

Items specification

Lead standard 12 leads

lead acquisition synchronously 12 leads

Data acquisition 18bit/1000Hz

Record mode Manual mode; AUTO1; AUTO2; AUTO3

Filter AC, EMG,Drift Fliter

CMRR ≥100dB(with AC filter)

Input circuit Floating; Protection circuit against Defibrillator effect

Input circuit current ≤0.1μA

Input Impedance ≥2.5MΩ

Patient current leakage <10μA

Calibrating voltage 1mV±2%

Voltage tolerance ±500mV

Time constant >3.2s

Frequency response 0.05 ~150Hz

Noise level ≤15μVp-p

Sensitivity valve ≤20μV

Inter-Channel Interference ≤0.5mm

Paper speed 25,50mm/s(±3%)

Sensitivity AUTO,2.5,5,10,20mm/mV

Recording mode Thermal Array printing

Paper specification 63mmx30m,roll

LCD display .320x240 graphic LCD,display status&waveform.

Safety classification IEC60601-1 class I, type CF

Power supply AC :110V/220V/110~230V,50/60Hz±1Hz;30VA

DC :14.4V(2000mAh) rechargeable Li-ion battery

Fuse

AC extend T500mA/125V ¢5x20mm

AC extend T400mA/250V ¢5x20mm

AC extend T2.0A/250V ¢5x20mm
