Product Name:  Scanner à ultrasons au poignet pour usage humain ou vétérinaire-MSLVU12
Latest Price: US $ 700 - 1,000 / Set
Model No.:  800 -1100
Weight:  1 Kg
Minimum Order Quantity:  1 Set
Supply Ability:  300 Sets per Year
Payment Terms:  L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Size:
Color:
QTY:
Shino Hu

Quick Details

Weight: host 140g, probe 160g, battery 140g

Probe frequency: 3.5MHz/5MHz probe and can variable frequency;
Scanning depth: ≥180mm, 70mm/110mm/130mm/150mm/192mm adjustable;
Screen: 3.5 inches;



Packaging & Delivery

Packaging detail: Carton

Delivery detail: within 7-10 workdays after receipt of payment

Specifications

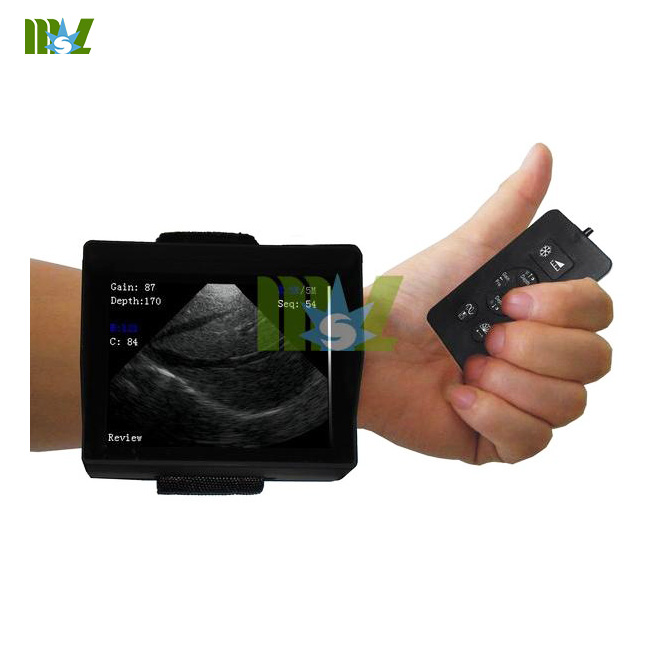

MSLVU12 Wrist Ultrasound Scanner is consist by host, probe, external battery, hand type keyboard. The host is only 140g ought is the lightest ultrasound scanner in the world.

Product Features:
Small portable, easy to carry,
Hand type keyboard, facilitate single hand operation;
Concise function, simple to operation;
Clear image, can be used to judgment pregnant, measuring fat;
With probe frequency conversion function, adapted to different inspection demand;
Battery can change easy, and for power dissipation is small so battery working time long;
Large capacity SD card for store image (optional);
With pseudo color display function;
Screen with a visor, better for work under sun.
wrist ultrasound

wrist ultrasound cover
Specifications:
Scanning system: sector sweep;
Probe frequency: 3.5MHz/5MHz probe and can variable frequency;
Scanning depth: ≥180mm, 70mm/110mm/130mm/150mm/192mm adjustable;
Screen: 3.5 inches;
Display mode: B
Image gray scale: 256 level
Pseudo color: 8 type
Image store: 512 frame(by SD card)
Measure: distance;
Input power: dc 5V (by external battery input)
Power consumption: 7W (probe run) /2.5W (probe stop)
Battery work time: 10 hours
Size: 92mm * 73mm * 42mm
Weight: host 140g, probe 160g, battery 140g
Probe Connector::1

wrist ultrasound scanner

Main Host  1 Unit
3.5MHz/5.0MHz Mechanical Sector Selectable  1 Pcs
Hand type keyboard  1 Pcs
External Battery and charger 1 Set
Arm bag (use for put battery and probe)  1 Pcs
Pocket (use for put host, gel)  1 Pcs(optional)
SD Store Card   1 Pcs

wrist ultrasound packing

wrist ultrasound box

wrist ultrasound box

wrist ultrasound scanner

wrist ultrasound image

ultrasound imaging

ultrasound image
