Product Name: Digital veterinary x-ray equipment-MSLVX02

Latest Price:

US $ 100- 11,000 / Set

Model No.:

Weight: Kg

Minimum Order Quantity: 1 Set

Supply Ability: 1000 Sets per month

Payment Terms: L/C, T/T, WESTERN UNION, PAYPAL, ESCROW, MONEYGRAM

Size:

Color:

QTY:

Shino Hu
Shino-Hu

Product Details

Inquire Now

Quick Details

TYPE: Digital veterinary x-ray equipment

BRAND NAME: MSL

MODEL NUMBER: MSLVX02

PLACE OF ORIGIN: CHINA (Mainland)

Packaging & Delivery

Packaging detail: Wooden case

Delivery detail: within 7-10 workdays after receipt of payment

Specifications

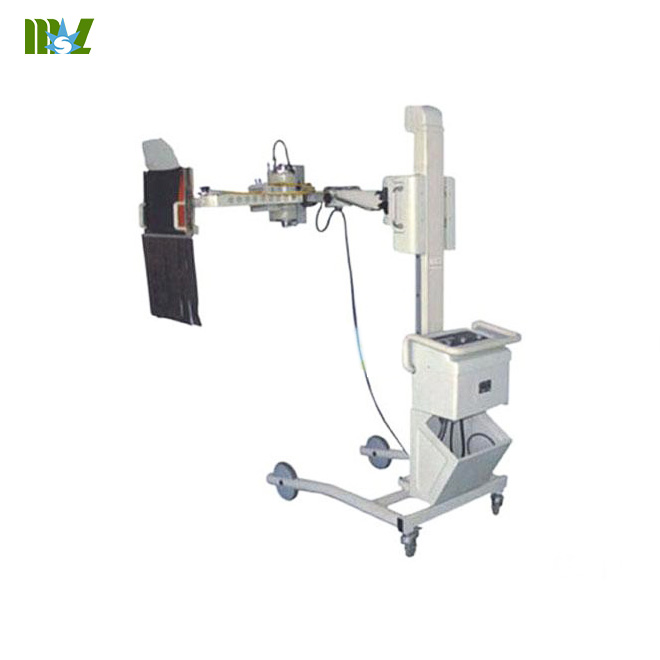

30mA Veterinary diagnostic X-ray equipment MSLVX02

• Max rated capability: 85kVp,30mA
• Power supply Voltage: 180-240V
• Power supply Frequency: 50Hz
• Power supply Resistance: not larger than 0.7Ω
• Fluorescent screen size: 280 mm*350 mm
• Nominal electric power: 3kW

Veterinary diagnostic X-ray equipment
Veterinary X-ray machine
diagnostic X-ray equipment
precise, safe, reliable flexible

1.Can be used in ward and emergency treatment room for fluoroscopy and radiography.
2.X-ray generator is combined.
3.Single focus, bridge rectification.
4. It is precise, safe, reliable and flexible.
5. A wireless remote control device (control range≥5 m) is used.

digital veterinary x-ray

Veterinary dental x ray equipment-MSLVX02

MAIN TECHNICAL PARAMETER

Power Supply	voltage	180~240V single-phase
	frequence	50Hz
	currency	Fluoroscopy 3A (continuous)
	currency	Radiograph 16A (momentary)
	Power lines internal resistance	≤0.7Ω
Maximum rated capacity		85kVp,30mA
Nominal electric power		3kW
Fluorescent screen size		280mm×350mm
Type of the X-ray tube	Model	XD1—3/100 stationary anode, single focus
	voltage	90kVp
	focus	2.3mm×2.3mm
	Filament heating specifications	If 4.5A Uf 7V
	length	160mm
Leakage current, grounding resistance, voltage insulation with the standard GB9706 ,1-95
The insulation performance of Transformer oil ,used by the combination head, may not be lower than 2.5mm/25000V
