Appareil de radiographie   nous vendons est vraiment une bonne affaire, et même avec une haute qualité. Vous pouvez également trouver d'autres équipements médicaux vétérinaires, tels que machine à rayons X  vétérinaire , scanner à ultrasons vétérinaire, appareil d'anesthésie vétérinaire, ventilateur vétérinaires ,table d'opération  vétérinaires ,analyseur vétérinaire,cage vétérinaire, ECG vétérinaire, moniteur patient vétérinaire.

Product Name:  Innovet veterinary x-ray machine - MSLVX12
Latest Price: US $ 105 - 10,000 / Set
Model No.:
Weight:   Kg
Minimum Order Quantity:  1 Set Set/Sets
Supply Ability:  1000 Sets per month
Payment Terms:  L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Size:
Color:
QTY:
Shino Hu

Quick Details



Type:  Veterinary x-ray machine

Brand Name:  MSL

Model Number:  MSLVX12

Feature:  6-segment LED display

Place of Origin:   China (Mainland)

Nominal output power: 4kW (100kV 40mA 0.1s)



Packaging & Delivery



Packaging Details:   Wooden case
Delivery Detail:   15 workdays after the receipt of payment



Specifications



4.0KW portable x-ray machine veterinary is mainly suitable for extremities check, especially for rescues or diagnosis.-MSLVX12

innovet x-ray

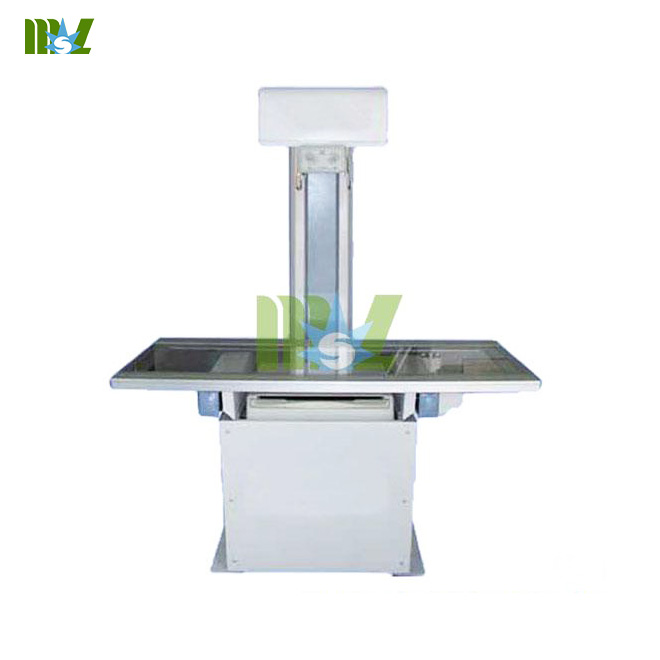

                                      Innovet veterinary x-ray machine- MSLVX12







1. Application

MSLVX12 4.0KW High frequency X ray Unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.





2. Features

1) Simple & light structure;

2) 6-segment LED display;

3) Anatomical memories for 24 selection program;

4) Double-loop (analog & digital) high precision control mode;

5) High precision control in tube voltage & current;

6) Self-protection & auto-diagnosis available when malfunction occurs.





3. Specifications





  Model

MSLVX12

Power supply

Voltage: AC220V± 10%, 50/60Hz ± 1Hz

Capacity: ≥5kVA;ternal resistance: ≤0.5Ω

Maximum output power

P =110kV×36mA=4kW

Nominal output power

100kV,40mA,0.1s,4kW

Frequency

≥40kHz

kV  adjustable range

40kV~110kV, continuous regulation, stepping 1kV

mA  adjustable range

36mA~70mA

mAs adjustable range

1mAs-200mAs.

Exposure time adjustable range

0.04s~3.2s

X ray tube

Focus: 0.6/1.5mm,

Thermal Capacity: 76kHU

Anatomical program

24 memory choices available

Accessories

Standard: manual switch,cable

Optional: mobile steel support.
