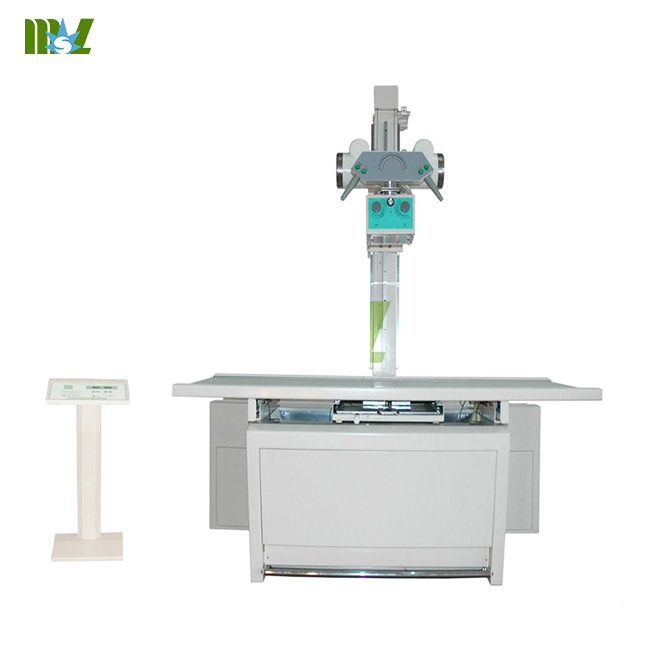

                                                                                Best price for veterinary machine-MSLVX13

Features

1. High-precision control in radiography time: Minimum exposure time is 0.0025 second, and quick radiography is accessible at any time without the influence of power phase, thus high-quality x-ray films are easily achieved

2 Self-protection, self-diagnosis: Once the malfunction happen, generator protection device, alarm, chain can be inquires the fault code, convenient maintenance treatment

3 Compact structure, Reduces installation space

Function:

Radiography, single-table single tube

1. Maximum output power

Intermittent mode: 100kV,200mA,20kW.

2. Adjustment range of tube current,tube voltage

tube current:Radiography 16mA~200mA.

tube voltage: Radiography 40kV~125 kV.

3. Exposure Time:photography0.0025s~6.4s step adjustable

4. Frequency operation≥30kHz

5. The condition of power

Power Voltage:220V±10%  or 110V ±10%

Internal resistance: less than 0.5Ω.

Technical index of main component

Frequency operation of high voltage x-ray generator≥30kHz.

Internal resistance: less than  0.5Ω.

Output power:20kW.

Output Voltage: Radiography: 40 kV~125kV, step 1kV;

Output Current::Radiography: 16mA~200mA,

Exposure Time: 0.0025s~6.4s

Display:digital pipe display photography voltage\ Photography current\ photography time\ mAS of photography

X-ray tube

Max tube voltage:125kV  Max tube current:400mA.

Small focus:1.0mm ;Big focus:2.0mm.

Speed of anode rotating:2800r/min

Anode heat capacity:140KHU

Radiography Bed

Integration of the bed with stand column without skyrail design.

Length*width*height of bed surface:1200mm×720mm

Distance from table surface to film:70mm

X-ray source component pillar:

Moving crosswise (left & right):+180°~-180°, deviation<±2°

Moving lengthways (along ground railway) ≥1200mm

Cassette with Grid

Fixed beam filtration grid density ≥ 40 lines / cm

Ray-filter grid:grid ratio 10:1
